Removal

WINDOW / GLASS: POWER WINDOW MASTER SWITCH: REMOVAL

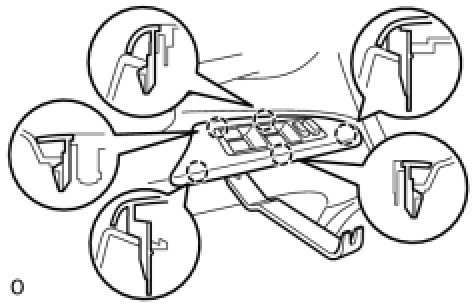

1. REMOVE FRONT UPPER ARMREST BASE PANEL LH
(a) Using a moulding remover, detach the 5 claws.
(b) Disconnect the connector and remove the armrest base panel.
2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY






(a) Remove the 3 screws and master switch.
