Installation

WINDOW / GLASS: REAR POWER WINDOW SWITCH: INSTALLATION

HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

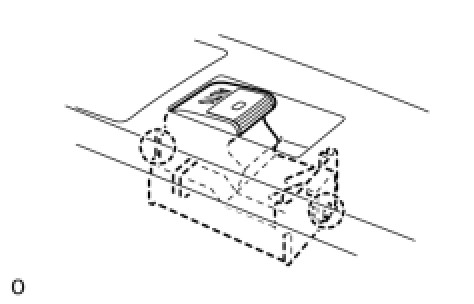

(a) Attach the 2 claws to install the regulator switch.
2. INSTALL REAR UPPER DOOR ARMREST BASE PANEL LH
(a) Connect the connector.

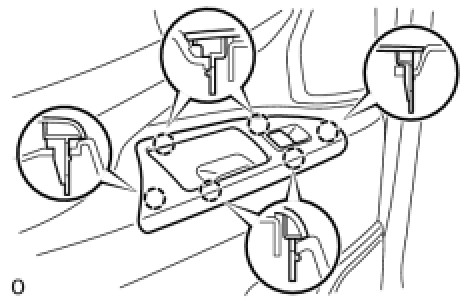

(b) Attach the 6 claws to install the armrest base panel.
