Removal

P310 HYBRID VEHICLE CONTROL: FRONT CIRCUIT BREAKER SENSOR:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE ENGINE ROOM SIDE LH COVER NO.2 Removal

3. REMOVE AIR CLEANER CAP W/INLET Removal

4. REMOVE CIRCUIT BREAKER SENSOR NO.1






(a) Move the outer section to the wire harness side as illustrated, then disconnect the circuit breaker sensor No.1.

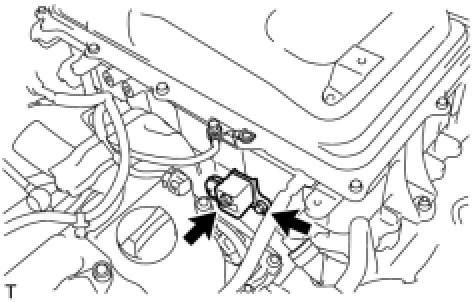

(b) Remove the 2 bolts and circuit breaker sensor No.1 from the w/ converter inverter assembly.
