Fuse: Application and ID

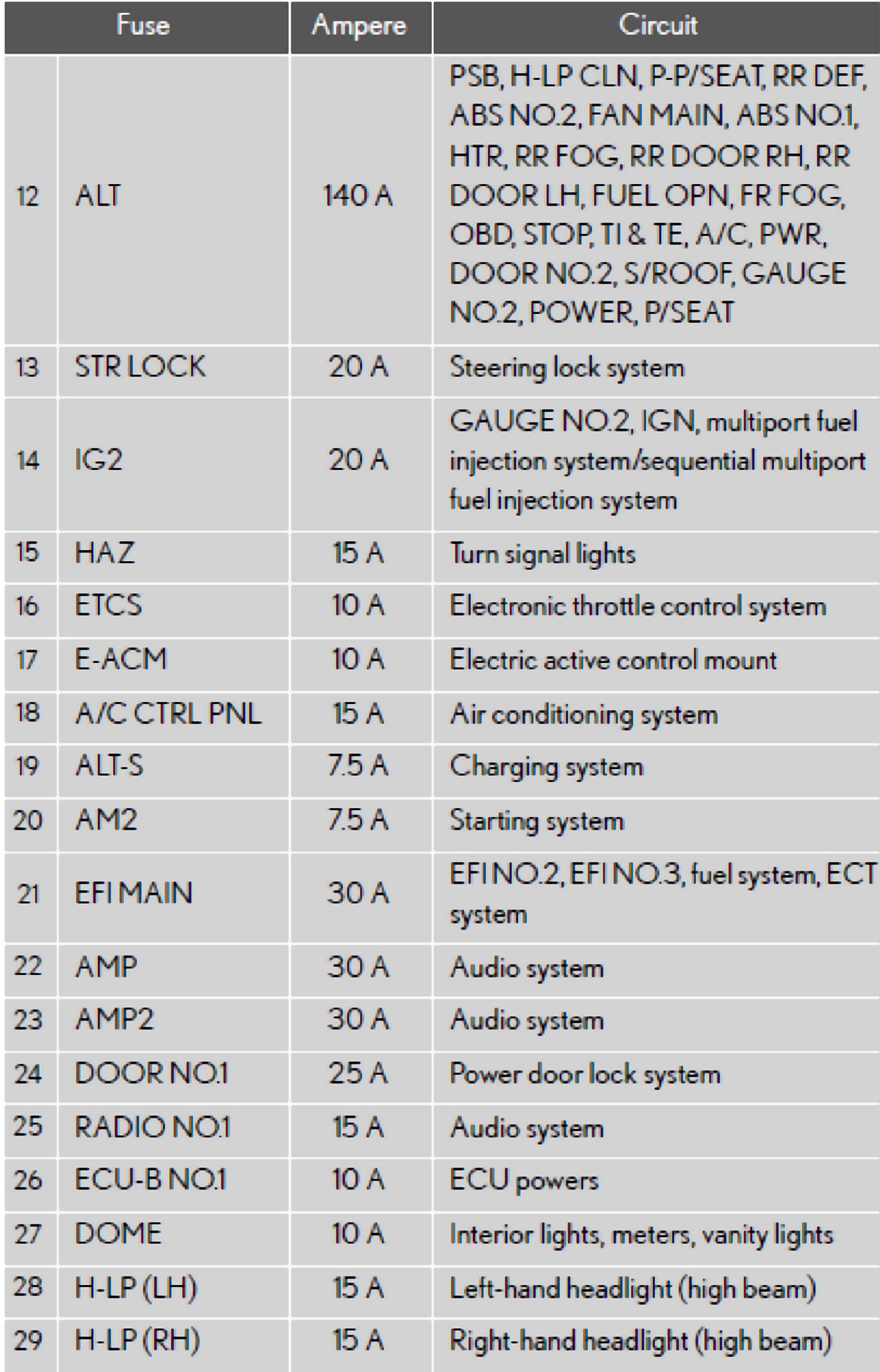

Fuse Layout and Amperage Ratings

Fuse Block Location - Engine Compartment:





Fuse Location - Engine Compartment:


















Fuse Block Location - Driver's Side Instrument Panel:





Fuse Location - Driver's Side Instrument Panel:
