BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: C1415: Rear Speed Sensor RH Output Malfunction

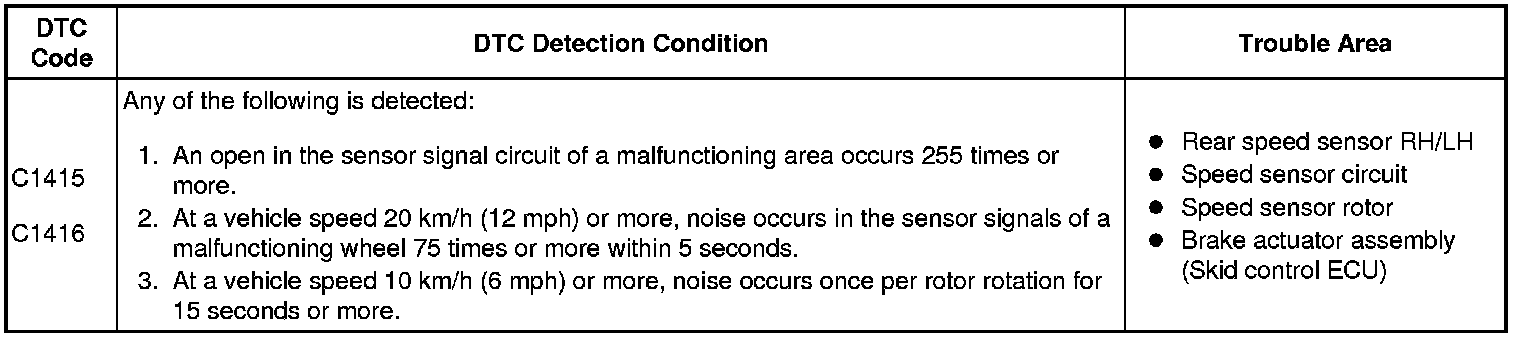

DTC C1415 - Rear Speed Sensor RH Output Malfunction
DTC C1416 - Rear Speed Sensor LH Output Malfunction
DESCRIPTION
The speed sensor detects the wheel speed and sends the appropriate signals to the skid control ECU. These signals are used for the ABS control system. This speed sensor contains a sensor IC, which consists of 2 MREs (Magnetic Resistance Elements). The speed sensor rotor, which consists of 48 sets of N and S poles arranged in a circle, is integrated with the inner race of the hub bearing.
To detect the rotation direction, the output waves are used to determine the relationship of the pulses that are generated by the 2 MREs. Upon receiving this signal, the sensor IC outputs a forward or backward waveform to the ECU.
HINT:
- DTC C1415 is for the rear speed sensor RH.
- DTC C1416 is for the rear speed sensor LH.

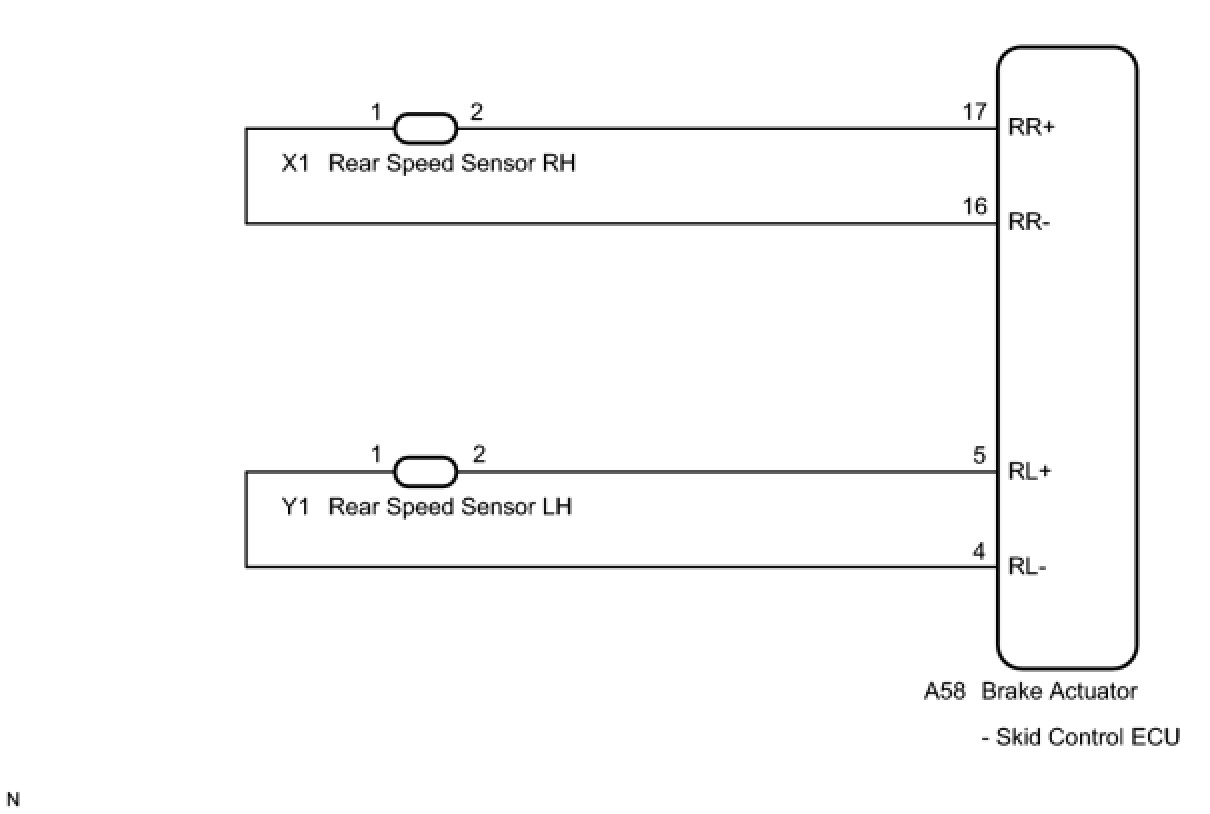

WIRING DIAGRAM
INSPECTION PROCEDURE
NOTE:
When replacing the brake actuator assembly, perform zero point calibration and store system information Programming and Relearning.
PROCEDURE
1. CHECK HARNESS AND CONNECTOR (MOMENTARY INTERRUPTION)

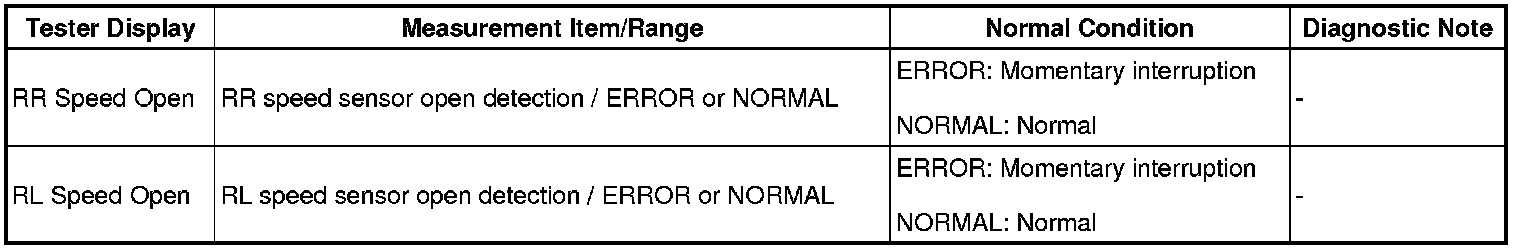

(a) Using the Techstream, check for any momentary interruption in the wire harness and connector corresponding to the DTC Check for Intermittent Problems.
ABS/VSC/TRAC
OK:
There are no momentary interruptions.
HINT:
Perform the above inspection before removing the sensor and connector.
NG -- CHECK REAR SPEED SENSOR INSTALLATION
OK -- Continue to next step.
2. READ VALUE USING TECHSTREAM (REAR SPEED SENSOR)
(a) Turn the engine switch off.
(b) Connect the Techstream to the DLC3.
(c) Start the engine.

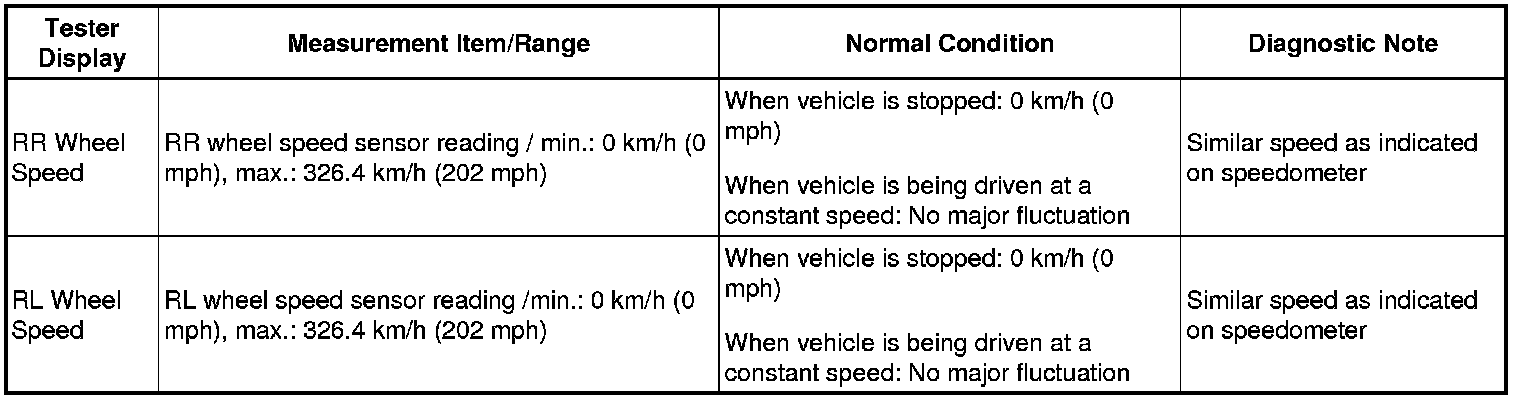

(d) Select the Data List on the Techstream Data List / Active Test.
ABS/VSC/TRAC
(e) Check the speed value output from the speed sensor displayed on the Techstream.
HINT:
Factors that affect the indicated vehicle speed include tire size, tire inflation, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart On-Vehicle Inspection.
OK:
The speed value output from the speed sensor displayed on the Techstream is the similar speed as indicated on the speedometer.
NG -- CHECK REAR SPEED SENSOR INSTALLATION
OK -- Continue to next step.
3. RECONFIRM DTC
(a) Turn the engine switch off.
(b) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.
(c) Start the engine.
(d) Drive the vehicle at a speed of 40 km/h (25 mph) or more for at least 60 seconds.
(e) Check if the same DTC is recorded Reading and Clearing Diagnostic Trouble Codes.

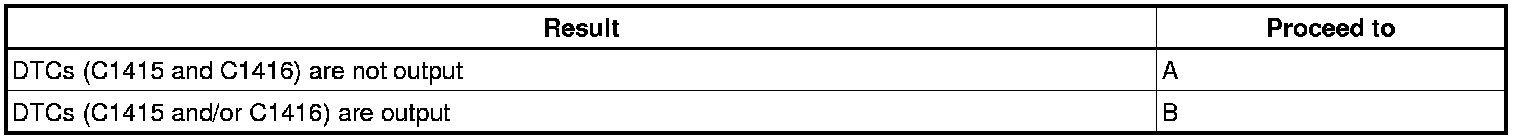

Result:
HINT:
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.
B -- REPLACE BRAKE ACTUATOR ASSEMBLY
A -- CHECK FOR INTERMITTENT PROBLEMS

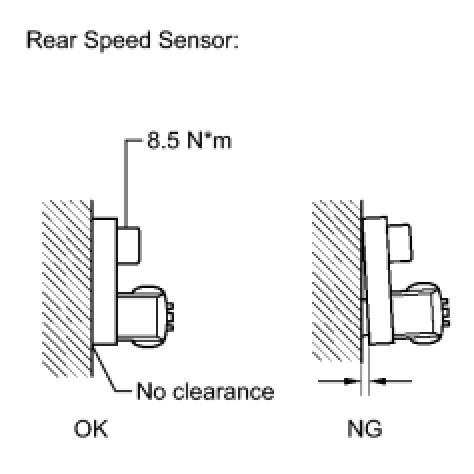

4. CHECK REAR SPEED SENSOR INSTALLATION
(a) Check the speed sensor installation.
OK:
There is no clearance between the sensor and the rear axle carrier.
The installation bolt is tightened properly.
Torque
8.5 N*m (87 kgf*cm, 75 in.*lbf)
NG -- INSTALL REAR SPEED SENSOR CORRECTLY
OK -- Continue to next step.
5. CHECK REAR SPEED SENSOR TIP
(a) Remove the rear speed sensor Removal.
(b) Check the speed sensor tip.
OK:
No scratches, oil, or foreign matter on the sensor tip.
NOTE:
Check the speed sensor signal after cleaning or replacement Test Mode Procedure.
NG -- CLEAN OR REPLACE REAR SPEED SENSOR
OK -- Continue to next step.
6. CHECK REAR SPEED SENSOR ROTOR
(a) Remove the rear speed sensor rotor Removal.
(b) Check the speed sensor rotor.
OK:
No scratches, oil, or foreign matter on the rotors.
NOTE:
Check the speed sensor signal after cleaning or replacement Test Mode Procedure.
HINT:
The rear speed sensor rotor is incorporated into the rear axle hub and bearing assembly.
If the rear speed sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.
NG -- CLEAN OR REPLACE REAR SPEED SENSOR ROTOR
OK -- Continue to next step.

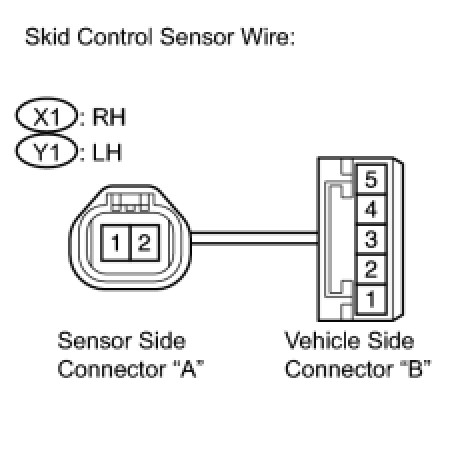

7. CHECK HARNESS AND CONNECTOR (SKID CONTROL SENSOR WIRE)
(a) Install the rear speed sensor and the rear speed sensor rotor.
(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.
(c) Disconnect the rear speed sensor connector and the skid control sensor wire.

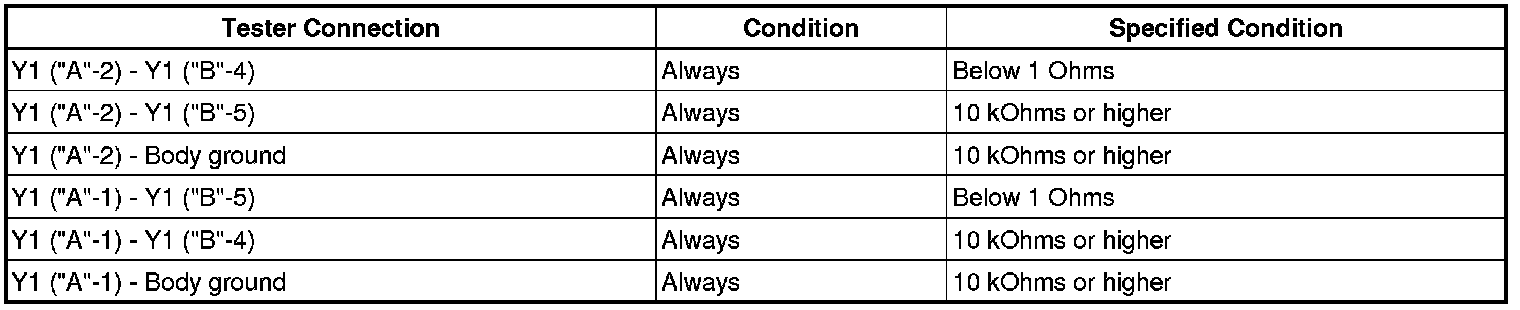

(d) Measure the resistance according to the value(s) in the table below.

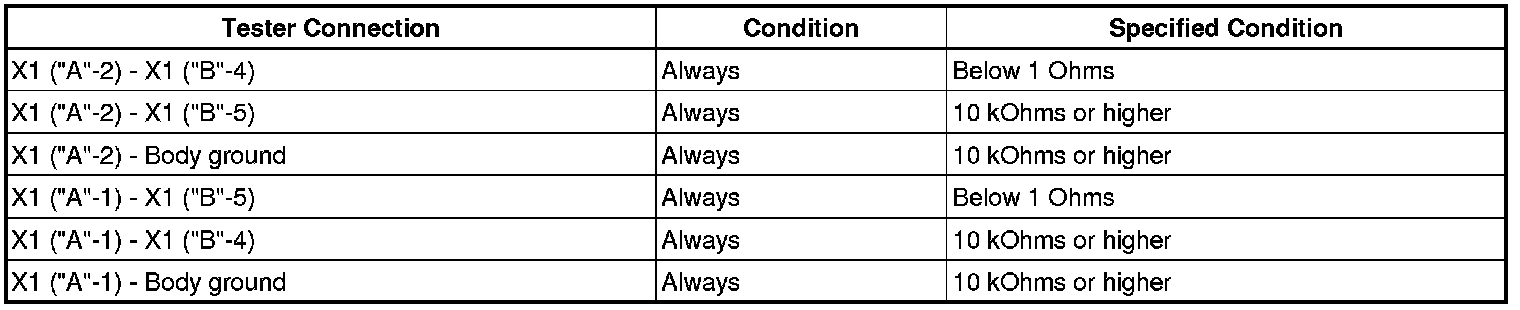

Standard Resistance:
for RH
for LH
NOTE:
Check the speed sensor signal after replacement Test Mode Procedure.
NG -- REPLACE SKID CONTROL SENSOR WIRE
OK -- Continue to next step.

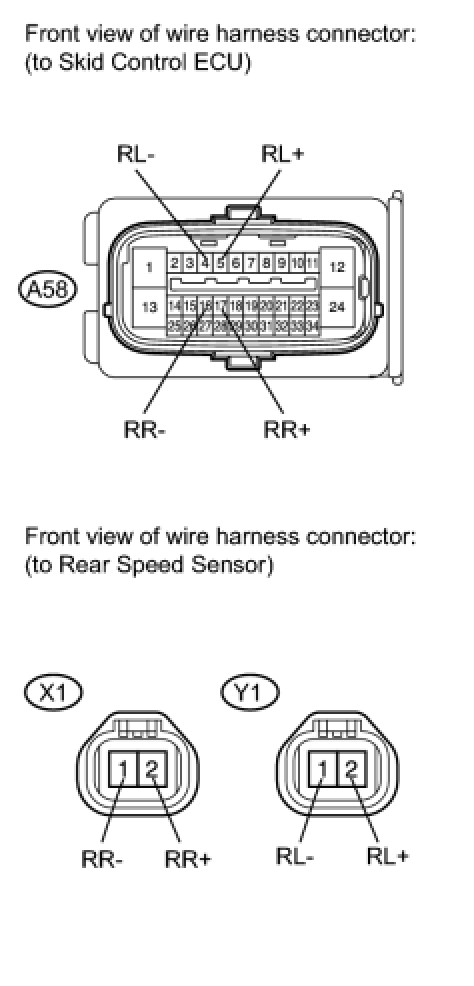

8. CHECK HARNESS AND CONNECTOR (SKID CONTROL ECU - REAR SPEED SENSOR)
(a) Reconnect the skid control sensor wire.
(b) Make sure that there is no looseness at the locking part and the connecting part of the connectors.
(c) Disconnect the skid control ECU connector.

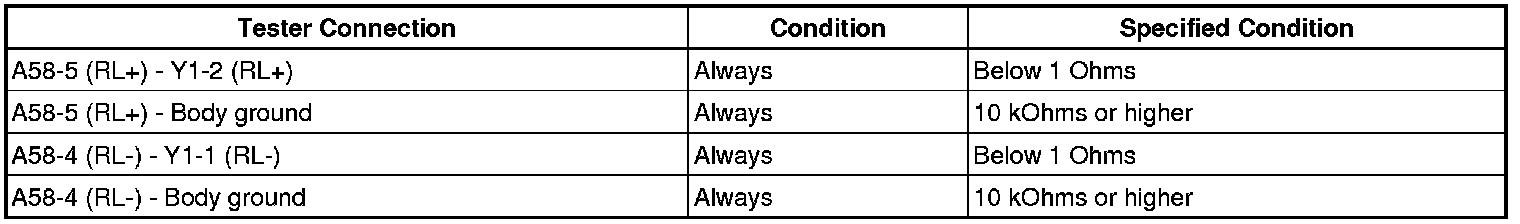

(d) Measure the resistance according to the value(s) in the table below.

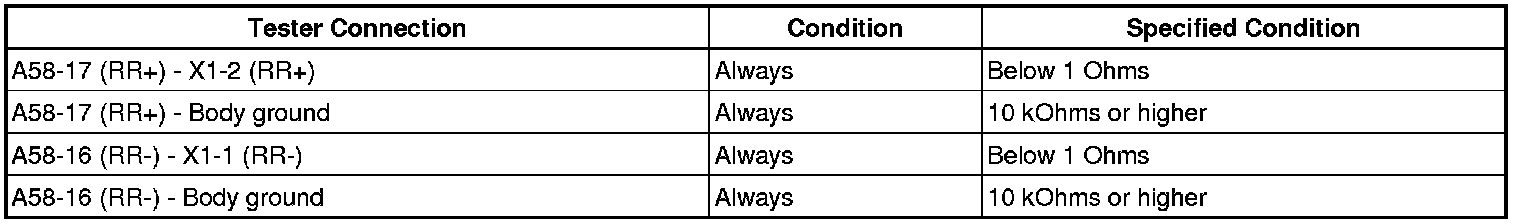

Standard Resistance:
for RH
for LH
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
9. INSPECT SKID CONTROL ECU (SENSOR INPUT)
(a) Reconnect the skid control ECU connector.
(b) Turn the engine switch on (IG).

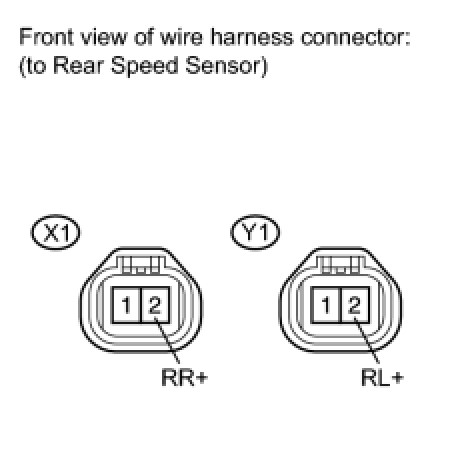

(c) Measure the voltage according to the value(s) in the table below.
Standard Voltage:
for RH
for LH
NOTE:
Check the speed sensor signal after replacement Test Mode Procedure.
HINT:
If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step Problem Symptoms Table.
NG -- REPLACE BRAKE ACTUATOR ASSEMBLY
OK -- REPLACE REAR SPEED SENSOR
