AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1451/51: Compressor Solenoid Circuit

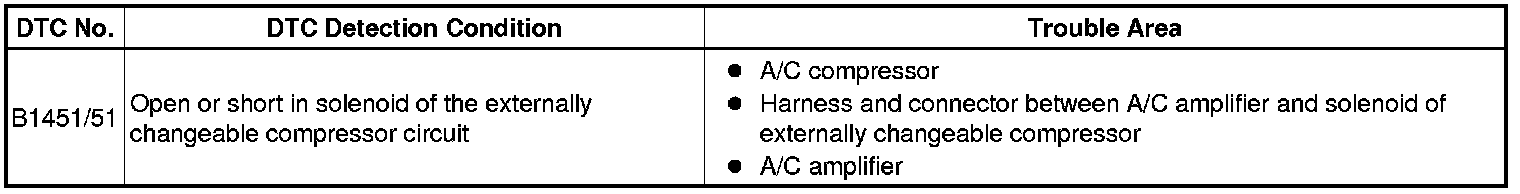

DTC B1451/51 - Compressor Solenoid Circuit

DESCRIPTION

In this circuit, the compressor receives a refrigerant compression demand signal from the air conditioning amplifier.
Based on this signal, the compressor changes the amount of compressor output.






WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT A/C COMPRESSOR




(a) Disconnect the A/C compressor connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPLACE A/C COMPRESSOR
OK -- Continue to next step.
2. CHECK WIRE HARNESS (A/C COMPRESSOR - BODY GROUND)




(a) Disconnect the A/C compressor connector.
(b) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. CHECK WIRE HARNESS (A/C COMPRESSOR - A/C AMPLIFIER)




(a) Disconnect the A/C compressor connector.
(b) Disconnect the A/C amplifier connector.
(c) Measure the resistance according to the value(s) in the table below.
Standard resistance:






Result:






C -- REPLACE AIR CONDITIONING AMPLIFIER
B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
A -- REPAIR OR REPLACE HARNESS OR CONNECTOR
