Power Source Circuit

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: Power Source Circuit

Power Source Circuit

DESCRIPTION

Certification ECU provides power for the door control receiver operation.

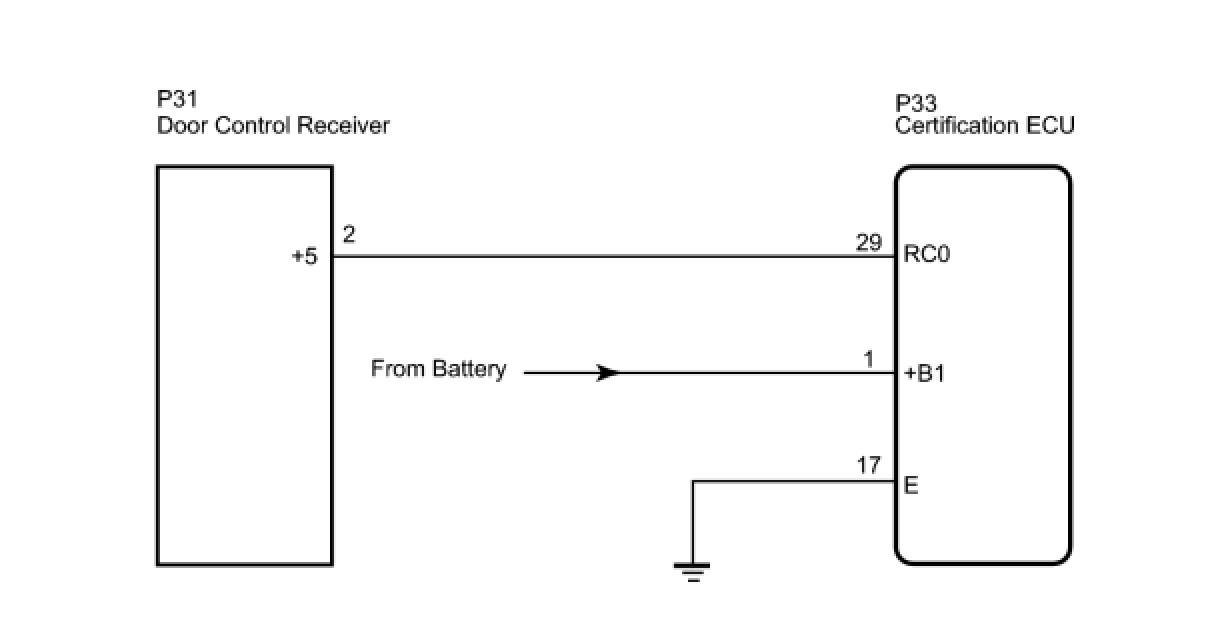

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - DOOR CONTROL RECEIVER)

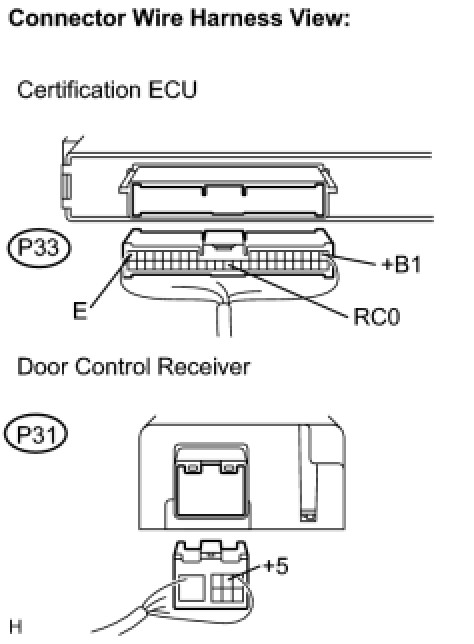

(a) Disconnect the P33 certification ECU connector and P31 door control receiver connector.
(b) Measure the voltage resistance according to the value(s) in the table below.
Standard:






NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. INSPECT CERTIFICATION ECU

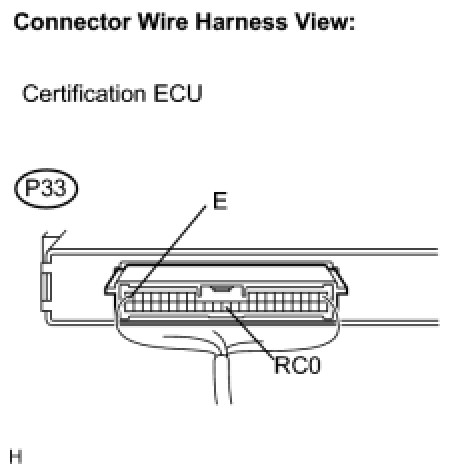

(a) Reconnect the P33 connector.

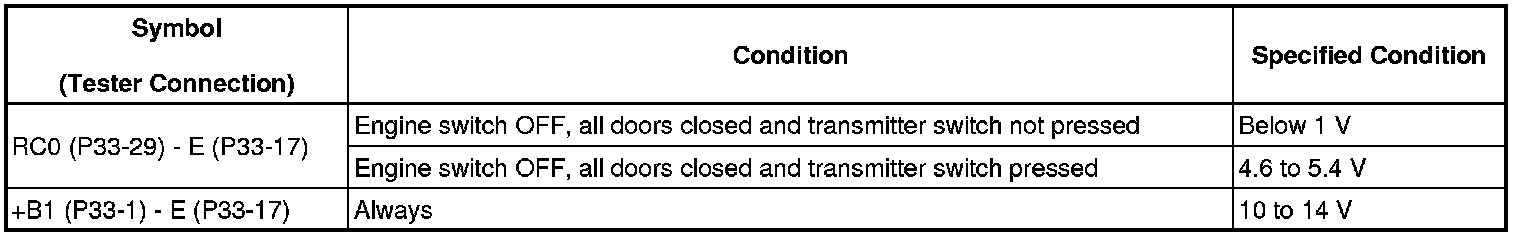

(b) Measure the voltage according to value(s) in the table below.
Standard voltage:






NG -- REPLACE CERTIFICATION ECU
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
