Bluetooth Tel Check Mode

NAVIGATION: NAVIGATION SYSTEM: BLUETOOTH TEL CHECK MODE

BLUETOOTH TEL CHECK MODE
HINT:
Illustration may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed area may not be shown exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE Reading and Clearing Diagnostic Trouble Codes
2. BLUETOOTH TEL CHECK

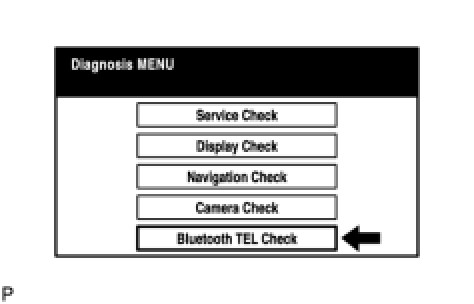

(a) Select "Bluetooth TEL Check" from the "Diagnosis MENU" screen.

3. BLUETOOTH CHECK





(a) Select "Bluetooth Check" from the "Bluetooth Handsfree Check Menu" screen.

(b) Select "Serial Communication Log" from the "Bluetooth Check Menu" screen








(1) The communication log data in the display ECU are displayed on this screen.
HINT:
The displayed data can be used as a reference.

(c) Select "Software Version" from the "Bluetooth Check Menu" screen.








(1) Check the software version of the Bluetooth module.





HINT:
This function is controlled by the built-in display ECU.

4. HANDSFREE VOICE QUALITY SET





(a) Select "Handsfree Voice Quality Set" from the "Bluetooth Handsfree Check Menu" screen.





(b) Check the handsfree voice level.





HINT:
This function is controlled by the built-in display ECU.
NOTE:
"Voice Quality Type" should not be changed.
