Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2009
>>
IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Bumper
>>
Front Bumper
>>
Service and Repair
>>
Components
Components

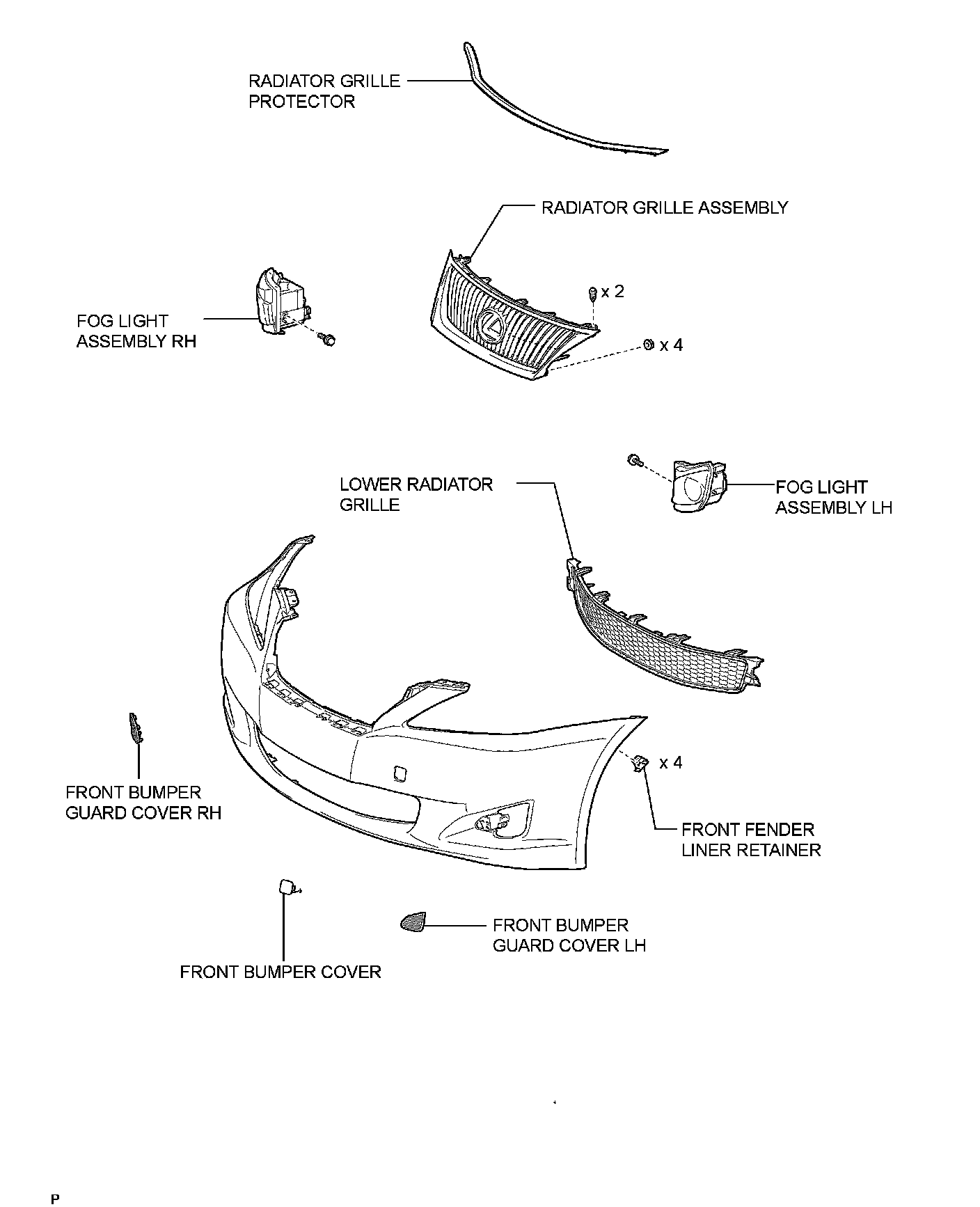

EXTERIOR: FRONT
BUMPER
: COMPONENTS
COMPONENTS
ILLUSTRATION
