IS 250 AWD V6-2.5L (4GR-FSE)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Interior Moulding / Trim
>>
Console
>>
Service and Repair
>>
Components
Components
INSTRUMENT PANEL: REAR
CONSOLE
BOX: COMPONENTS
COMPONENTS

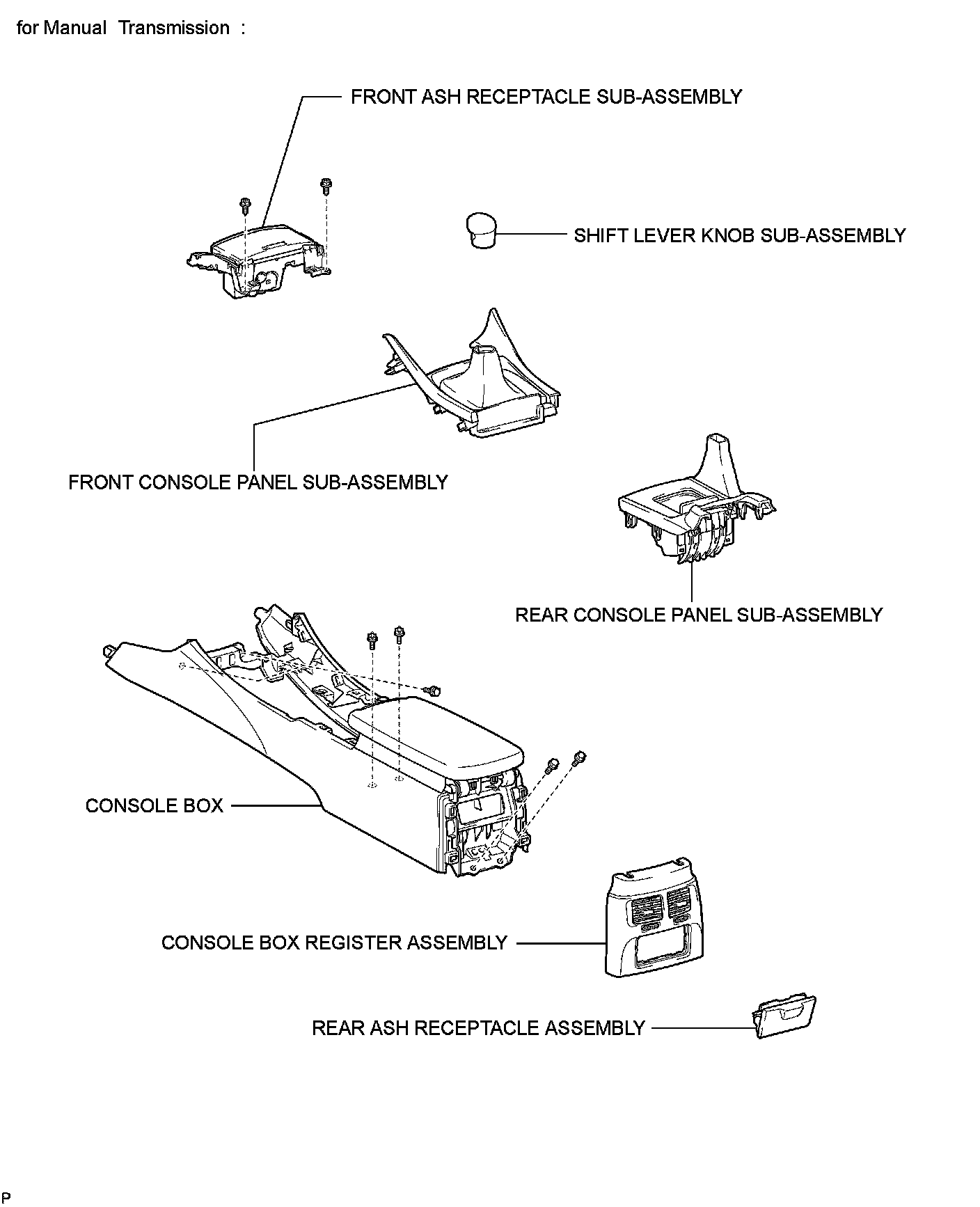

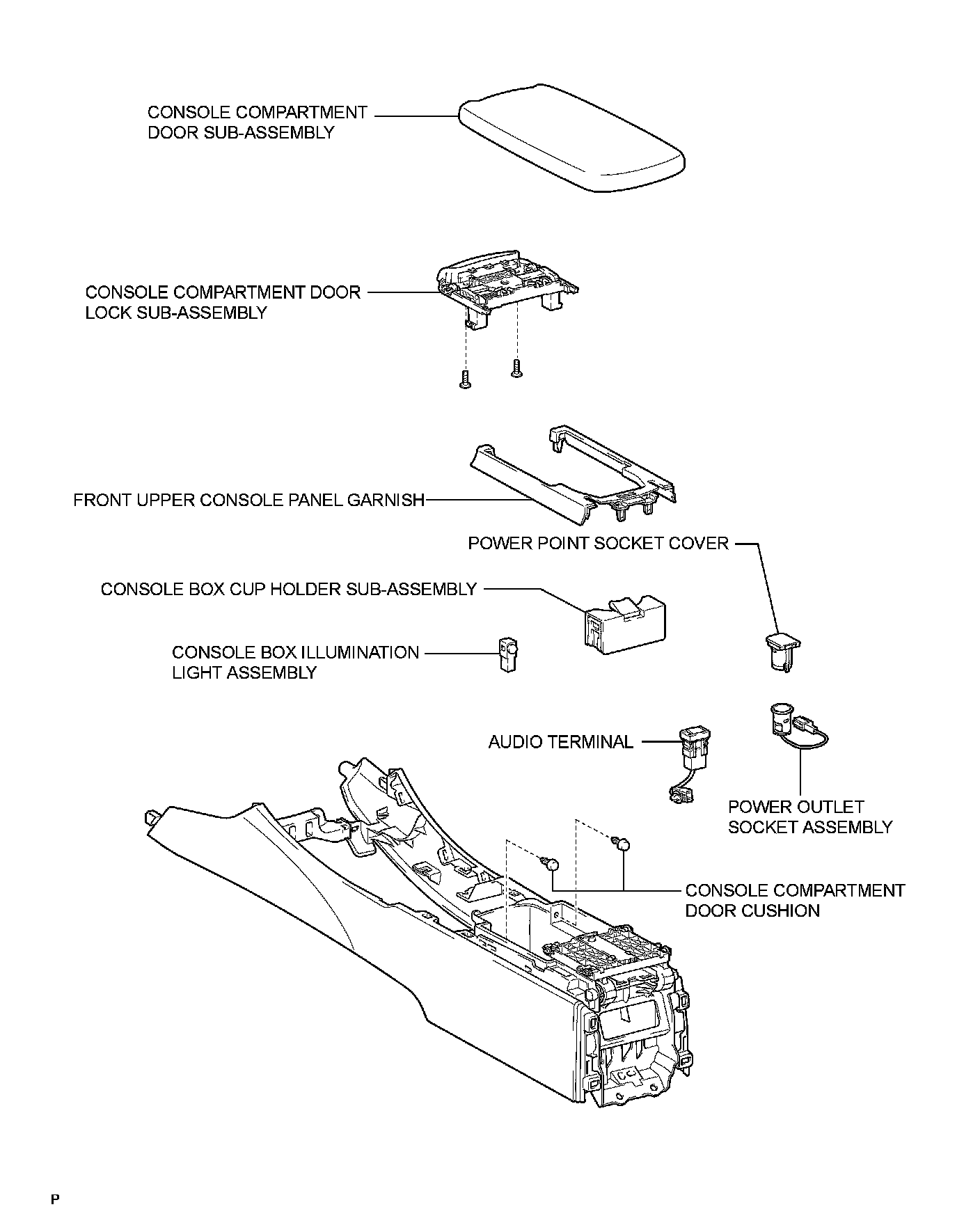

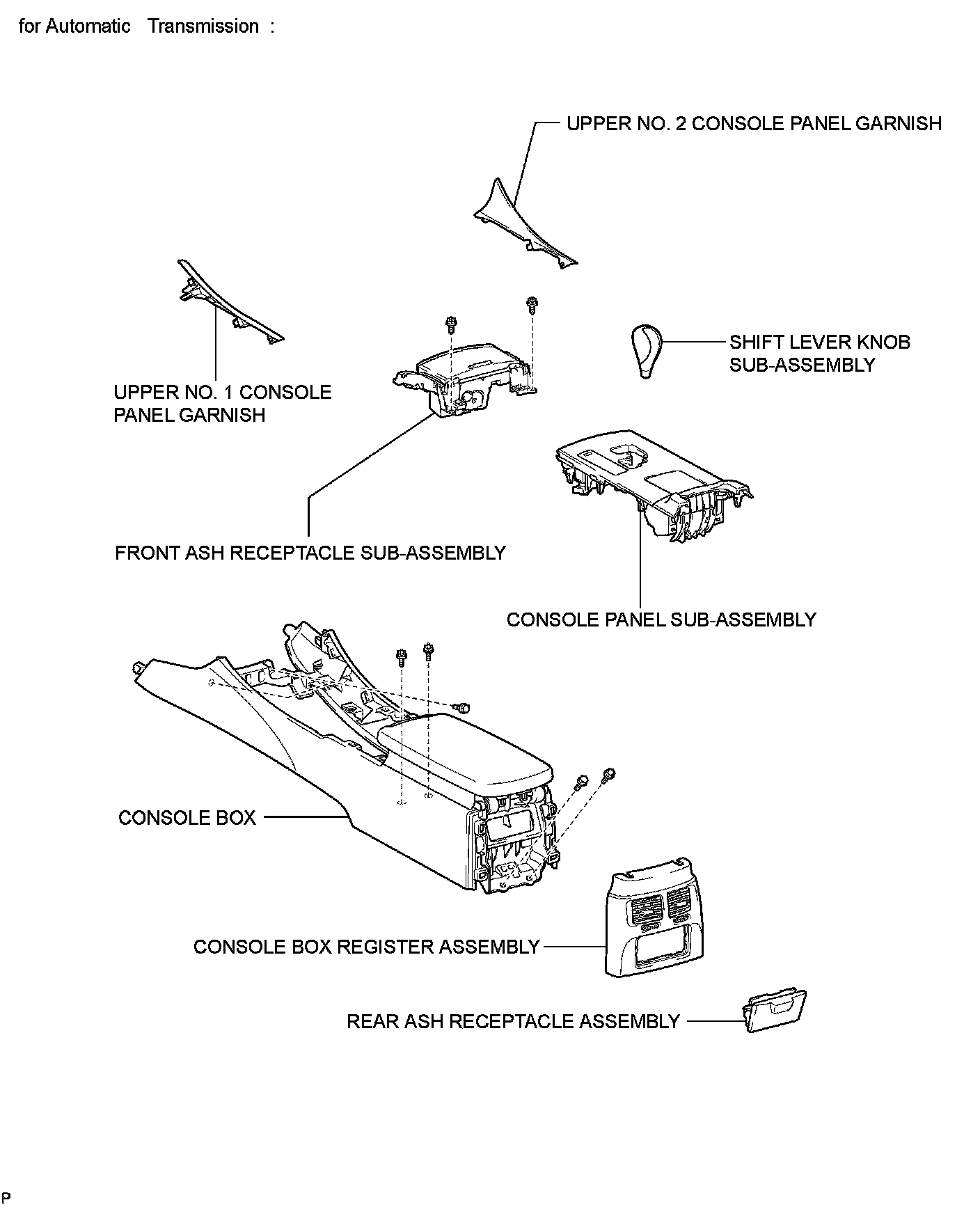

ILLUSTRATION
