Dynamic Radar Cruise Control

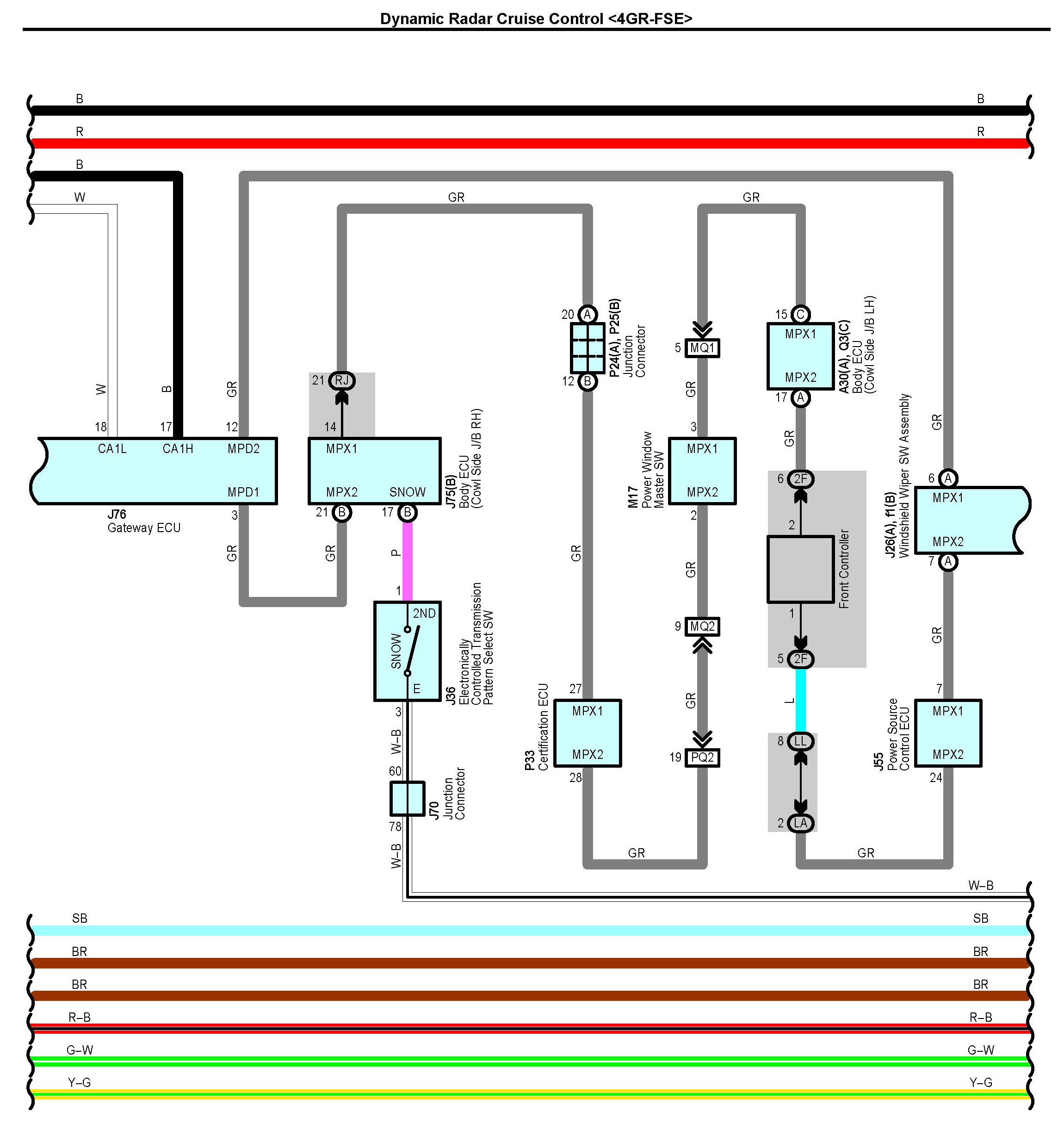

Dynamic Radar Cruise Control Part 1:

Dynamic Radar Cruise Control Part 2:

Dynamic Radar Cruise Control Part 3:

Dynamic Radar Cruise Control Part 4:

Dynamic Radar Cruise Control Part 5:

Dynamic Radar Cruise Control Part 6:

Dynamic Radar Cruise Control Part 7:

Dynamic Radar Cruise Control Part 8:

Dynamic Radar Cruise Control Part 9:

Dynamic Radar Cruise Control Part 10:

Dynamic Radar Cruise Control Part 11:

Dynamic Radar Cruise Control Part 12:

Dynamic Radar Cruise Control Part 12:

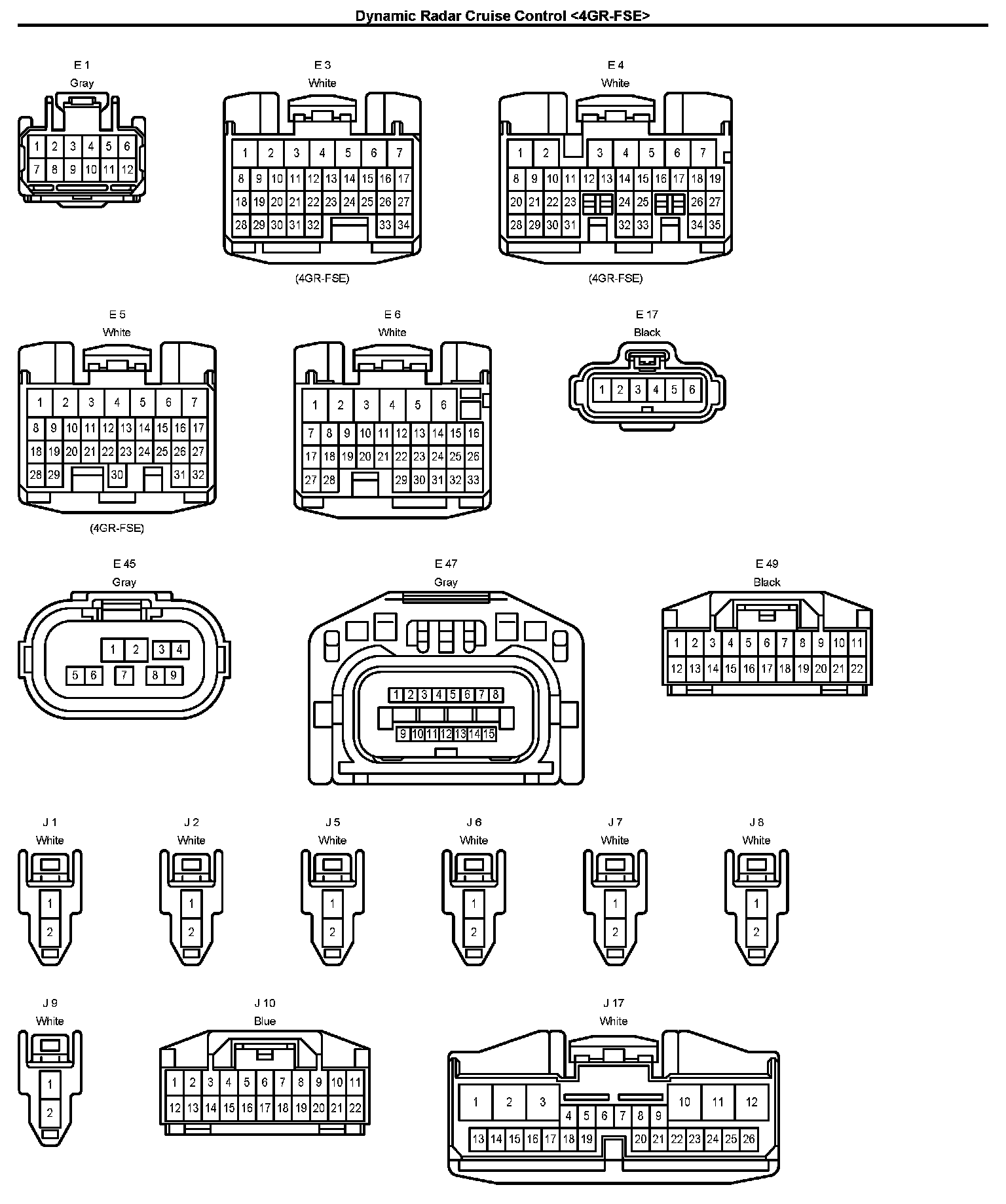

Connectors Part 1:

Connectors Part 2:

Connectors Part 3:

Connectors Part 4:

Connectors Part 5:

Connectors Part 6:

Connectors Part 7:

Locations: The locations of components, connectors, ground points, and splices referred to within these diagrams can be found at Vehicle Locations. Locations
