Components

4GR-FSE ENGINE CONTROL SYSTEM: CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY: COMPONENTS

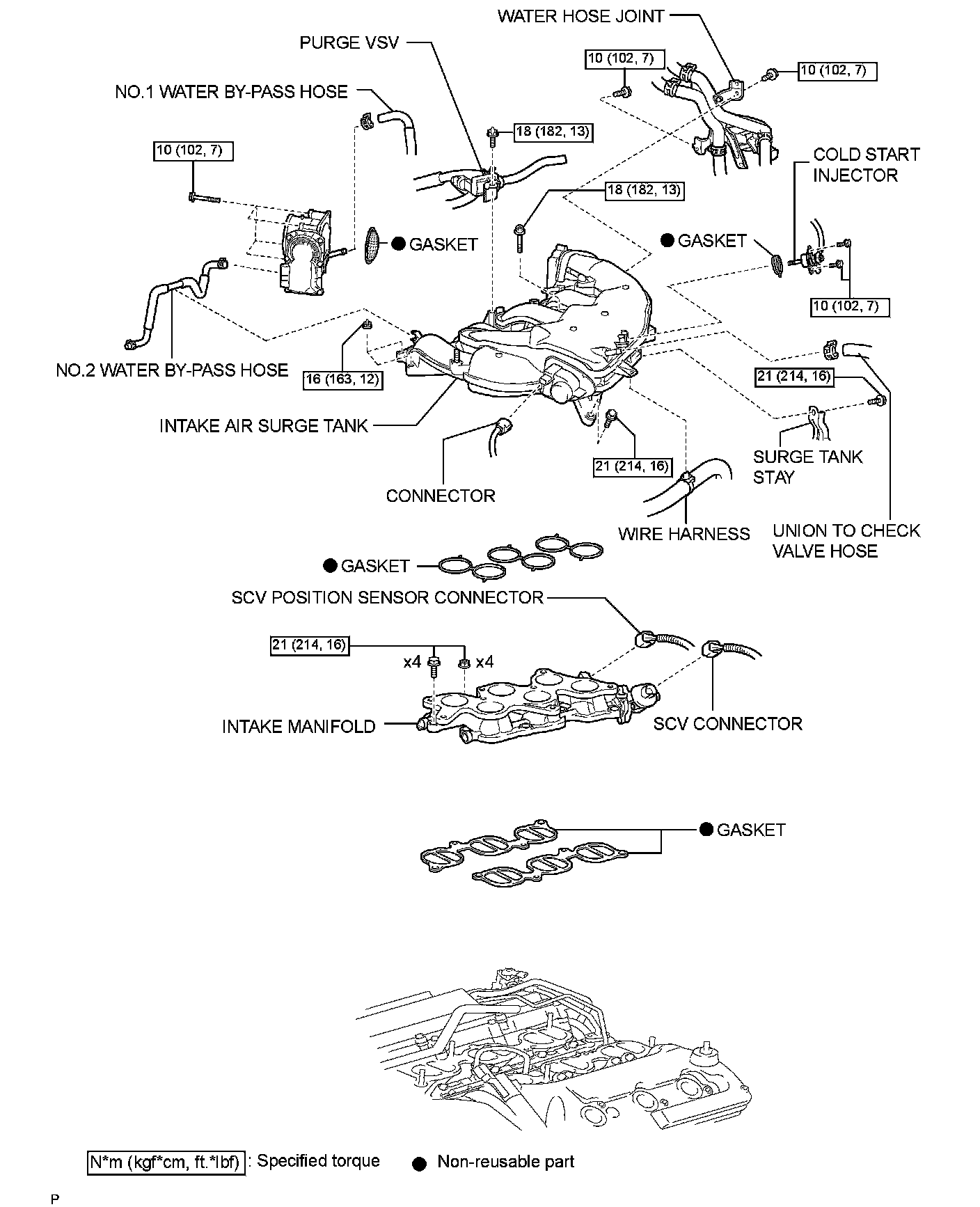

COMPONENTS

ILLUSTRATION
