Installation

HORN: HIGH PITCHED HORN: INSTALLATION

INSTALLATION

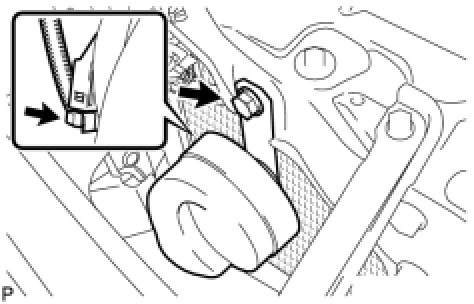

1. INSTALL HIGH PITCHED HORN





(a) Install the high pitched horn with the bolt.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
(b) Connect the connector.
2. INSTALL COOL AIR INTAKE DUCT SEAL
