Component Tests and General Diagnostics

LIGHTING: LICENSE PLATE LIGHT ASSEMBLY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

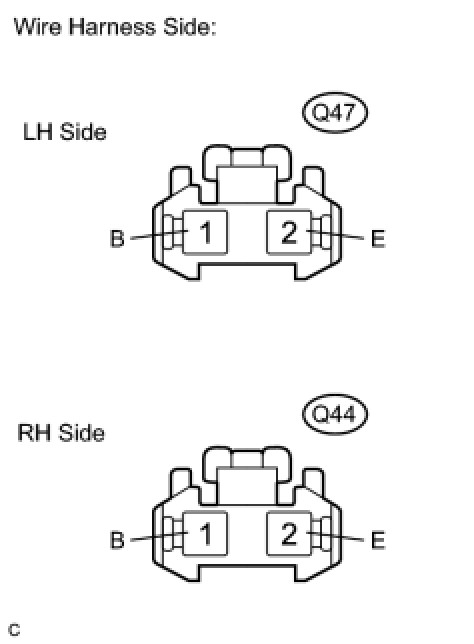

(a) Disconnect the connector from the license plate light.

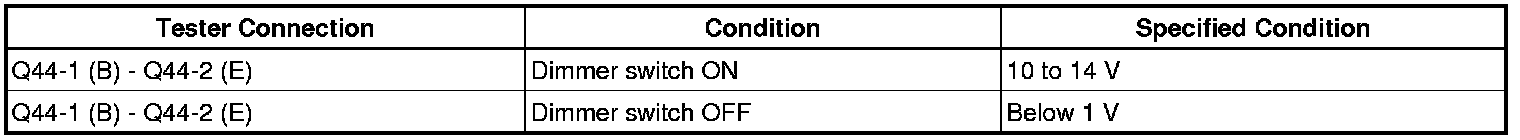

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:
LH Side





RH Side





If the result is not as specified, repair or replace the wire harness or connector.
