Brake - General Maintenance

MAINTENANCE: BRAKE: GENERAL MAINTENANCE

GENERAL MAINTENANCE





1. INSPECT BRAKE LINE PIPES AND HOSES
HINT:
Work in a well-lighted area. Turn the front wheels fully to the right or left before beginning the inspection.

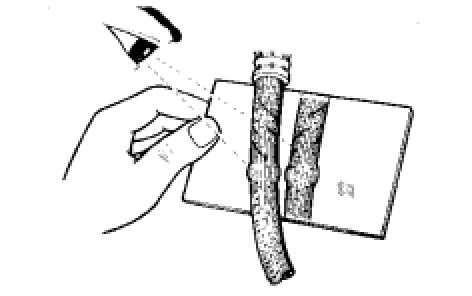

(a) Using a mirror, check the entire circumference and length of the brake lines and hoses for:
- Damage
- Wear
- Deformation
- Cracks
- Corrosion
- Leaks
- Bends
- Twists

(b) Check all the clamps for tightness and the connections for leakage.
(c) Check that the hoses and lines are not near sharp edges, moving parts or the exhaust system.
(d) Check that the lines are installed properly and pass through the center of the grommets.
2. INSPECT BRAKE PEDAL
Adjustments
3. INSPECT PARKING BRAKE
Adjustments
4. INSPECT BRAKE LININGS AND DRUMS
(a) Check the brake linings and drums. Also check the brake linings of parking brake.
5. INSPECT FRONT BRAKE
(a) Check the front brake pads and discs.






6. INSPECT REAR BRAKE
(a) Check the rear brake pads, discs, linings and drums Rear Brake.
7. INSPECT OR CHANGE BRAKE FLUID
Service and Repair
Fluid:
SAE J1703 or FMVSS No. 116 DOT3
