4GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: READINESS MONITOR DRIVE PATTERN

READINESS MONITOR DRIVE PATTERN

1. PURPOSE OF READINESS TESTS

- The On-Board Diagnostic (OBD II) system is designed to monitor the performance of emissions-related components, and indicate any detected abnormalities with DTC (Diagnostic Trouble Codes). Since various components need to be monitored during different driving conditions, the OBD II system is designed to run separate monitoring programs called Readiness Monitors.
- Techstream software must be version 9.0 or newer to view the Readiness Monitor Status. To view the status, enter the following menus: Powertrain / Engine and ECT / Monitor / Status 2.
- When the Readiness Monitor status reads complete, the necessary conditions have been met for running the performance tests for that Readiness Monitor.
- A generic OBD ll scan tool can also be used to view the Readiness Monitor status.
HINT:
Many state Inspection and Maintenance (I/M) programs require a vehicle's Readiness Monitor status to show complete before beginning emissions tests.

The Readiness Monitor will be reset to Incomplete if:
- The ECM has lost battery power or blown a fuse.
- DTCs have been cleared.
- The conditions for running the Readiness Monitor have not been met.

If the Readiness Monitor Status shows Incomplete, follow the appropriate Readiness Monitor Drive Pattern to change the status to complete.
CAUTION:
Strictly observe posted speed limits, traffic laws, and road conditions when performing these drive patterns.
NOTE:
The drive patterns represent the fastest method of satisfying all conditions necessary to achieve complete status for each specific Readiness Monitor.

If a drive pattern is interrupted (possibly due to factors such as traffic conditions), the drive pattern can be resumed. In most cases, the Readiness Monitor will still achieve complete status upon completion of the drive pattern.
To ensure completion of the Readiness Monitors, avoid sudden changes in vehicle load and speed (driving up and down hills and/or sudden acceleration).

2. CATALYST MONITOR (AIR-FUEL RATIO (A/F) SENSOR TYPE)





(a) Preconditions
The monitor will not run unless:
- The MIL is OFF

(b) Drive Pattern
(1) Step 1
Connect Techstream to the DLC3.
(2) Step 2
Turn the engine switch on (IG).
(3) Step 3
Turn the Techstream or scan tool ON.
(4) Step 4
Clear DTCs (where set).
(5) Step 5

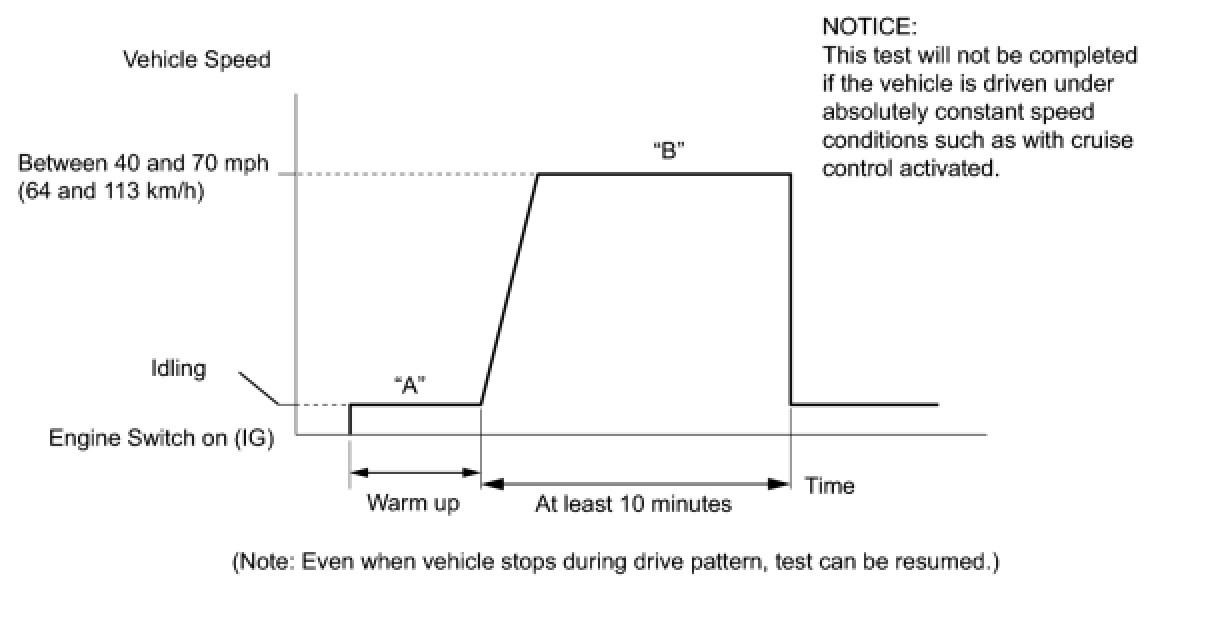

Start the engine and warm it up (Procedure "A")
(6) Step 6
Drive the vehicle at between 40 mph and 70 mph (64 km/h and 113 km/h) for at least 10 minutes (Procedure "B")
(c) Monitor Status
(1) Check the Readiness Monitor Status displayed on the Techstream or scan tool.
(2) If the status dose not switch to Complete, extend the driving time.
3. EVAP SYSTEM MONITOR (KEY OFF TYPE)
(a) Preconditions
The monitor will not run unless:
- The fuel tank is less than 90 % full.
- The altitude is less than 8000 ft (2450 m).
- The vehicle is stationary.
- The engine coolant temperature is between 4.4°C and 35°C (40°F to 95°F).
- The intake air temperature is between 4.4°C and 35°C (40°F to 95°F).
- Vehicle was driven in the city area (or on free-way) for 10 minutes or more.

(b) Monitor Conditions
(1) Turn the engine switch off and wait for 9.5 hours.
HINT:
Do not start the engine until checking Readiness Monitor status. If the engine is started, the step described above must be repeated.

(c) Monitor Status
(1) Connect Techstream to the DLC3.
(2) Turn the engine switch on (IG).
(3) Turn the tester or scan tool on.
(4) Check the Readiness Monitor status displayed on the tester or scan tool.
If the status does not switch to complete, restart the engine, make sure that the preconditions have been met, and then perform the Monitor Conditions again.
4. AIR-FUEL RATIO (A/F) AND HEATED OXYGEN (HO2) SENSOR MONITORS (ACTIVE AIR-FUEL RATIO CONTROL TYPE)





(a) Preconditions
The monitor will not run unless:
- 2 minutes or more have elapsed since the engine was started.
- The Engine Coolant Temperature (ECT) is 75°C (167°F) or more.
- Cumulative driving time at a vehicle speed of 30 mph (48km/h) or more exceeds 6 minutes.
- Air-fuel ratio feedback control is performed.
- Fuel-cut control is performed for 8 seconds or more (for the Rear HO2 Sensor Monitor).

(b) Drive Pattern for front A/F sensor and HO2 sensor
(1) Step 1
Connect Techstream to the DLC3.
(2) Step 2
Turn the engine switch on (IG).
(3) Step 3
Turn the Techstream on.
(4) Step 4
Clear the DTCs.
(5) Step 5
Start the engine, and warm it up until the ECT reaches 75°C (167°F) or higher (Step "A")
(6) Step 6
Drive the vehicle at 38 mph (60 km/h) or more for at least 10 minutes (Step "B")
(7) Step 7
Change the transmission to 2nd gear (Step "C")
(8) Step 8
Accelerate the vehicle to 40 mph (64 km/h) or more by depressing the accelerator pedal for at least 10 seconds (Step "D")
(9) Step 9
Soon after performing step "D" above, release the accelerator pedal for at least 4 seconds without depressing the brake pedal, in order to execute fuel-cut control (Step "E")
(10) Step 10
Allow the vehicle to decelerate until the vehicle speed declines to less than 6 mph (10 km/h) (Step "F")
(11) Step 11
Repeat steps "D" through "F" above at least 3 times in one driving cycle (Step "G").
(c) Monitor Status
(1) Check the Readiness Monitor Status displayed on the Techstream.
(2) If the status dose not switch to Complete, make sure that the preconditions have been met, and then perform steps "A" through "G" in the Drive Pattern above.
5. AIR FUEL RATIO (A/F) AND HEATED OXYGEN (HO2) SENSOR HEATER MONITORS (FRONT A/F AND REAR HO2 SENSOR TYPE)





(a) Preconditions
The monitor will not run unless:
The MIL is OFF.
(b) Drive Pattern
(1) Step 1
Connect Techstream to the DLC3.
(2) Step 2
Turn the engine switch on (IG).
(3) Step 3
Turn the tester or scan tool on.
(4) Step 4
Clear DTCs (where set).
(5) Step 5
Start the engine.
(6) Step 6
Allow the engine to idle for 10 minutes or more.
(7) Step 7
Drive the vehicle at 25 mph (40 km/h) or more for at least 2 minutes.
(c) Monitor Status
(1) Check the Readiness Monitor status displayed on the tester or scan tool.
If the status does not switch to complete, make sure that the preconditions have been met, and repeat steps from 5 to 7 described in the Drive Pattern above.
