Seat Belt Warning System (w/o Occupant Classification System)

SEAT BELT: SEAT BELT WARNING SYSTEM (w/o Occupant Classification System): TERMINALS OF ECU

TERMINALS OF ECU

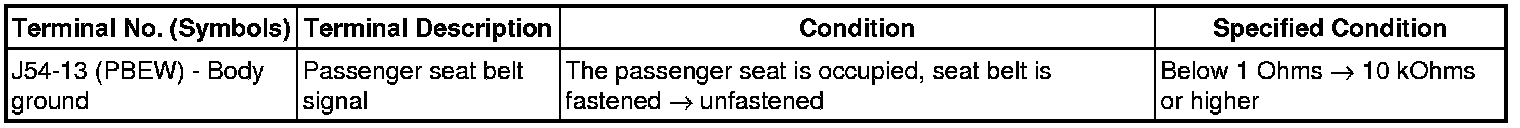

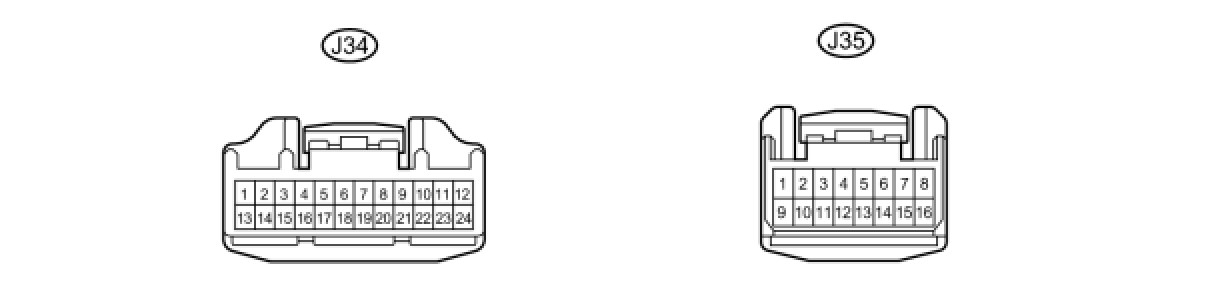

1. COMBINATION METER ASSEMBLY





Voltage:






Resistance:

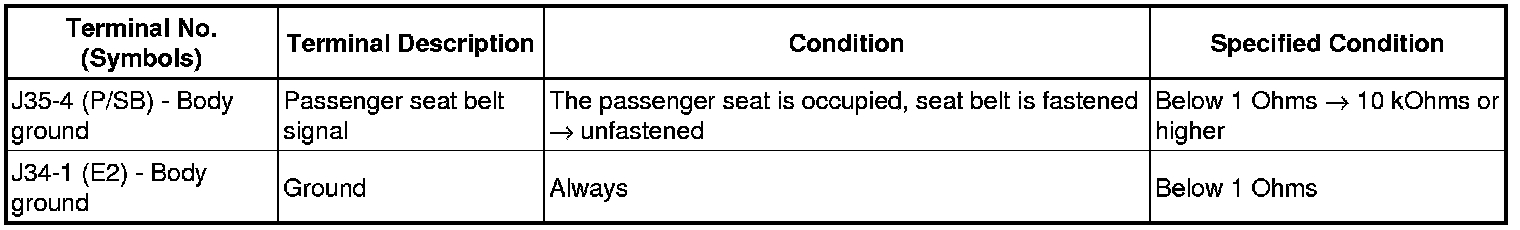

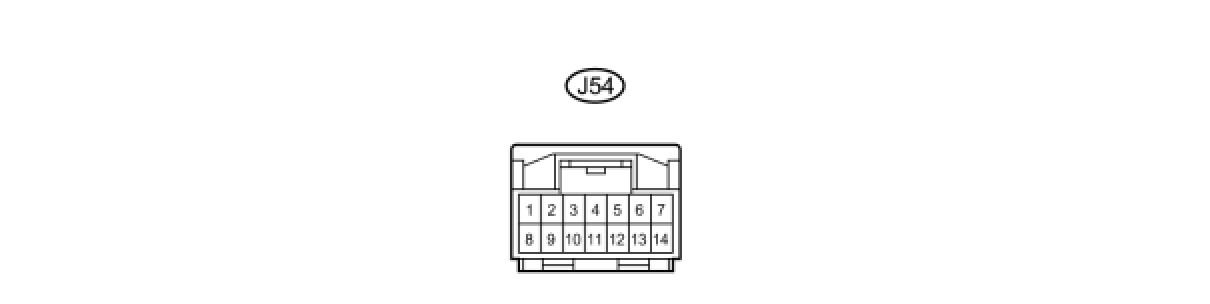

2. CLOCK ASSEMBLY (w/ WITH NAVIGATION SYSTEM)





Voltage:






Resistance:

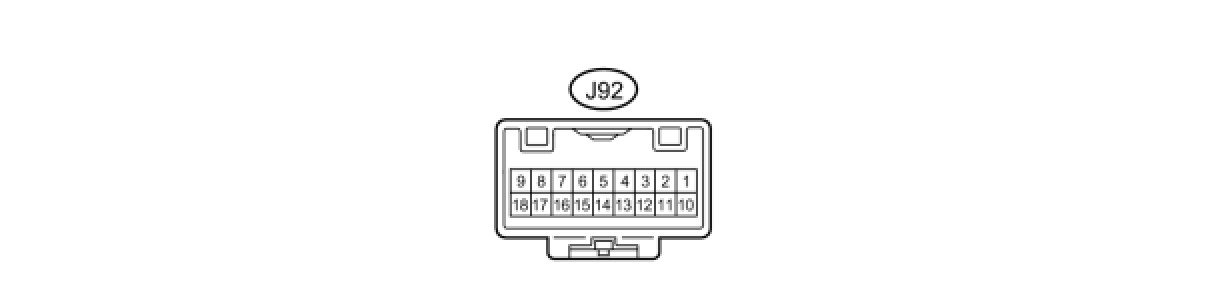

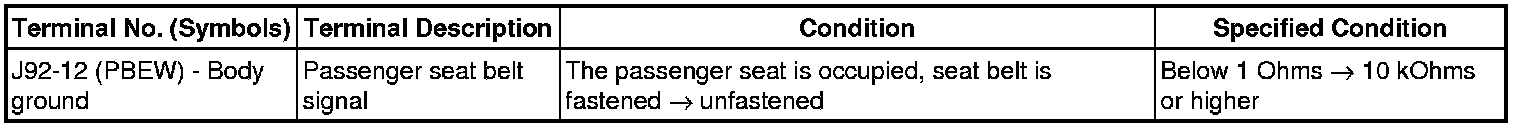

3. INTEGRATION CONTROL & PANEL (w/o NAVIGATION SYSTEM)





Voltage:






Resistance:
