Heated Glass Element Relay: Testing and Inspection

WINDSHIELD / WINDOWGLASS: DEFOGGER RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION





1. INSPECT DEFOGGER RELAY (Marking: DEFOG)
(a) Measure the resistance of the DEFOG relay.

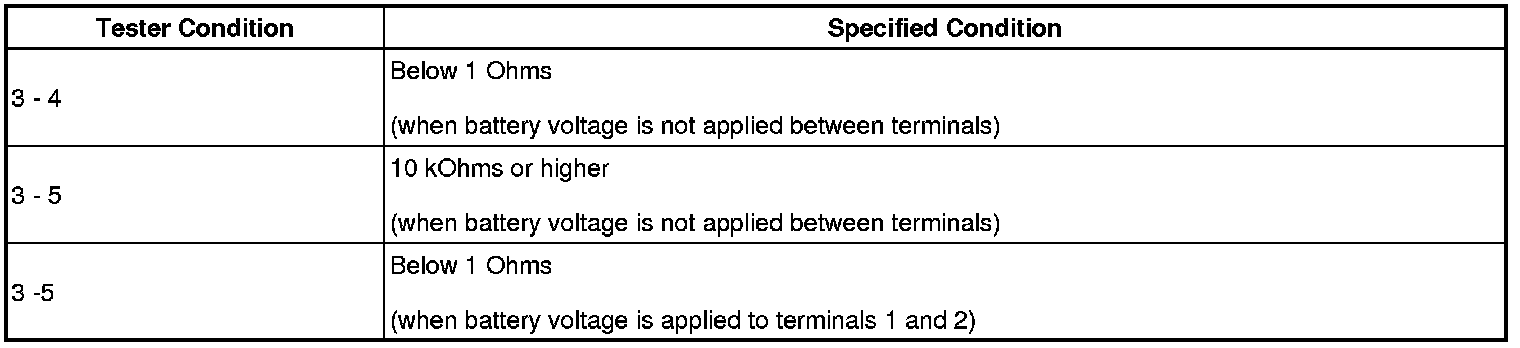

Standard:






If the result is not as specified, replace the relay.
