Navigation Module: Locations

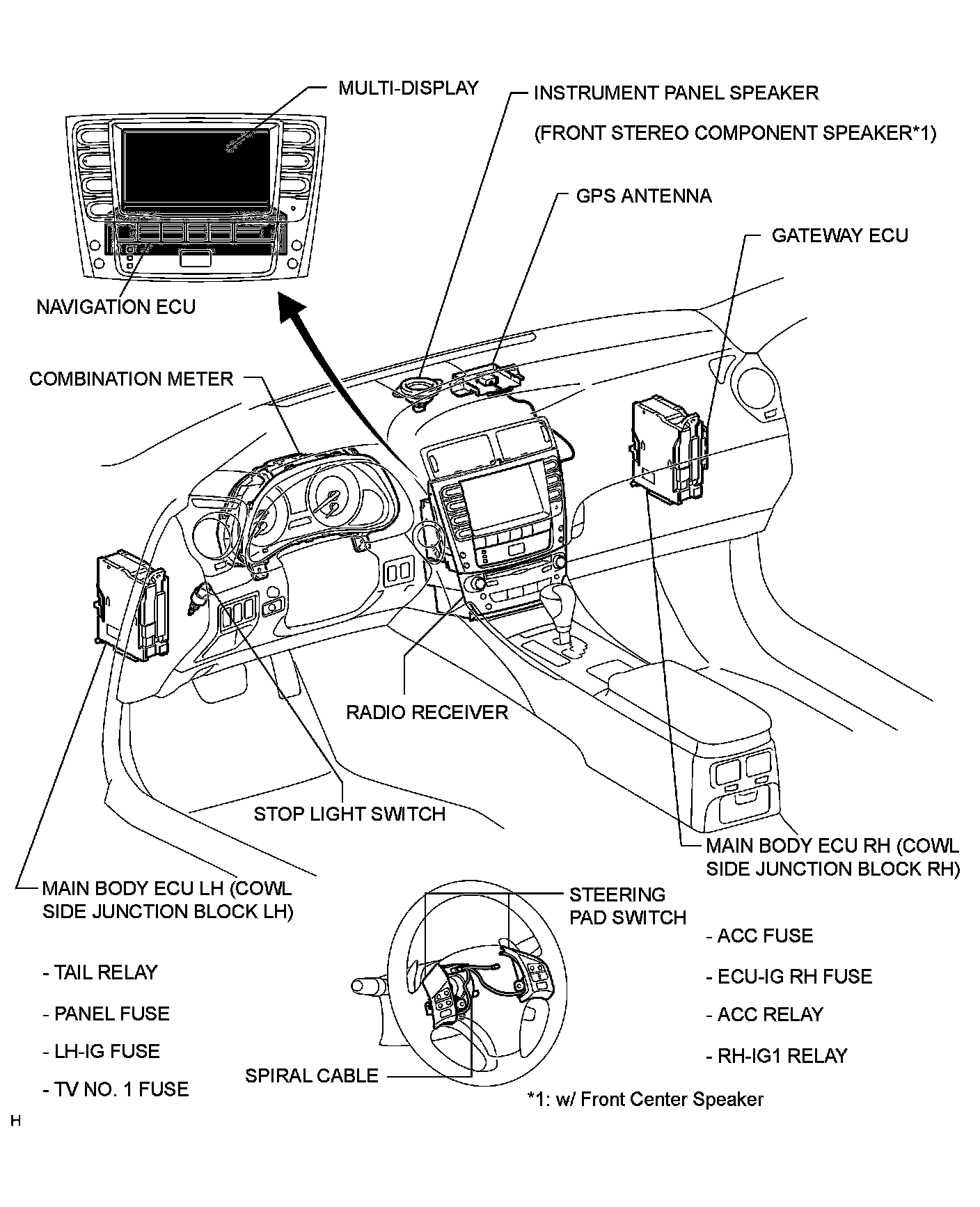

NAVIGATION / MULTI INFO DISPLAY: NAVIGATION SYSTEM: PARTS LOCATION
PARTS LOCATION
