Multiplex Communication System
Multiplex Communication System

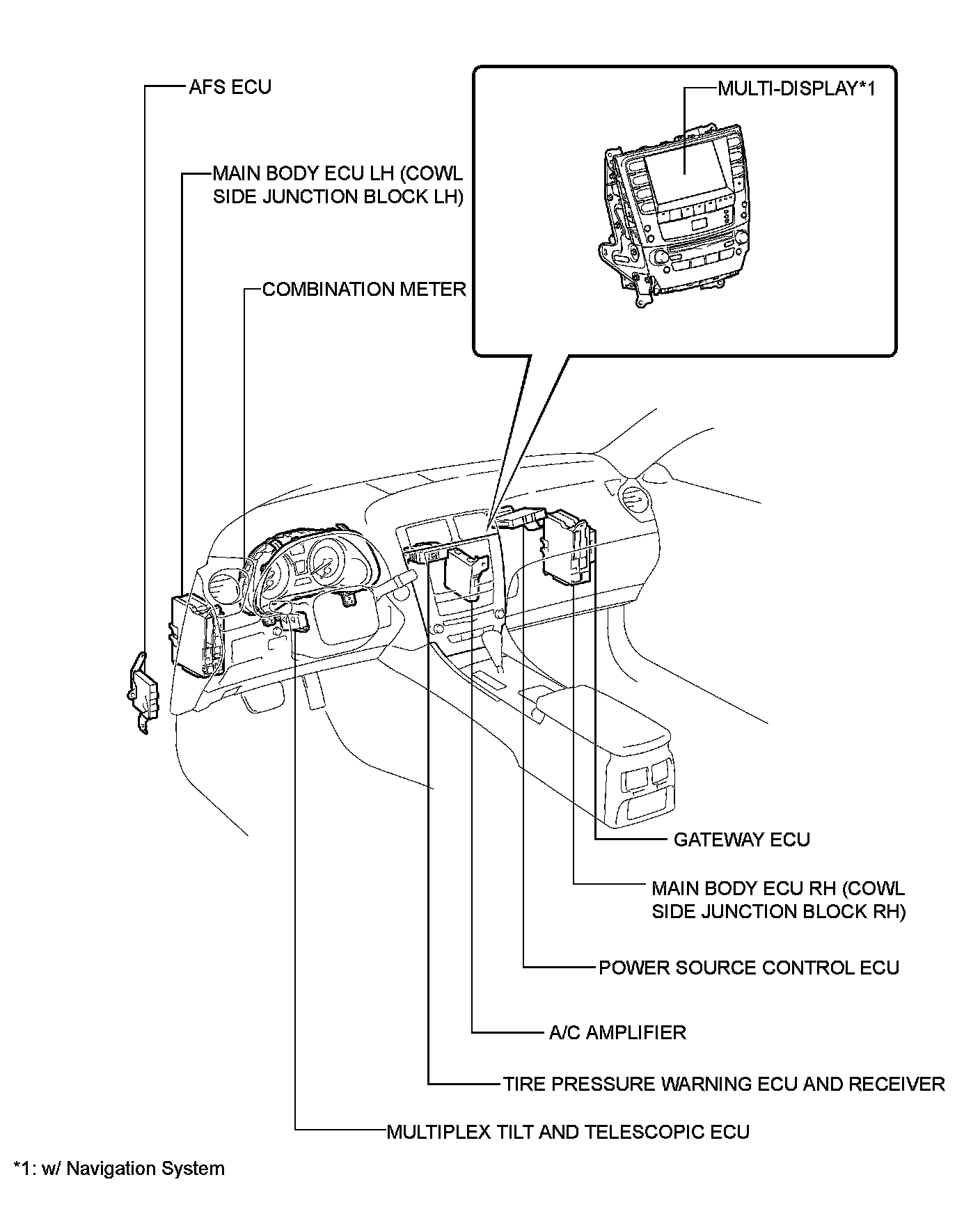

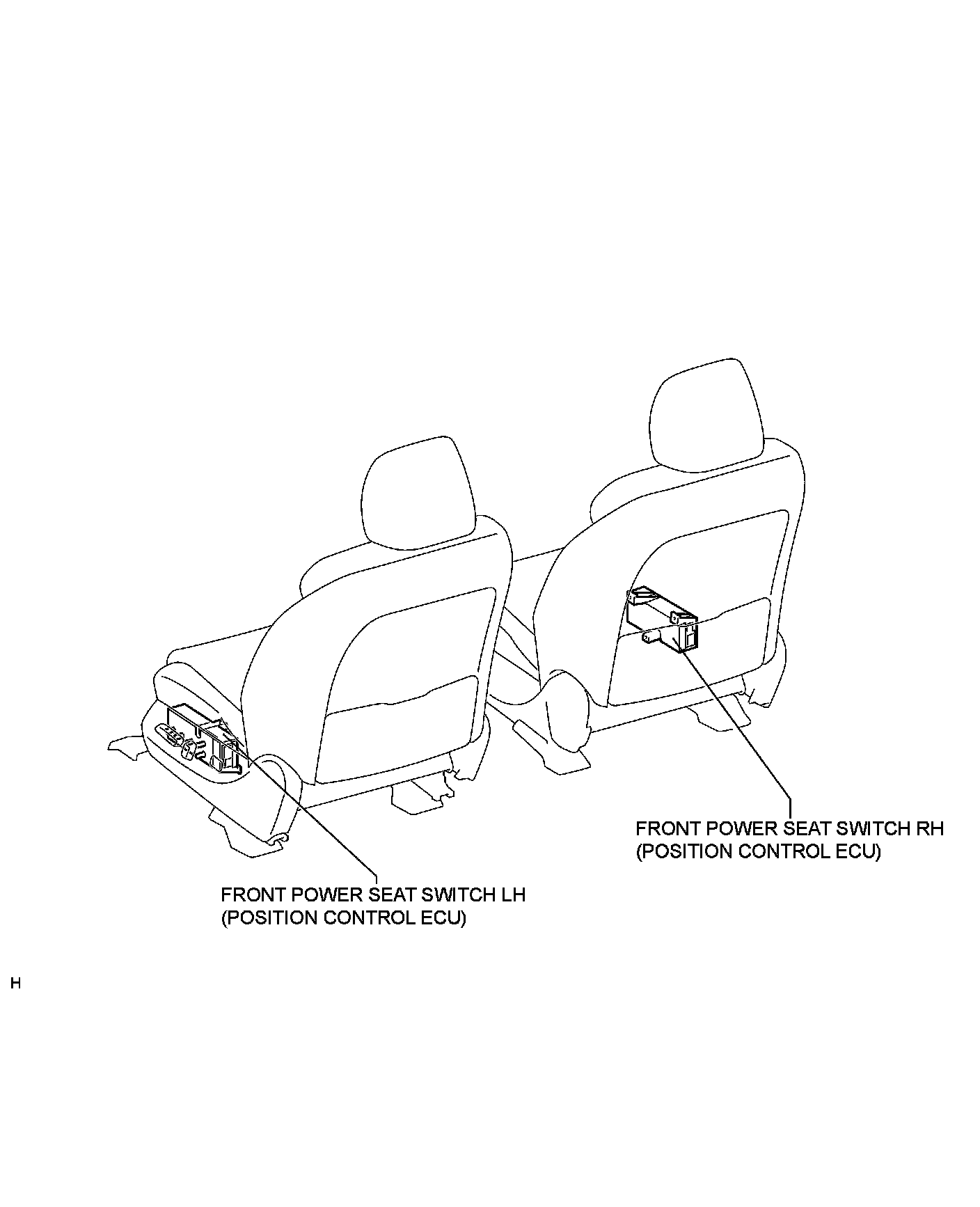

NETWORKING: MULTIPLEX COMMUNICATION SYSTEM: PARTS LOCATION
PARTS LOCATION
