NETWORKING: CAN COMMUNICATION SYSTEM: PROBLEM SYMPTOMS TABLE

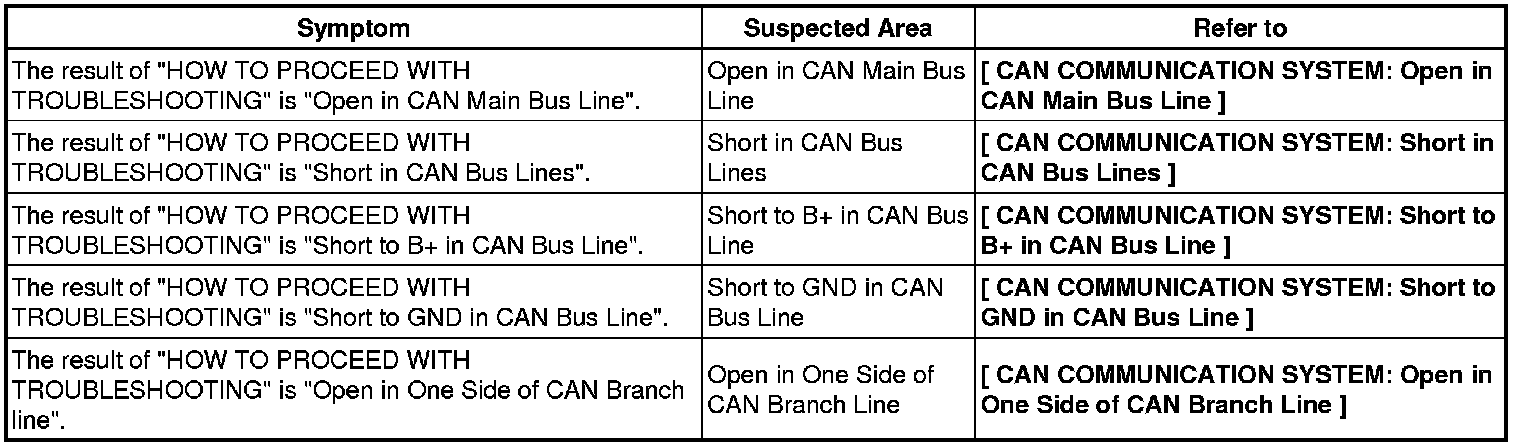

PROBLEM SYMPTOMS TABLE
Result List of How to Proceed with Troubleshooting
Communication Stop Mode Table
