Home >> Lexus >> 2009 >> IS F V8-5.0L (2UR-GSE) >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Brakes and Traction Control >> Electronic Brake Control Module >> Locations

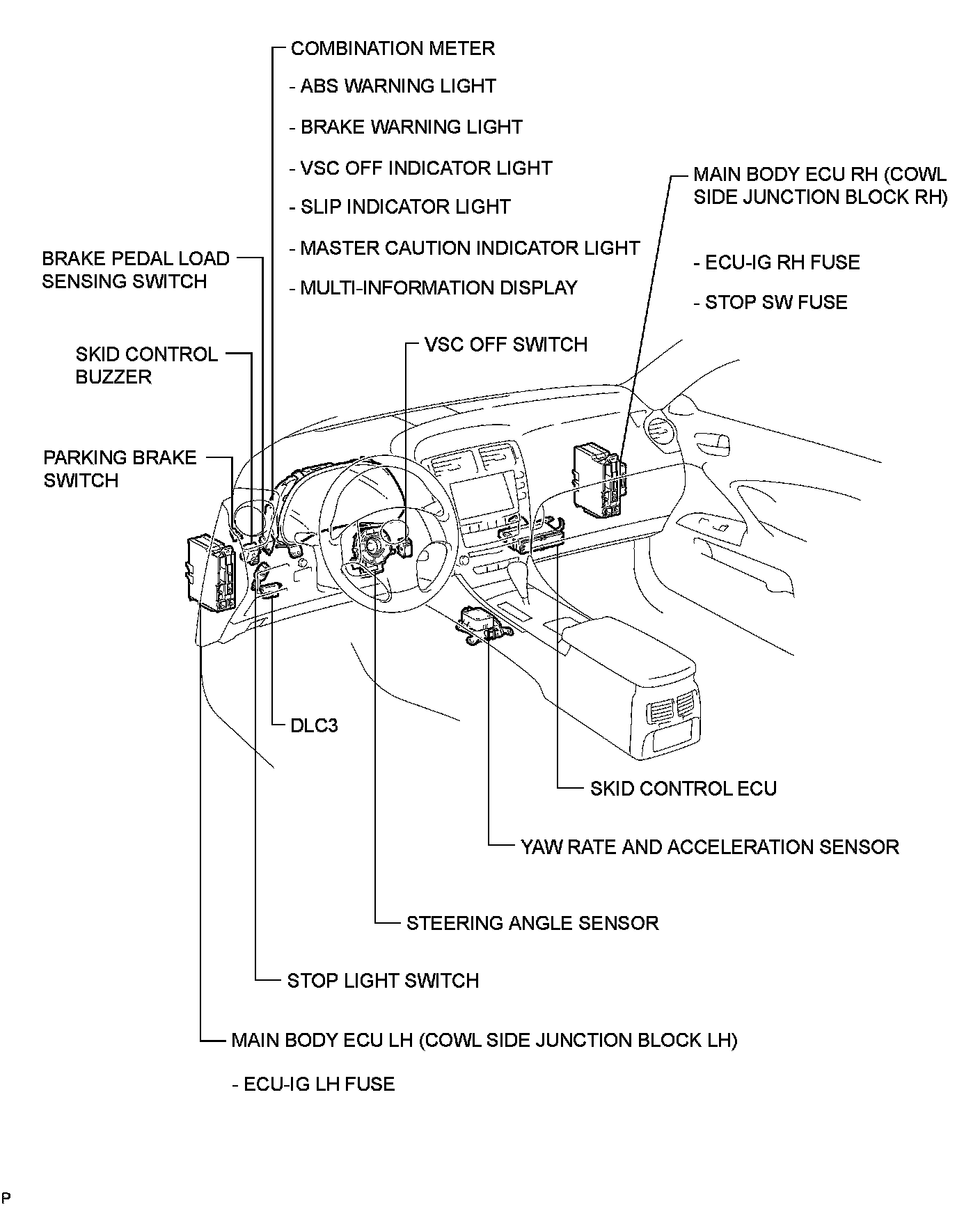

Electronic Brake Control Module: Locations






Instrument Panel:
