Torque Specifications








SPECIFICATIONS: 2UR-GSE COOLING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

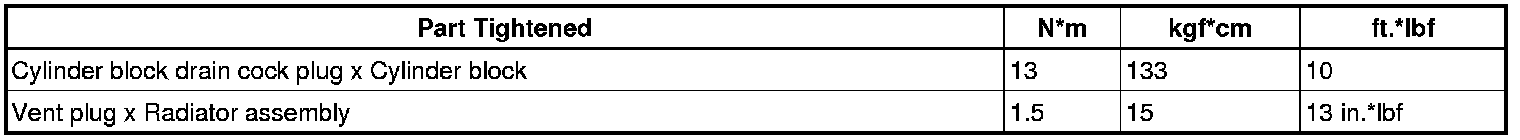

Coolant

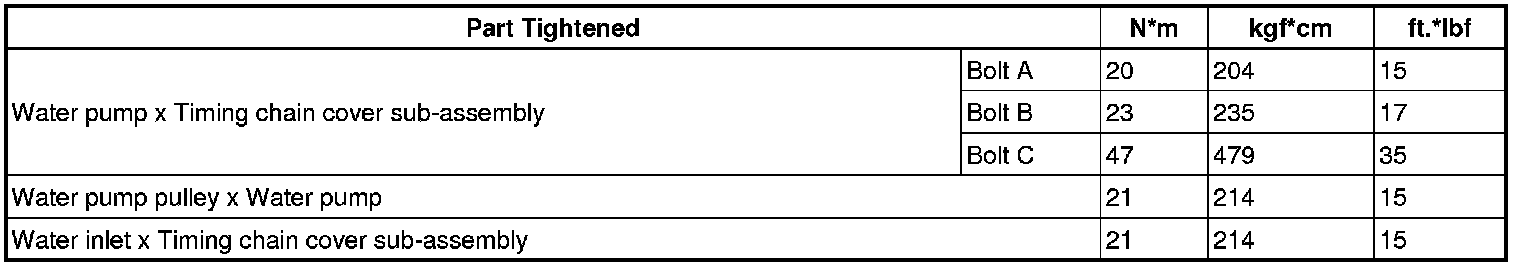

Water pump





Water inlet with thermostat

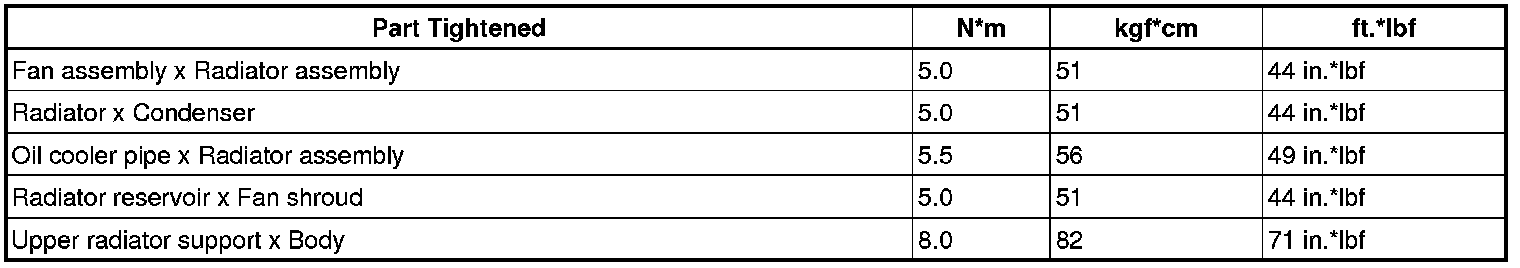

Cooling fan motor





Radiator
