Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lexus
>>
2009
>>
IS F V8-5.0L (2UR-GSE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Starter Motor
>>
Service and Repair
>>
Components
Components

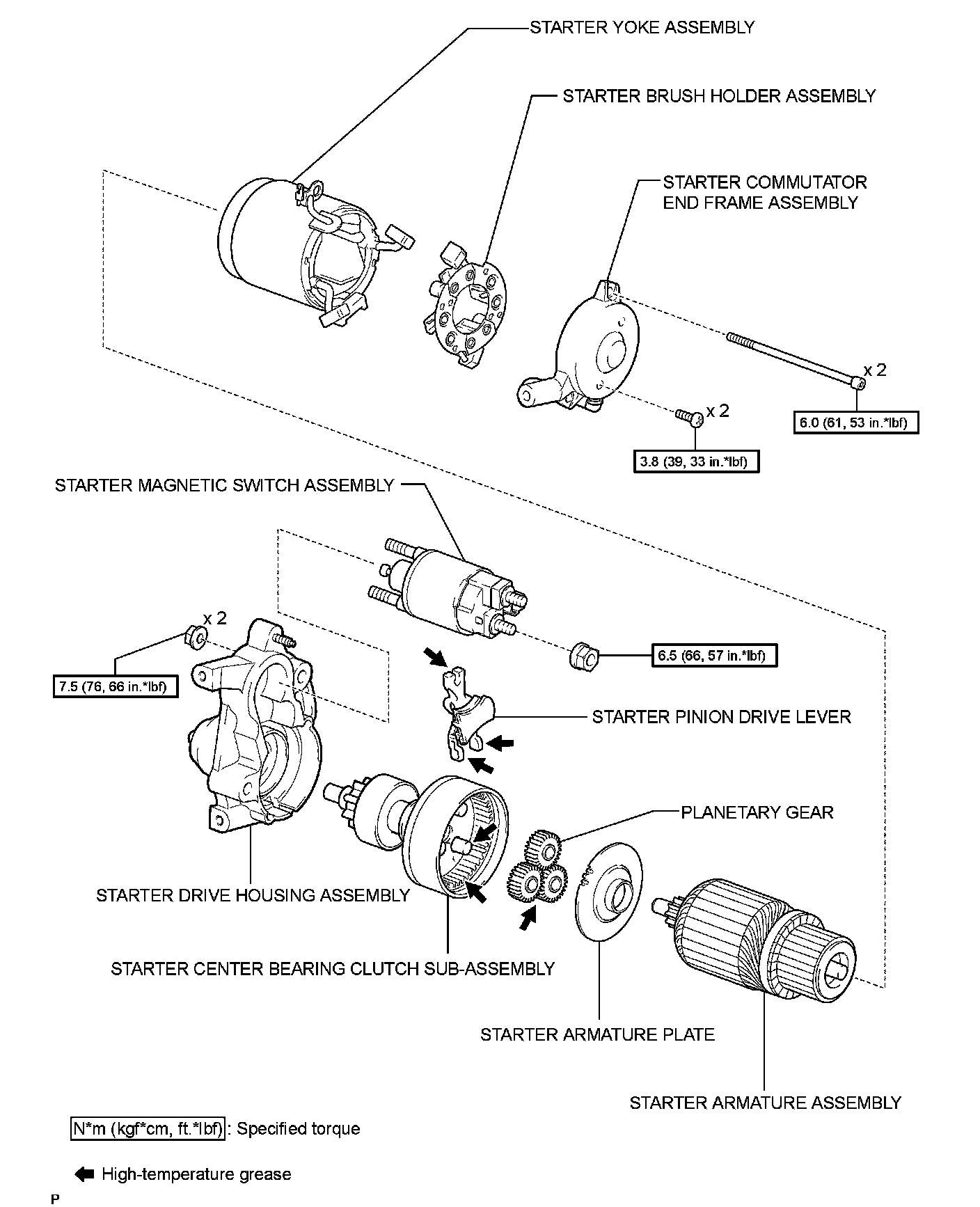

2UR-GSE STARTING: STARTER: COMPONENTS
COMPONENTS
