Display Check Mode

NAVIGATION: NAVIGATION SYSTEM (for DVD): DISPLAY CHECK MODE

DISPLAY CHECK MODE
HINT:
- This mode checks the color display on the multi-display.
- Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be exactly the same as on the actual vehicle.

1. ENTER DIAGNOSTIC MODE Navigation System (for DVD)
2. DISPLAY CHECK





(a) Select "Display Check" from the "Diagnosis MENU" screen.

3. COLOR BAR CHECK

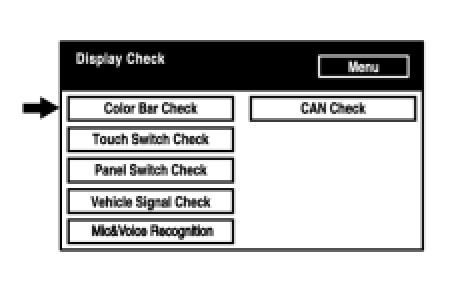

(a) Select "Color Bar Check" from the "Display Check" screen.

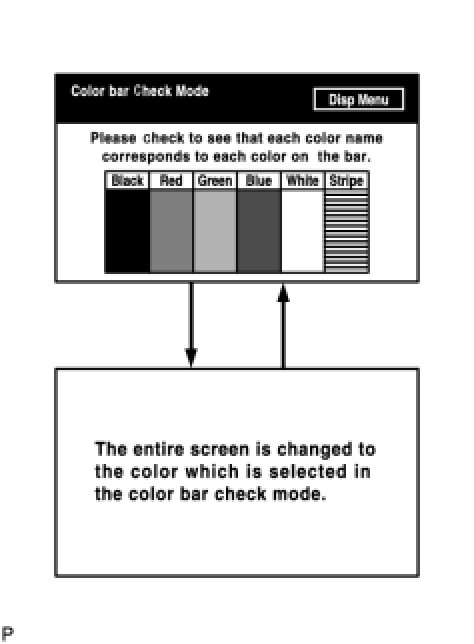

(b) Select a color bar from the "Color Bar Check Mode" screen.

(c) Check the display color.
HINT:
- The entire screen turns to the color or stripe selected.
- Touch the display to return to the "Color Bar Check Mode" screen.

4. TOUCH SWITCH CHECK





(a) Select "Touch Switch Check" from the "Display Check" screen.





(b) Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.
HINT: A "+" mark is displayed on the display is touched.

5. PANEL SWITCH CHECK





(a) Select "Panel Switch Check" from the "Display Check" screen.





(b) Operate each switch and check that the switch name and condition are correctly displayed.






6. VEHICLE SIGNAL CHECK

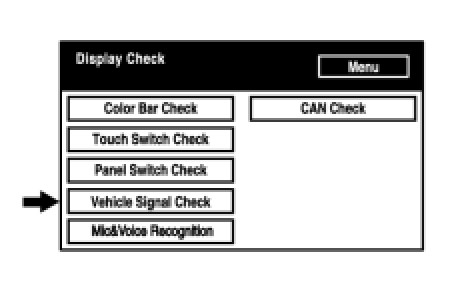

(a) Select "Vehicle Signal Check" from the "Display Check" screen.





(b) When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.
- Only conditions having inputs are displayed.
- This screen is updated once per second when input signals to the vehicle are changed.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.

7. MIC & VOICE RECOGNITION CHECK





(a) Select "Mic & Voice Recognition Check" on the "Display Check" screen to display the "MICROPHONE & VOICE RECOGNITION CHECK" screen.





(b) When a voice is input into the microphone, check that the microphone input level meter changes according to the input voice.
HINT: This function is controlled by the navigation ECU.

8. CAN CHECK





(a) Select "CAN Check" from the "Display Check" screen.

(b) Check the CAN connection check result.
- This function operates only for the systems connected to the CAN system.
- For details of this function, refer to DIAGNOSIS DISPLAY DETAILED DESCRIPTION Diagnosis Display Detailed Description.
