How To Proceed With Troubleshooting

CRUISE CONTROL: DYNAMIC RADAR CRUISE CONTROL SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT:
- Use these procedures to troubleshoot the dynamic radar cruise control system.
- *: Use the Techstream.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.

2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, replace or recharge the battery before proceeding.
NEXT -- Continue to next step.

3. CHECK FOR DTC (ELECTRIC POWER CONTROL SYSTEM)*
(a) Using the Techstream, check if the electric power control system is functioning normally.

Result





B -- Go to ELECTRIC POWER CONTROL SYSTEM
A -- Continue to next step.

4. CHECK COMMUNICATION FUNCTION OF CAN COMMUNICATION SYSTEM*
(a) Use the Techstream to check if the CAN communication system is functioning normally.

Result





B -- Go to CAN COMMUNICATION SYSTEM
A -- Continue to next step.

5. CHECK COMMUNICATION FUNCTION OF LIN COMMUNICATION SYSTEM*
(a) Use the Techstream to check if the LIN communication system is functioning normally.

Result





B -- Go to LIN COMMUNICATION SYSTEM
A -- Continue to next step.

6. CHECK FOR DTC*
(a) Check for DTC Dynamic Radar Cruise Control System.
(b) Clear the DTC Dynamic Radar Cruise Control System.
(c) Recheck for DTC Dynamic Radar Cruise Control System.

Result





B -- Go to DIAGNOSTIC TROUBLE CODE CHART Dynamic Radar Cruise Control System
A -- Continue to next step.

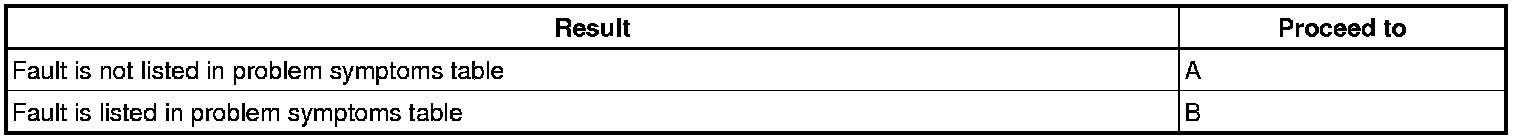

7. PROBLEM SYMPTOMS TABLE
(a) Refer to the problem symptoms table Dynamic Radar Cruise Control System.

Result





B -- Go to step 9
A -- Continue to next step.

8. OVERALL ANALYSIS AND TROUBLESHOOTING*
(a) Operation Check Operation Check.
(b) Terminals of ECU Dynamic Radar Cruise Control System.
(c) Data List / Active Test Dynamic Radar Cruise Control System.
NEXT -- Continue to next step.

9. ADJUST, REPAIR OR REPLACE
NOTICE:
- If the driving support ECU has been replaced, turn the power switch off -> on (IG) for 10 seconds -> off to perform the initialization.
- When the front millimeter wave radar sensor is replaced with a new one, adjustment of the radar sensor beam axis must be performed Installation.

NEXT -- Continue to next step.

10. CONFIRMATION TEST
NEXT -- END
