Ignition System: Description and Operation
1UR-FSE IGNITION:
IGNITION SYSTEM

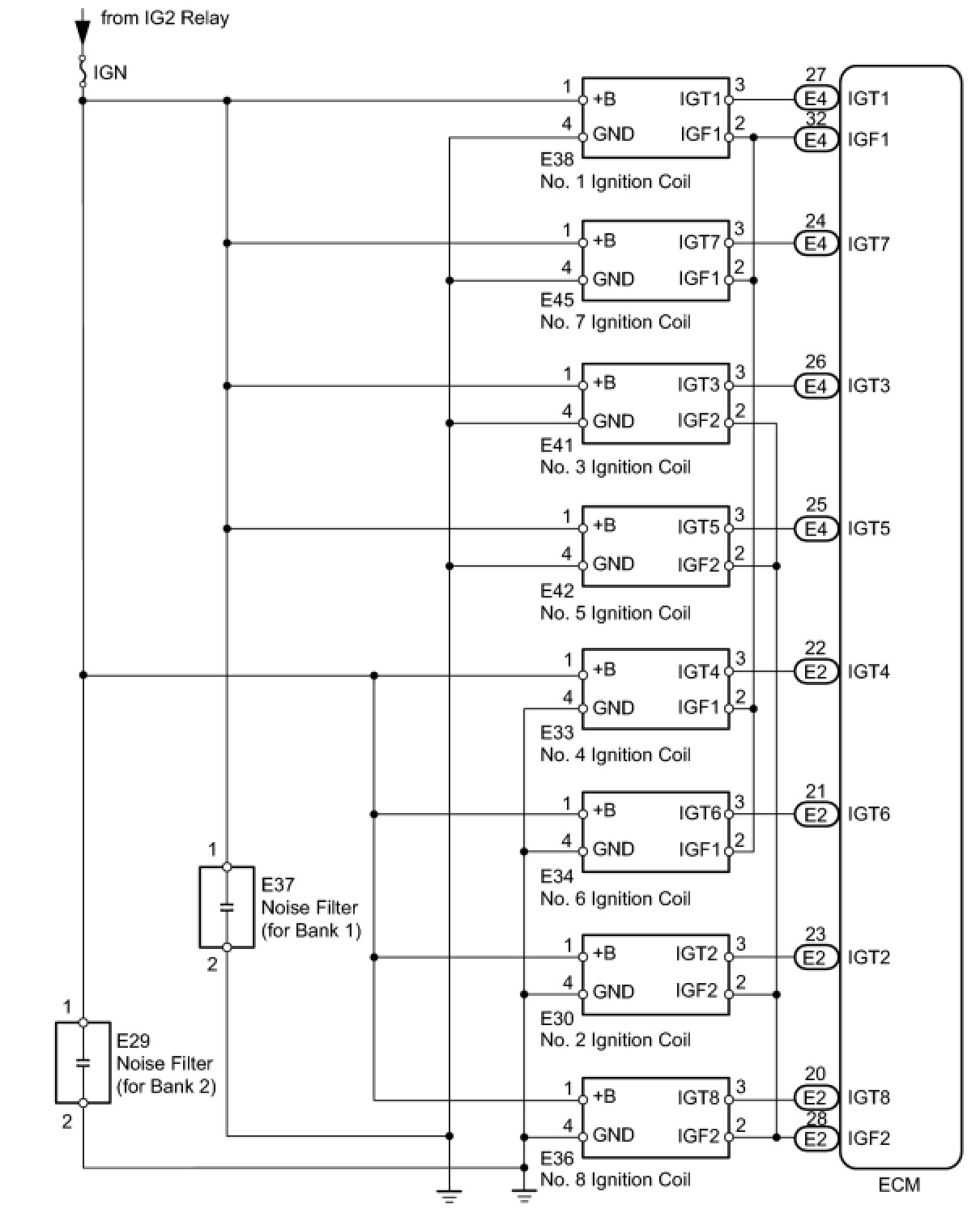

: SYSTEM DIAGRAM
SYSTEM DIAGRAM
