Heating and Air Conditioning

SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

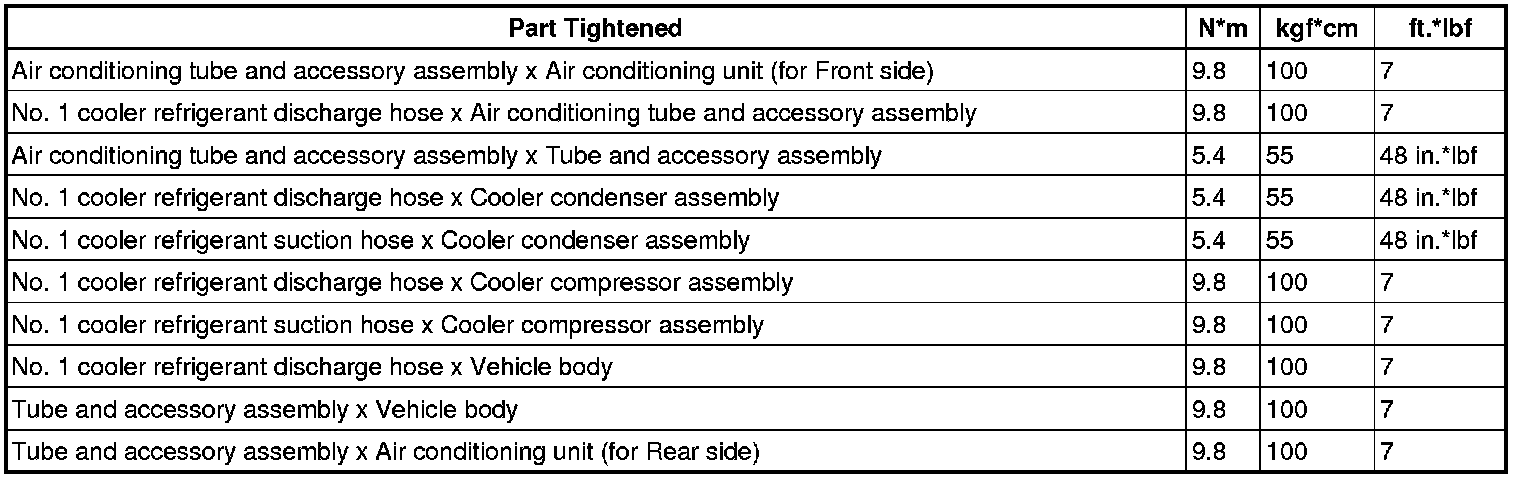

TORQUE SPECIFICATIONS

REFRIGERANT LINE

AIR CONDITIONING UNIT (for Front Side)

AIR CONDITIONING UNIT (for Rear Side)

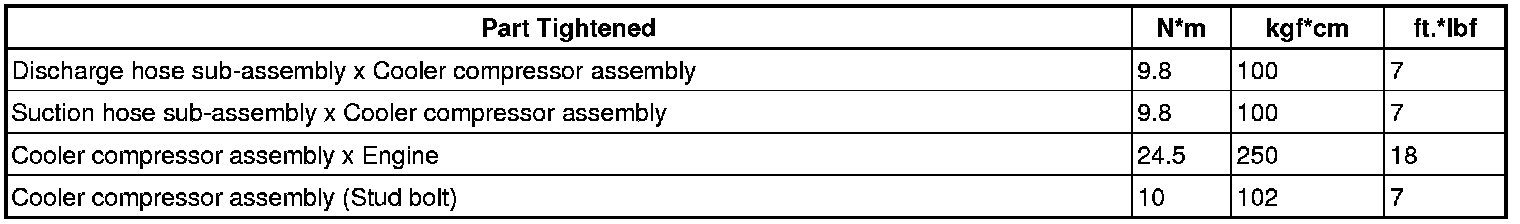

COMPRESSOR AND MAGNETIC CLUTCH

CONDENSER
