DOOR LOCK: BACK DOOR LOCK: INSTALLATION

INSTALLATION

1. INSTALL BACK DOOR LOCK PROTECTOR (W/ Power Back Door)

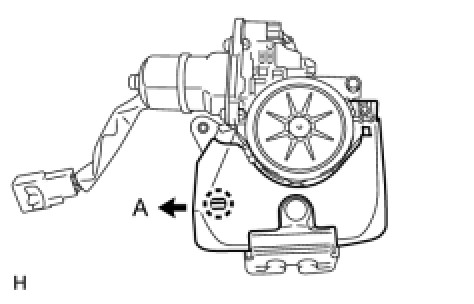

(a) Attach the claw to install the protector A.

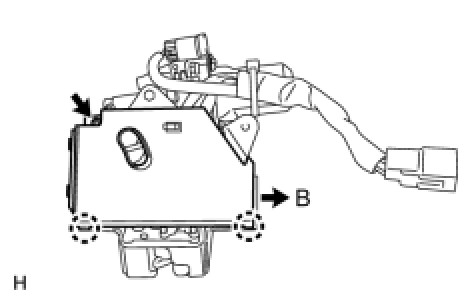

(b) Attach the 2 claws to install the protector B.
(c) Install the screw.
2. INSTALL BACK DOOR LOCK ASSEMBLY
(a) W/O Power Back Door:

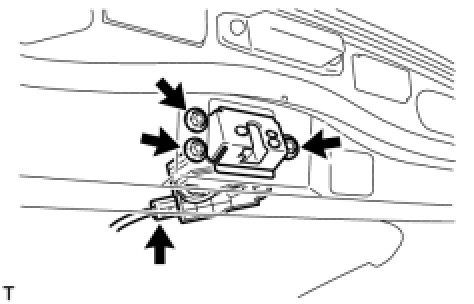

(1) Install the door lock with the 3 bolts.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
(2) Connect the connector.
(b) W/ Power Back Door:

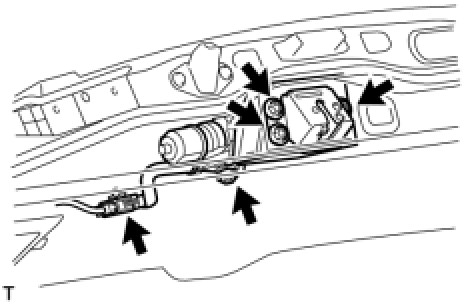

(1) Install the back door lock with the 4 bolts.
(2) Connect the connector.
Torque: 13 Nm (133 kgf-cm, 10 ft-lbf)
3. INSTALL BACK DOOR LOCK COVER

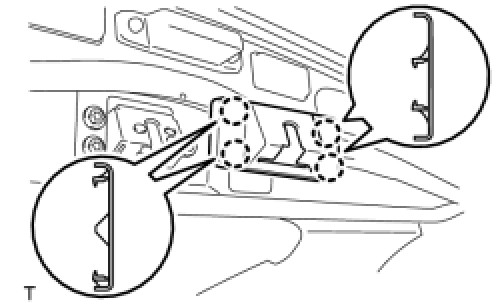

(a) Attach the 4 claws to install the cover.
4. INSTALL BACK DOOR GARNISH Reassembly
5. INSTALL BACK DOOR SIDE GARNISH RH Reassembly
6. INSTALL BACK DOOR SIDE GARNISH LH Reassembly
7. INSTALL CENTER BACK DOOR GARNISH Reassembly
8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL ENGINE ROOM SIDE COVER LH Installation
