Oil Pan, Engine

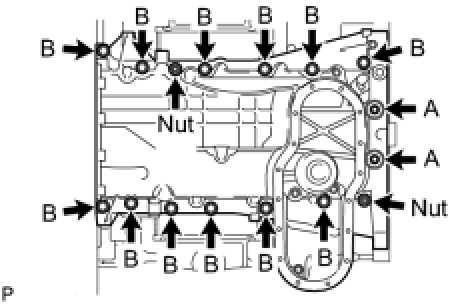

No. 1 Oil Pan Subassembly Bolts and Nuts
Bolt A 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolt B 35 Nm (357 kgf-cm, 26 ft-lbf)
Nut 35 Nm (357 kgf-cm, 26 ft-lbf)

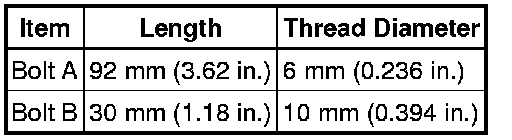

Standard Bolt
No. 2 Oil Pan Subassembly Bolts and Nuts 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolt A 10 Nm (102 kgf-cm, 7 ft-lbf)
Bolt B 35 Nm (357 kgf-cm, 26 ft-lbf)
Nut 35 Nm (357 kgf-cm, 26 ft-lbf)
Standard Bolt
No. 2 Oil Pan Subassembly Bolts and Nuts 10 Nm (102 kgf-cm, 7 ft-lbf)
