Variable Gear Ratio Steering

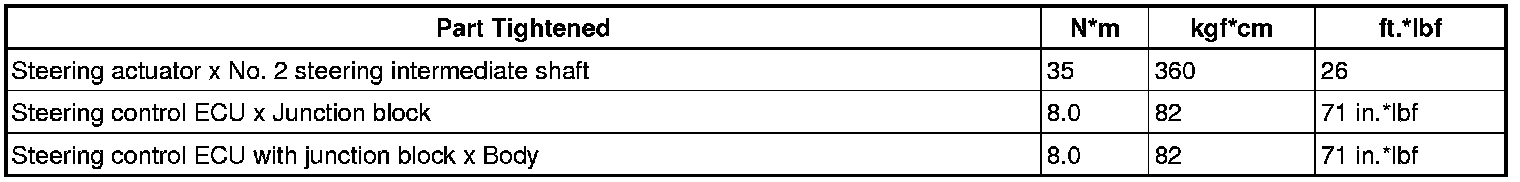

SPECIFICATIONS: VARIABLE GEAR RATIO STEERING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

Steering Actuator
