Installation

3UR-FE STARTING: STARTER: INSTALLATION

INSTALLATION

1. INSTALL STARTER ASSEMBLY





(a) Install the flywheel housing side cover.

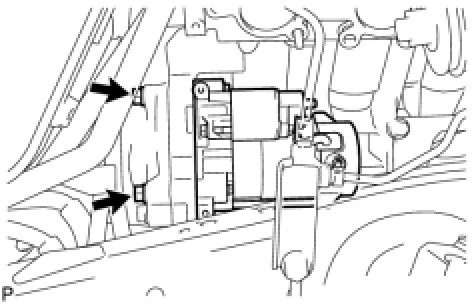

(b) Install the starter with the 2 bolts.
Torque: 37 Nm (377 kgf-cm, 27 ft-lbf)





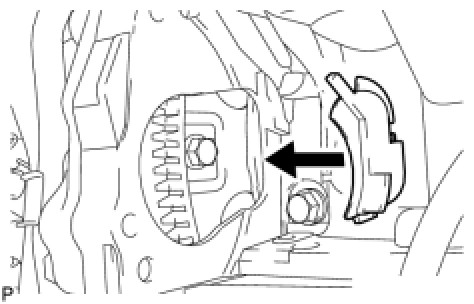

(c) Install the starter wire with the nut.
Torque: 9.8 Nm (100 kgf-cm, 87 in-lbf)
(d) Connect the starter connector.
2. INSTALL STARTER COVER

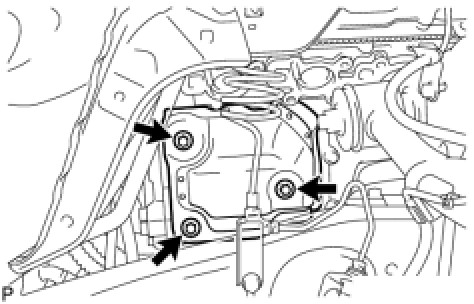

(a) Install the starter cover with the 3 bolts.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
3. INSTALL EXHAUST MANIFOLD SUB-ASSEMBLY RH
(a) Install the exhaust manifold RH Installation.
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.
