Diagnosis System

SEAT: FRONT POWER SEAT CONTROL SYSTEM (w/ Memory): DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

1. DESCRIPTION
(a) Front power seat control system data can be read through the Data Link Connector 3 (DLC3) of the vehicle. When the system seems to be malfunctioning, use the Techstream to check for malfunctions and perform repairs.
2. CHECK DLC3

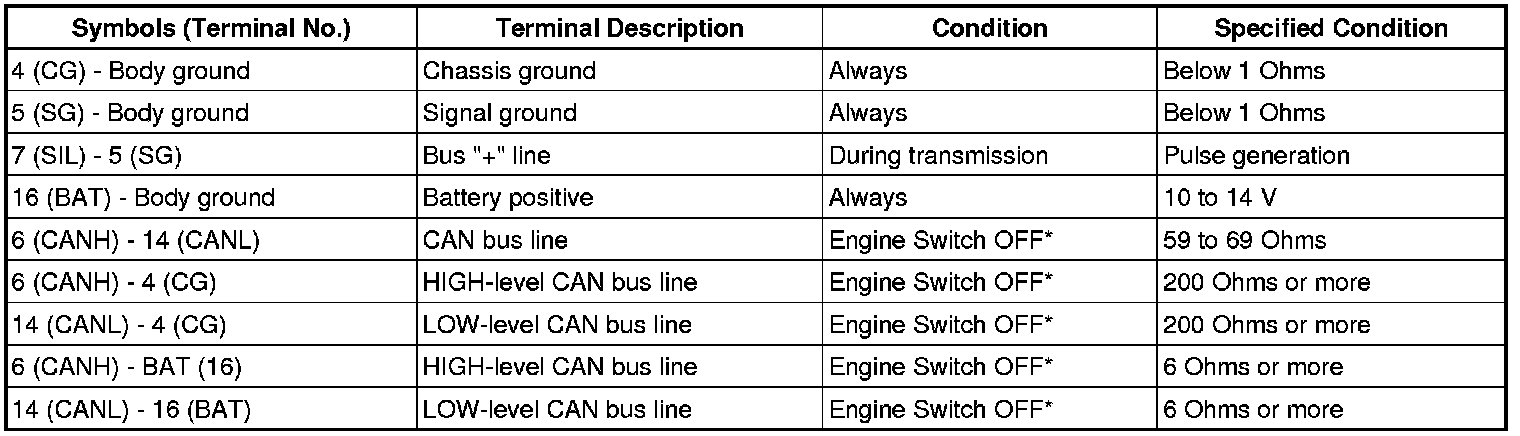

(a) Check the DLC3.
(1) The ECU uses ISO 115765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format





NOTICE:
*: Before measuring the resistance, leave the vehicle as is for at least 1 minute and do not operate the ignition switch, any other switches or the doors.

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.

3. INSPECT BATTERY VOLTAGE
(a) Check the battery voltage.
Standard Voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
