Antilock Brakes / Traction Control Systems: Description and Operation

BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: SYSTEM DESCRIPTION

SYSTEM DESCRIPTION

1. SYSTEM DESCRIPTION
(a) ABS
(Anti-lock Brake System)
The ABS helps prevent wheels from locking when the brake is applied firmly or when braking on a slippery surface.
(b) EBD
(Electronic Brake force Distribution)
The EBD control utilizes ABS, realizing proper brake force distribution between front and rear wheels in accordance with driving conditions. In addition, during cornering braking, it also controls the brake force of the right and left wheels, helping to maintain vehicle behavior.
(c) BA
(Brake Assist)
The primary purpose of the brake assist system is to provide an auxiliary brake force to assist the driver who cannot generate a large enough brake force during emergency braking. This system helps to maximize the brake performance of the vehicle.
(d) TRAC
(Traction Control)
The TRAC system helps prevent the drive wheels from slipping if drive depresses the accelerator pedal excessively when starting off or accelerating on a slippery surface.
(e) VSC
(Vehicle Stability Control)
The VSC system helps prevent the vehicle from slipping sideways as a result of strong front wheel skid or strong rear wheel skid during cornering.








BRAKE CONTROL: VEHICLE STABILITY CONTROL SYSTEM: SYSTEM DIAGRAM

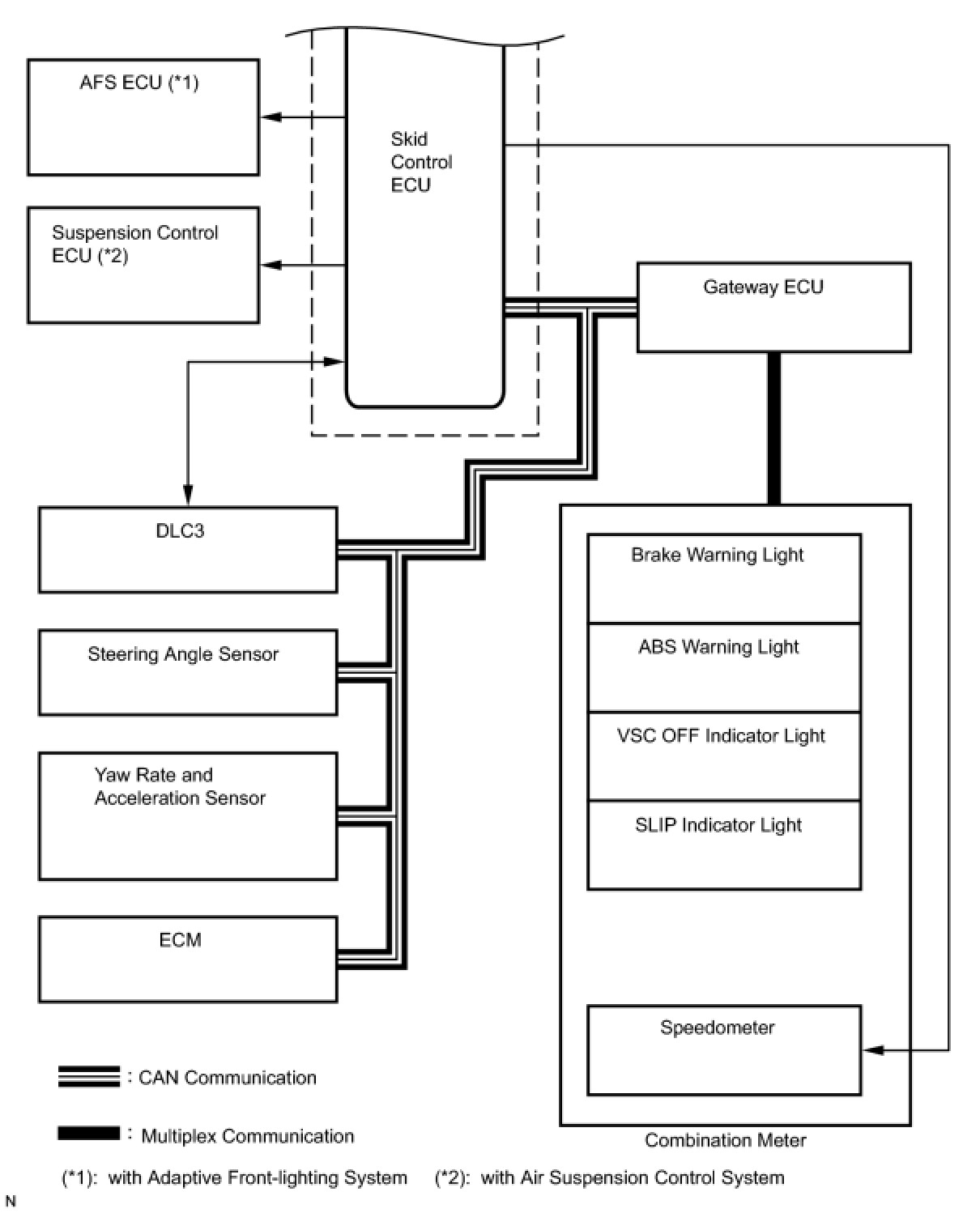

SYSTEM DIAGRAM
