Removal

AXLE: REAR AXLE HUB AND BEARING (for 2WD): REMOVAL

REMOVAL
HINT: Replace the RH side using the same procedures as for the LH side.

1. REMOVE REAR WHEEL
2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH

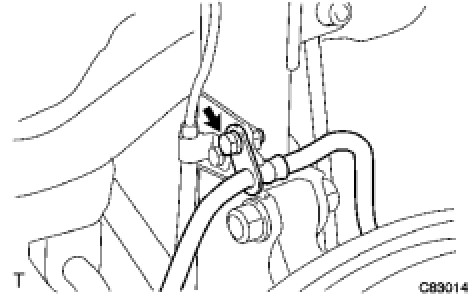

(a) Remove the bolt, and separate the flexible hose from the shock absorber.





(b) Remove the 2 bolts and separate the rear disc brake caliper assembly.
NOTICE:
Use a string or other device to keep the brake caliper from hanging down.

3. REMOVE REAR DISC
4. DISCONNECT SKID CONTROL SENSOR
(a) Disconnect the connector.
5. REMOVE REAR AXLE HUB & BEARING ASSEMBLY LH





(a) Remove the 4 bolts and hub & bearing assembly LH.
