U151F Automatic Transaxle
>>
Differential Case
Differential Case

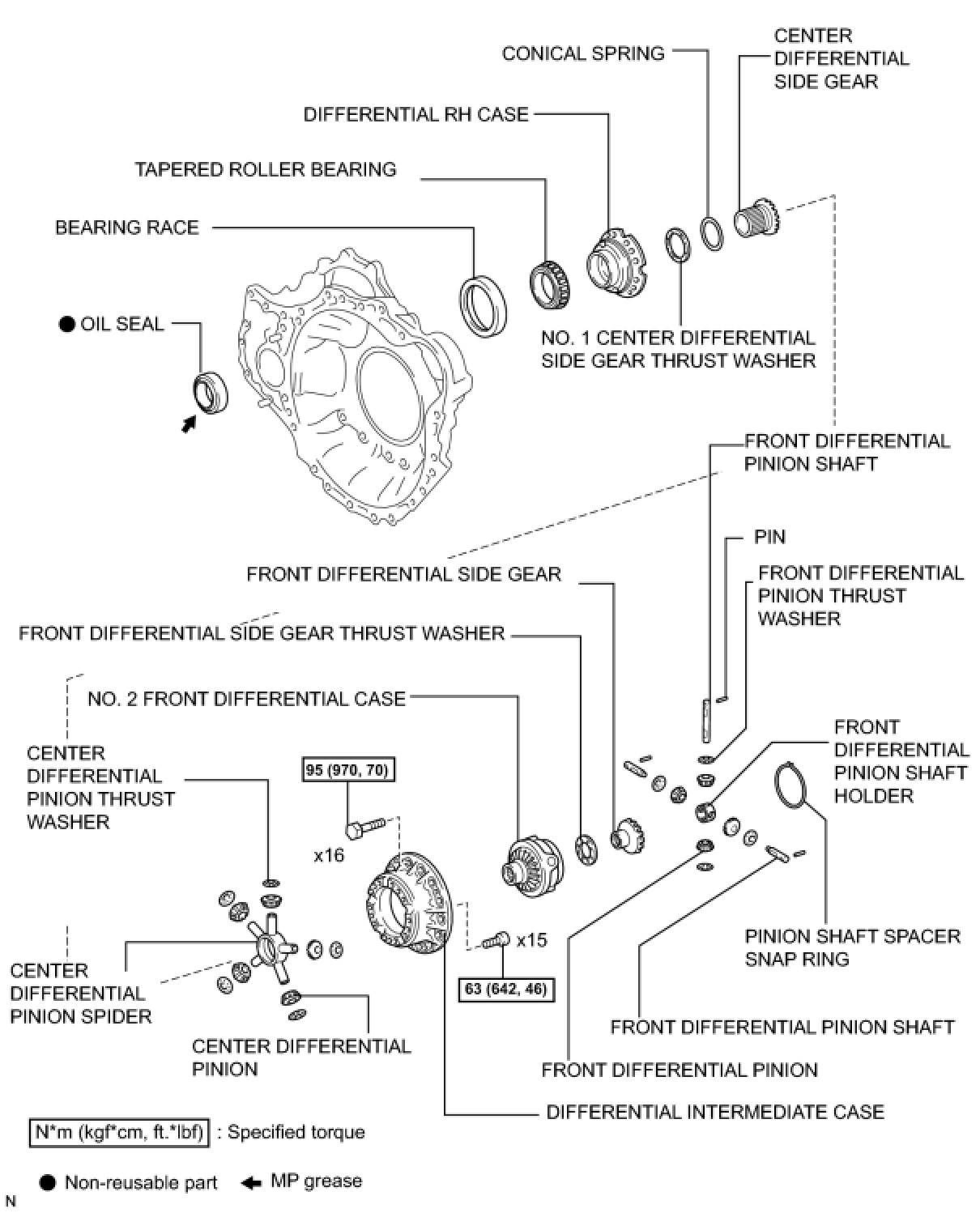

U151F AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: COMPONENTS
COMPONENTS
