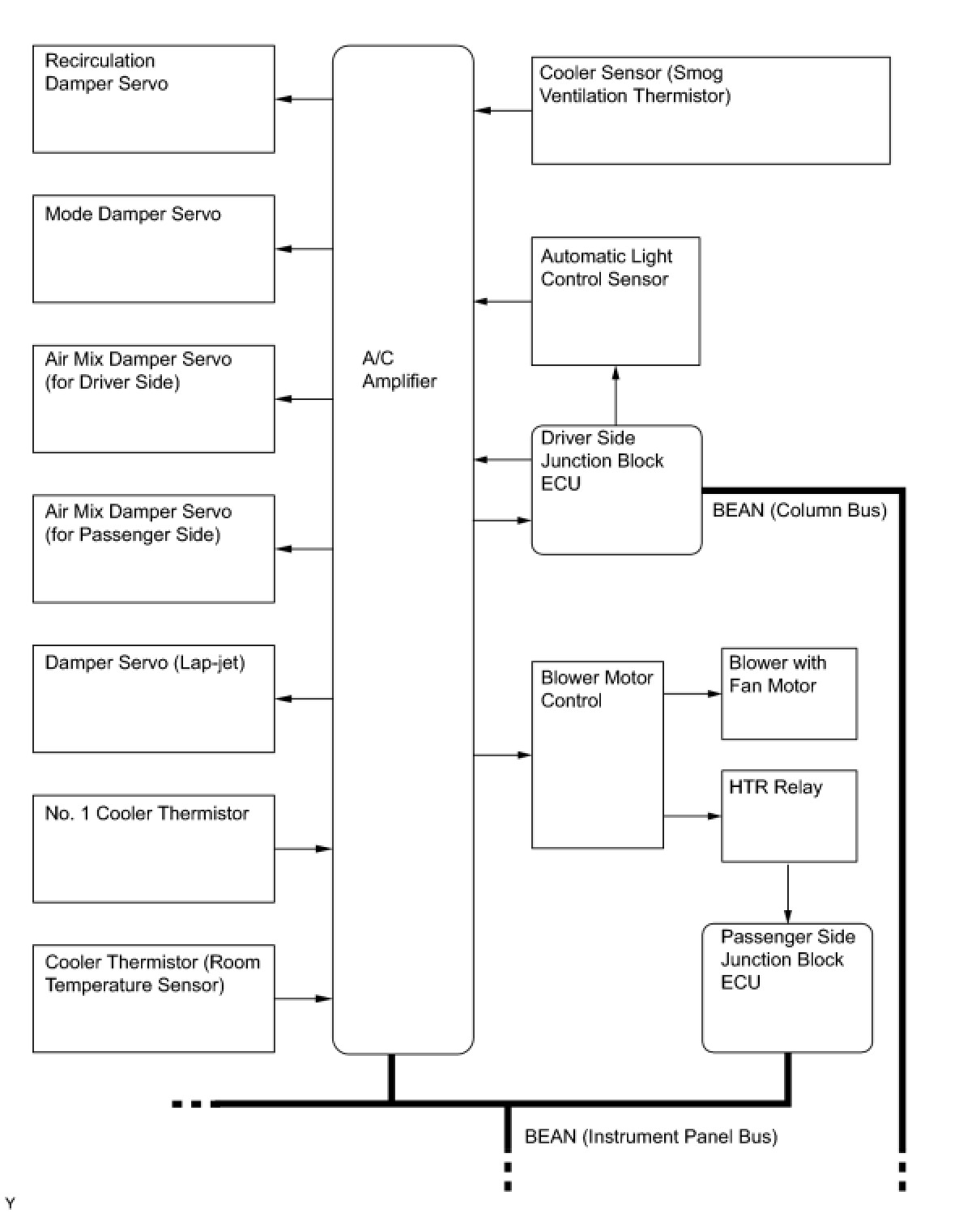

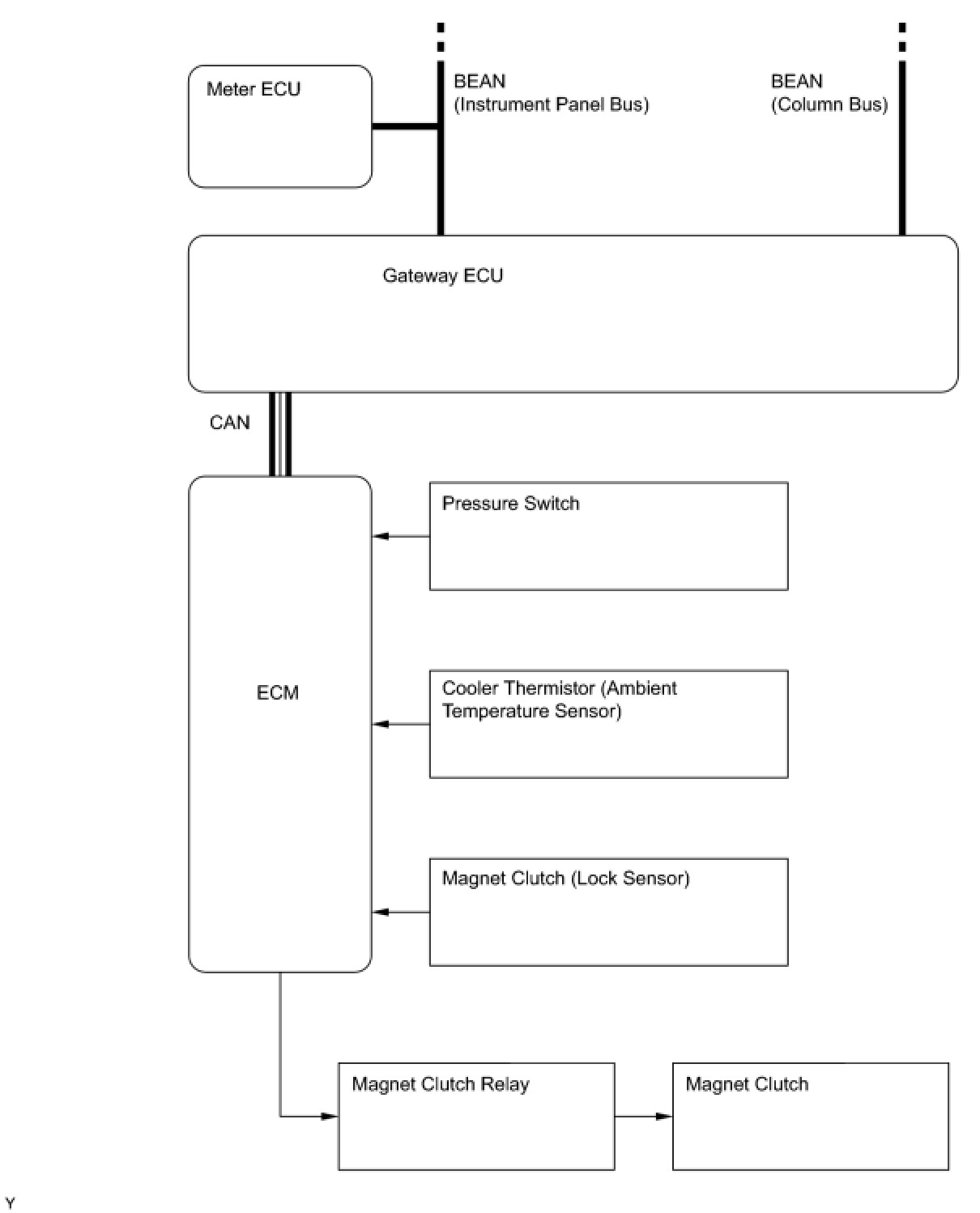

System Diagram
AIR CONDITIONING: AIR CONDITIONING SYSTEM: SYSTEM DIAGRAMSYSTEM DIAGRAM 1.

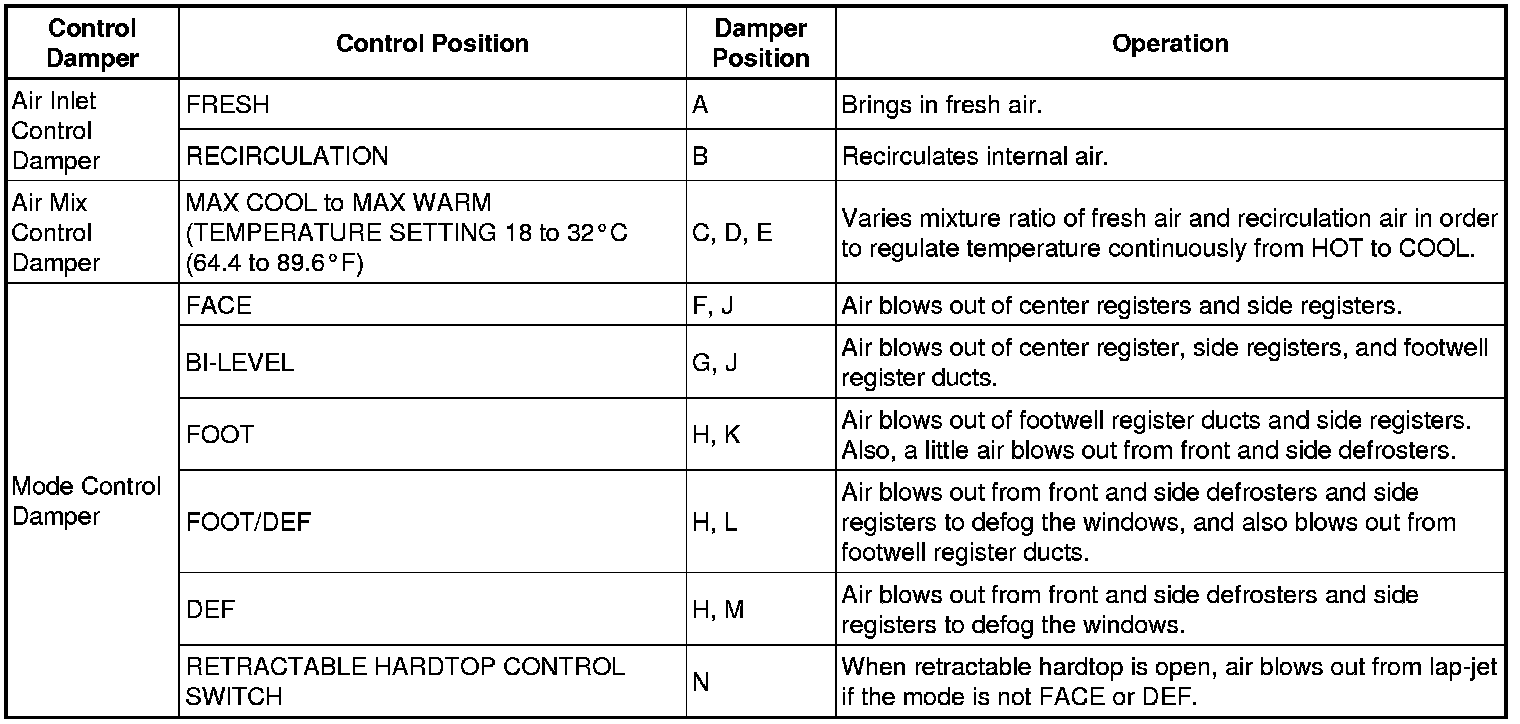

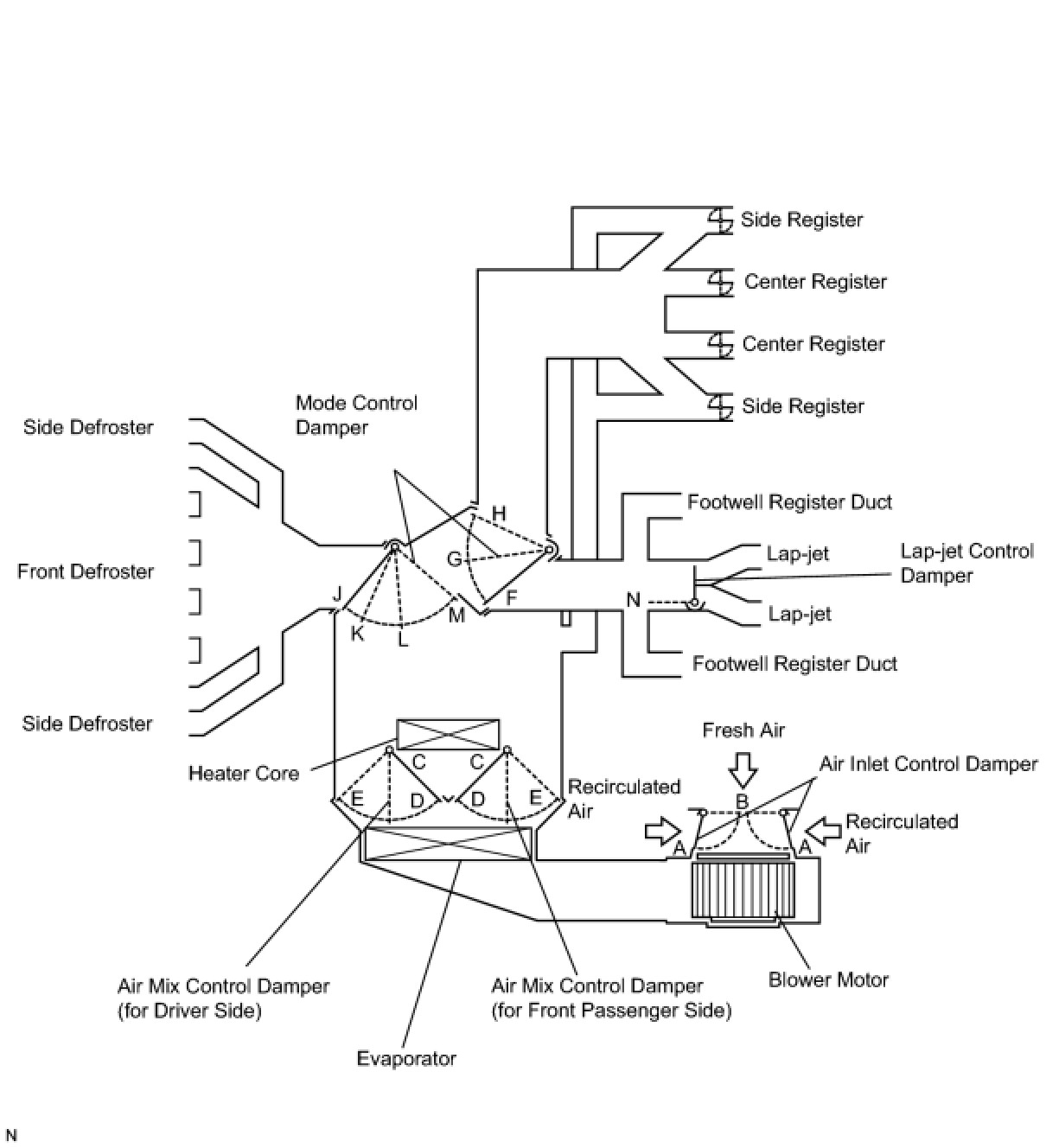

MODE POSITION AND DAMPER OPERATION
2.

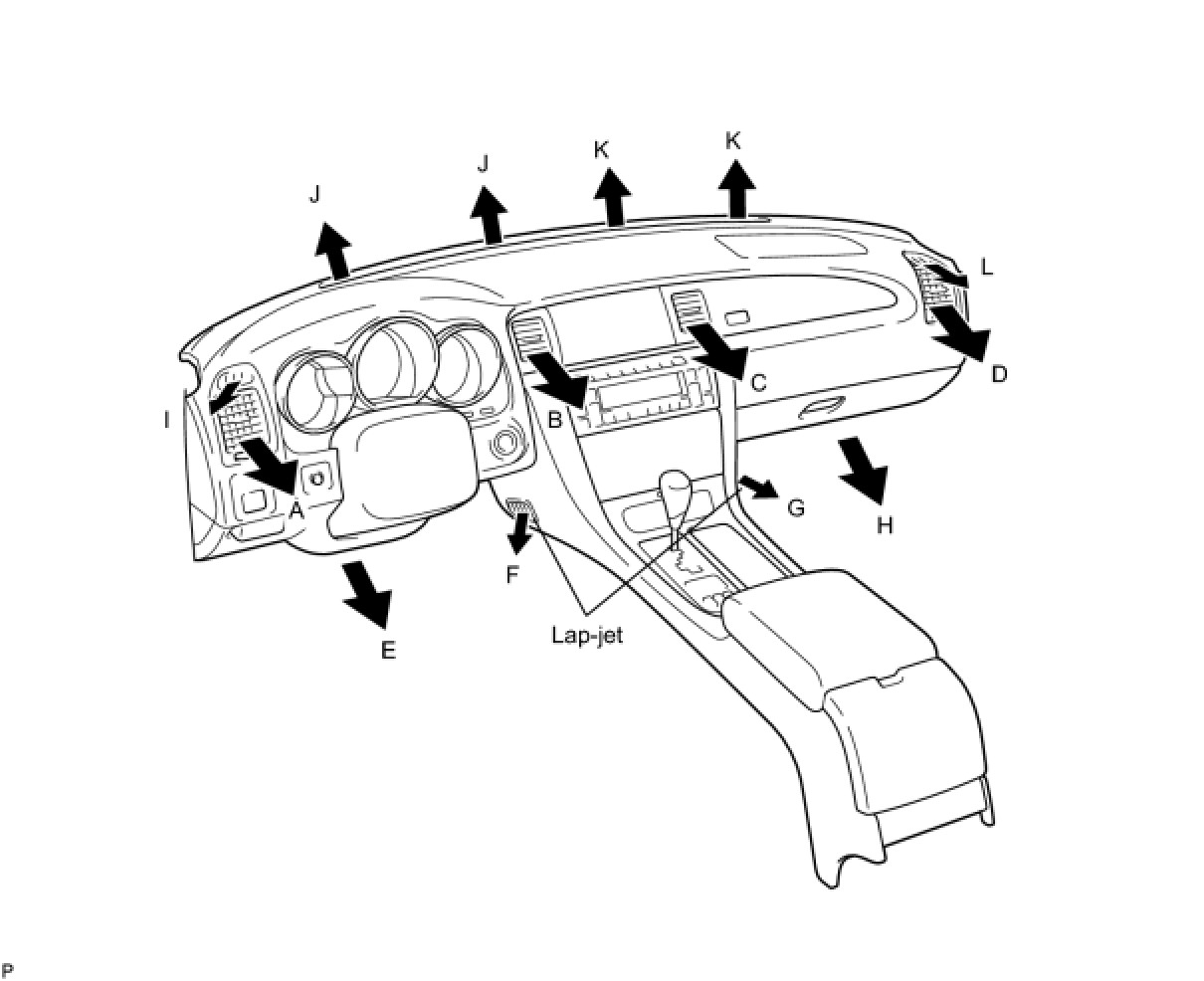

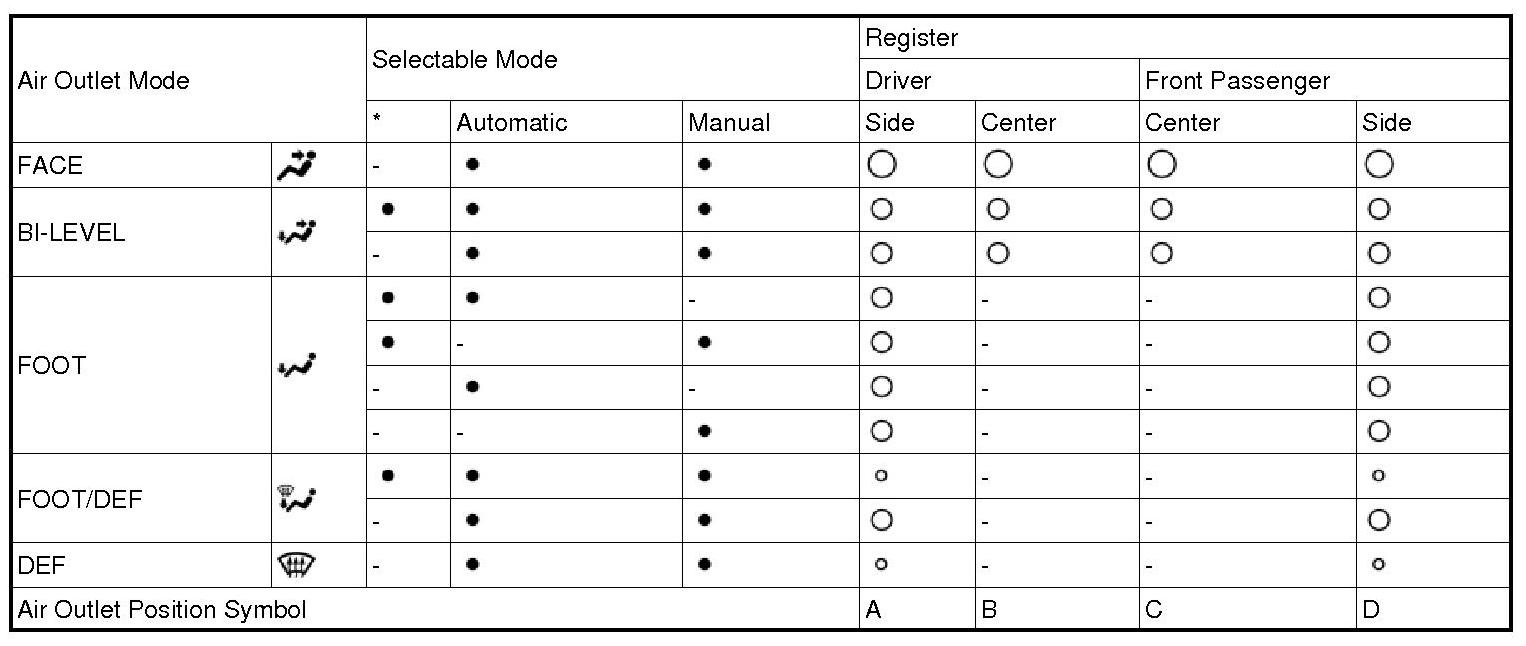

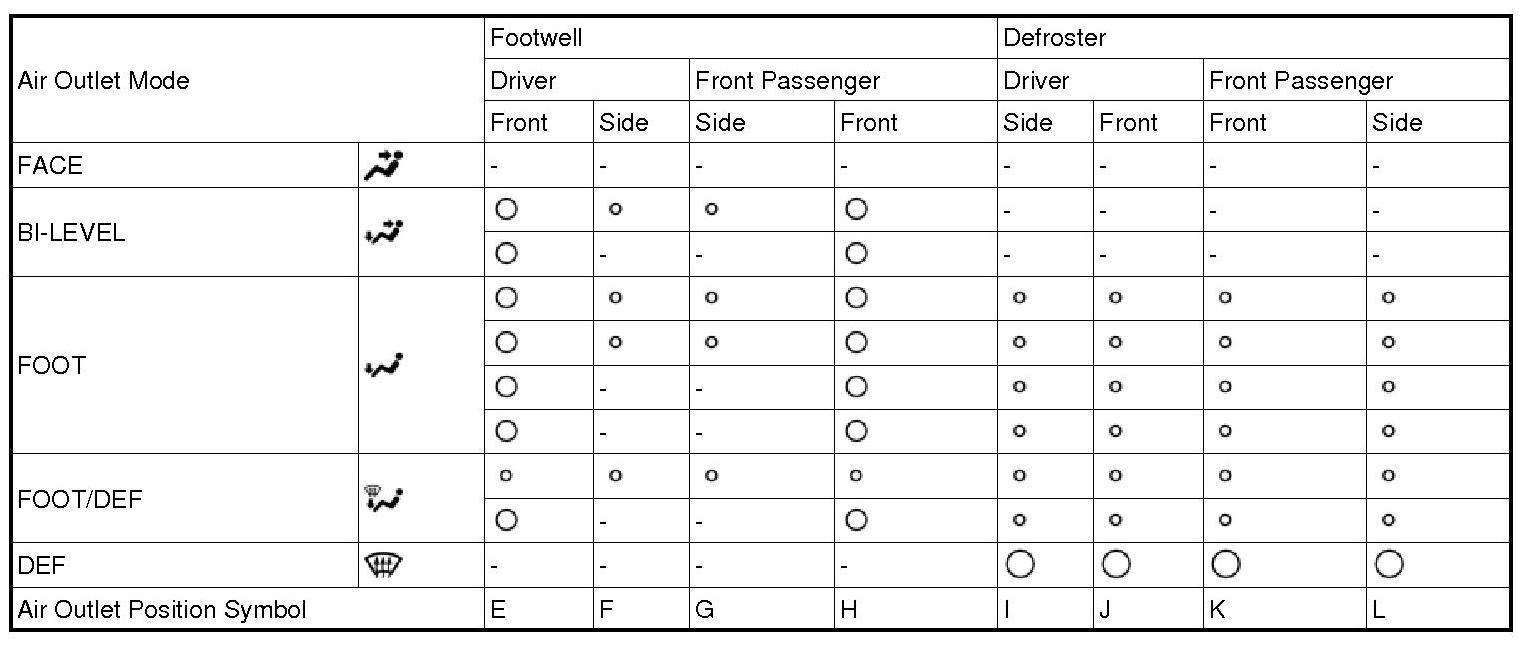

AIR OUTLETS AND AIR VOLUME RATIONS
HINT: -
●: Available
-
-: Not available
-
The size of the white circle indicates the proportion of the airflow volume. There are 3 sizes.
-
*: When the retractable hardtop is opened.
