B1475/75 - A/C Inverter Cooling / Heating System Malfunction

DESCRIPTION

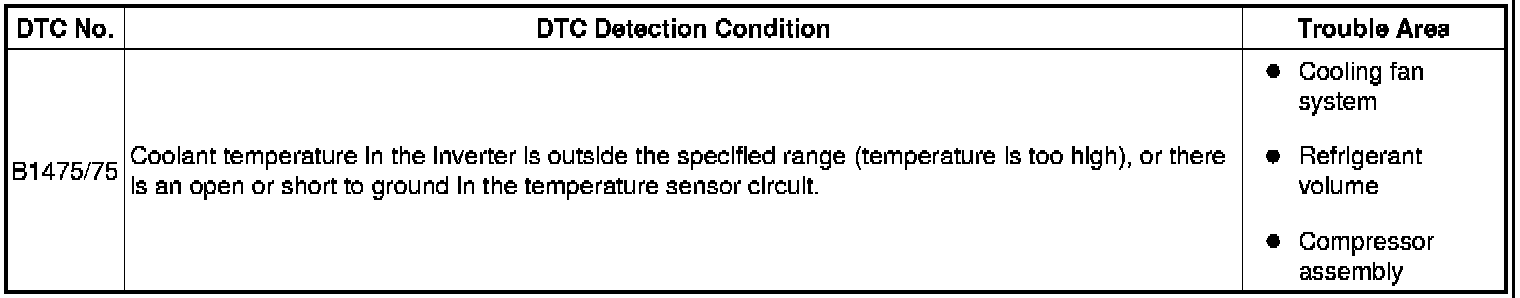

The temperature sensor of the compressor assembly detects the inverter temperature.

If the temperature exceeds the maximum, the compressor assembly stops compressor operation, and DTC will be output.

NOTICE:
This circuit uses both CAN and multiplex communication. Before performing the inspection, check that the CAN and multiplex communication systems are functioning normally.

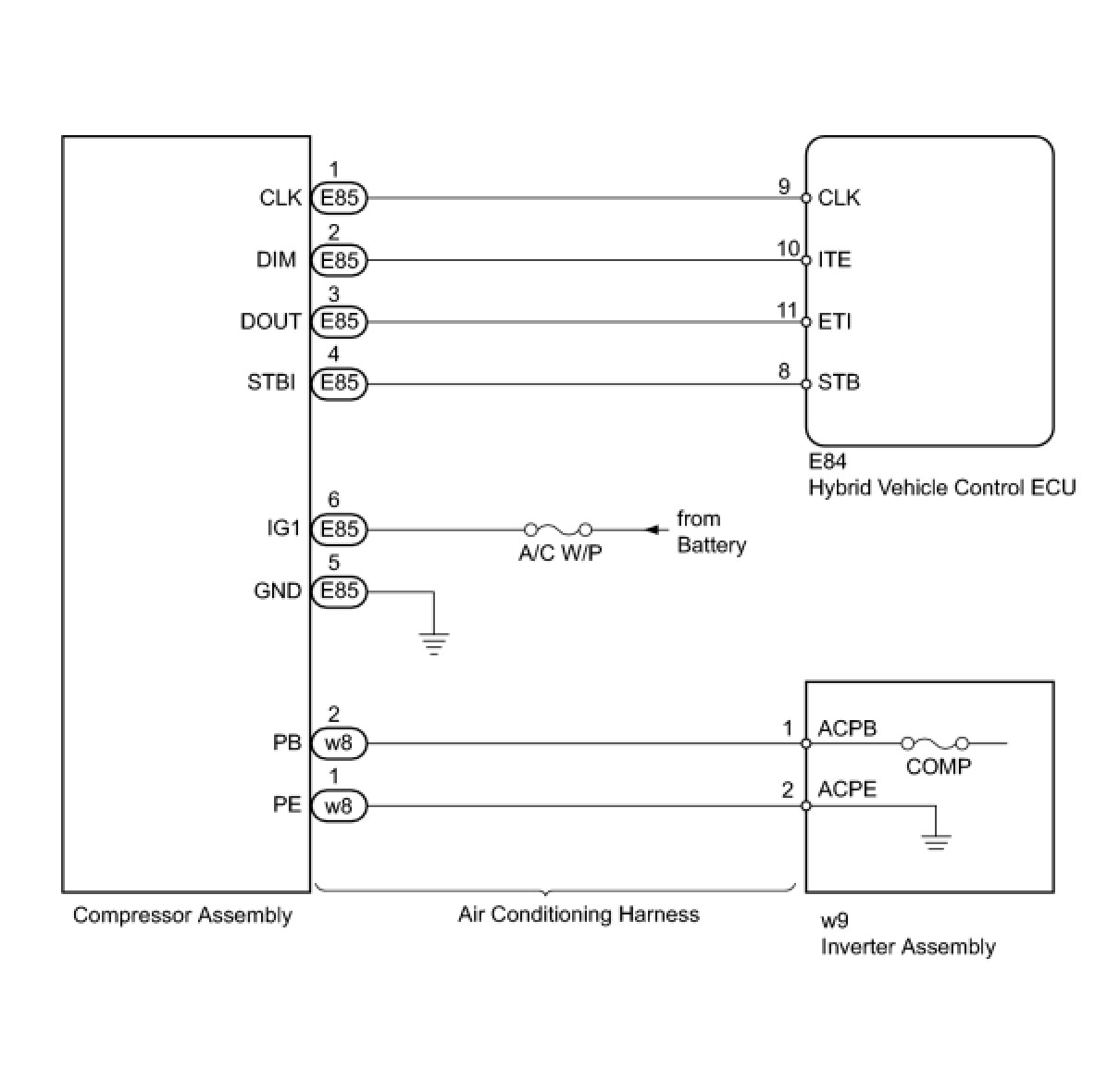

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. PERFORM ACTIVE TEST USING TECHSTREAM

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Select the item below in the Active Test and then check that the fan operates.

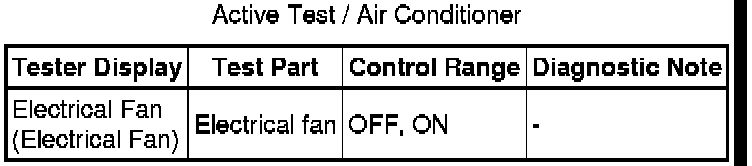

Active Test / Air Conditioner





OK:

Electrical fan operates smoothly.

NG -- GO TO COOLING FAN SYSTEM Testing and Inspection
OK -- Continue to next step.

2. CHECK REFRIGERANT VOLUME

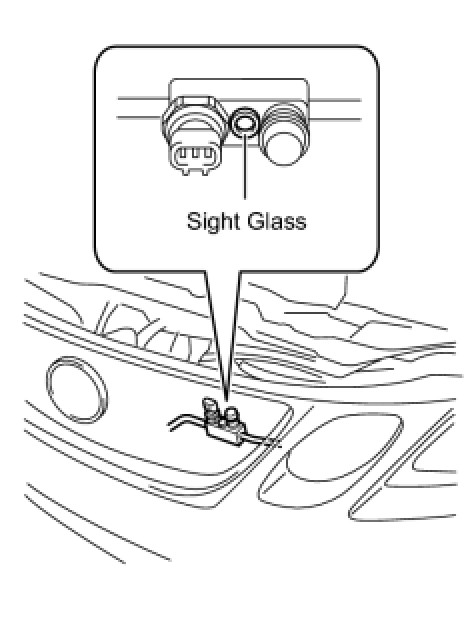

(a) Check the sight glass on the liquid tube.

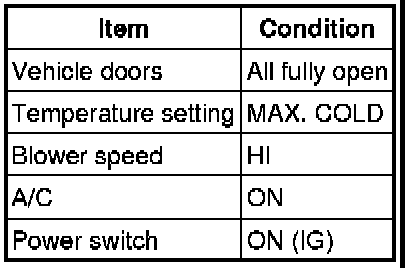

(b) Prepare the vehicle according to the table below.

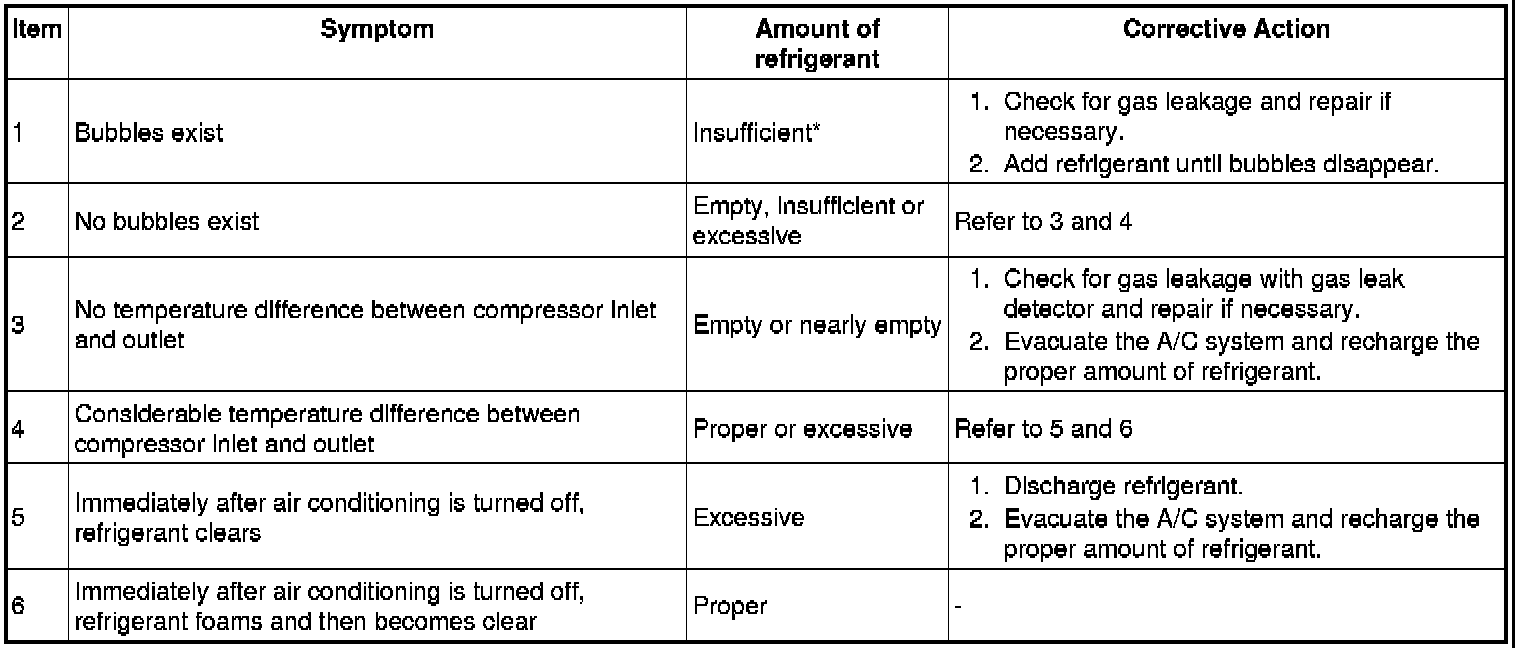

(c) Check the sight glass according to the following table.





HINT
*: Bubbles in the sight glass with the vehicle's interior above 35°C (95°F) can be considered normal if cooling is sufficient.

NOTICE:
* If the amount of refrigerant is low, the compressor may stop in approximately 1 minute.
* If the compressor stops because of any trouble in the compressor assembly, inspection may not be possible. For such cases, the compressor assembly should be replaced.

OK:

Immediately after air conditioning is turned off, refrigerant foams and then becomes clear.

NG -- CHARGE REFRIGERANT
OK -- Continue to next step.

3. READ OUTPUT DTC (DTC B1475/75)

(a) Clear the DTC DTC Check / Clear.

(b) Engine idling.

(c) Blower switch is HI.

(d) A/C switch is ON.

(e) Read the DTC DTC Check / Clear.

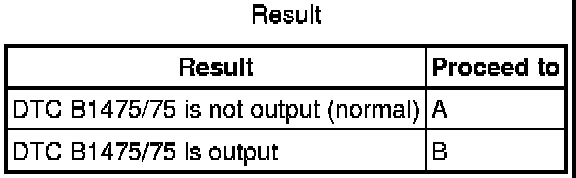

Result





NOTICE:
If the engine keeps idling when ambient temperature is high, the compressor may automatically stop to protect the inverter circuit, and DTC B1475/75 may be stored.

B -- REPLACE COMPRESSOR ASSEMBLY

A -- USE SIMULATION METHOD TO CHECK
