NAVIGATION: NAVIGATION SYSTEM (for HDD): B15A0,B15AD: LAN Master Malfunction

B15AO - LAN Master Malfunction
B15AD - Navigation Processor Malfunction

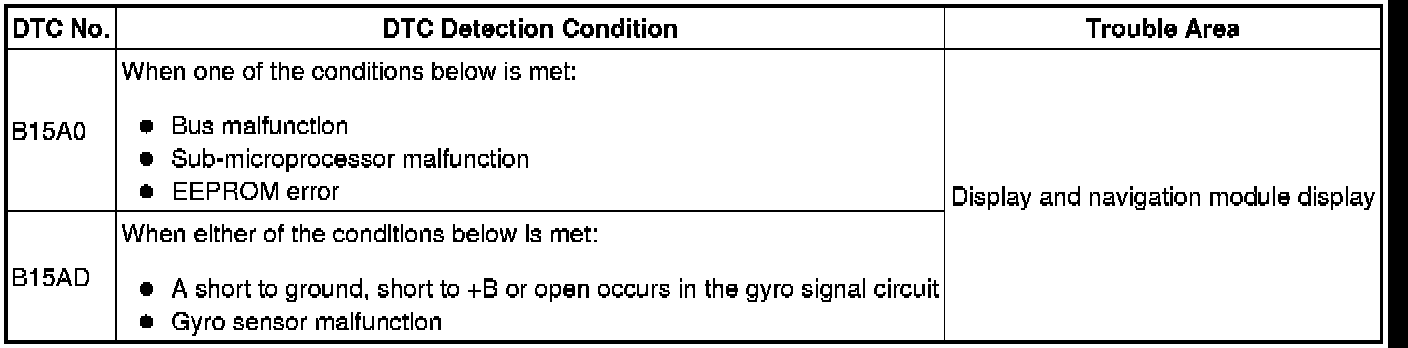

DESCRIPTION

These DTCs are stored when a malfunction occurs in the display and navigation module display.





INSPECTION PROCEDURE

PROCEDURE

1. CHECK DTC

(a) Clear the DTCs Navigation System (for HDD).

(b) Recheck for DTCs and check if the same DTC is output again.

OK:

No DTCs are output.

NG -- REPLACE DISPLAY AND NAVIGATION MODULE DISPLAY Removal

OK -- USE SIMULATION METHOD TO CHECK How To Proceed With Troubleshooting
