B2311
WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: B2311: Power Window Motor Malfunction
B2311 - Power Window Motor Malfunction
DESCRIPTION
The power window regulator motor is operated by the power window switch. The power window regulator motor has motor, regulator and ECU functions.
This DTC is output when the power window regulator motor assembly has a malfunction, or the ECU built into the regulator motor assembly determines that the fully closed window position has deviated approximately 20 mm (0.79 in.) or more from the normal position.
HINT
This DTC may occur for all the windows.
NOTICE:
* When the power window regulator motor is reinstalled or replaced, the power window control system must be initialized.
* After a door glass or a door glass run has been replaced, the jam protection function may operate unexpectedly when the AUTO UP function is used. In such cases, the AUTO UP function can be resumed by repeating the following operation at least 5 times:
(1) Close the power window by fully pulling up the power window switch and holding it in the AUTO UP position.
(2) Open the power window by fully pushing down the switch.
D-Door Motor
P-Door Motor
RL-Door Motor
RR-Door Motor
INSPECTION PROCEDURE
PROCEDURE
1. PERFORM ACTIVE TEST USING TECHSTREAM (POWER WINDOW)
(a) Connect the Techstream to the DLC3.
(b) Turn the power switch on (IG) and press the Techstream main switch on.
(c) Perform the Active Test according to the prompts displayed on the Techstream.
NOTICE:
Be careful to avoid injuries as this test causes vehicle parts to move. During the Active Test, the jam protection function will not operate.
D-Door Motor:
P-Door Motor:
RL-Door Motor:

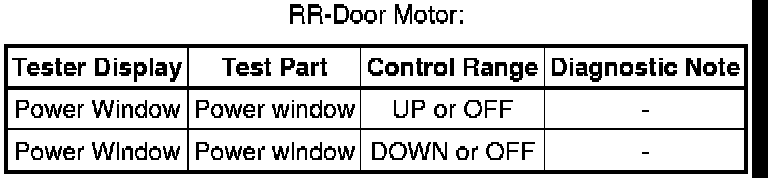

RR-Door Motor:
OK:
Power window operates normally.
Result:
E -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
D -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
C -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
B -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
A -- Continue to next step.
2. PERFORM INITIALIZATION
(a) Initialize the power window regulator motor assembly Initialization.
(b) Check that the power window operates normally by opening and closing the window.
OK:
Power window operates normally.
Result:
E -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
D -- REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
C -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH
B -- REPLACE FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH
A -- Continue to next step.
3. CHECK WHETHER PARTS HAVE BEEN INSTALLED CORRECTLY
(a) Check that the power window components are installed correctly.
OK:
Power window components are installed correctly.
HINT
If the power window components are installed correctly, the problem was caused by a battery disconnection while the power switch was on (IG), improper installation of the power window components, or the motor overheating.
NG -- INSTALL PARTS CORRECTLY
OK -- END
