C1525

POWER STEERING: POWER STEERING SYSTEM: C1515,C1525: Torque Sensor Zero Point Adjustment Undone


DESCRIPTION

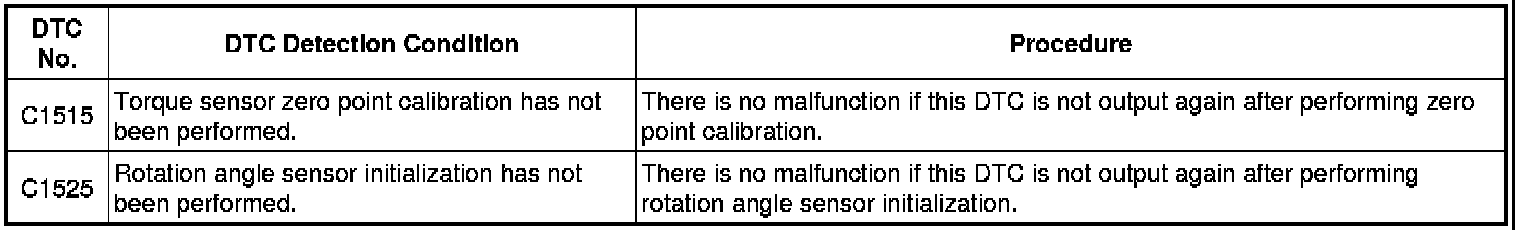

These DTCs do not indicate a malfunction. The power steering ECU outputs these DTCs when it determines that rotation angle sensor initialization and torque sensor zero point calibration have not been performed.





INSPECTION PROCEDURE

PROCEDURE

1. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

(a) Initialize the rotation angle sensor, and calibrate the torque sensor zero point Power Steering System.

NEXT -- Continue to next step.

2. RECONFIRM DTC

(a) Check for DTCs.

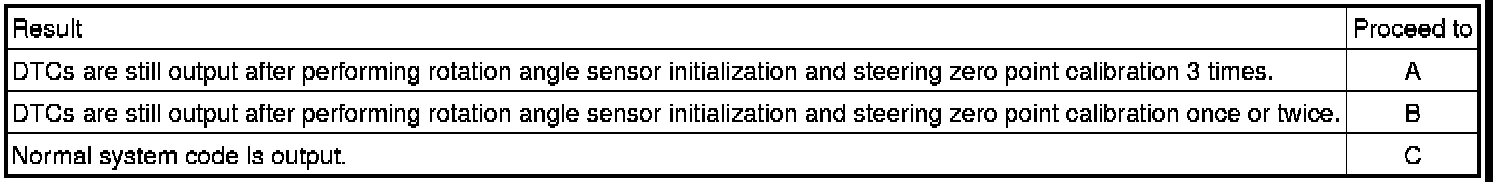

Result:





C -- END

B -- INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT
A -- Continue to next step.

3. REPLACE POWER STEERING ECU

NEXT -- Continue to next step.

4. INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

(a) Initialize the rotation angle sensor and calibrate the torque sensor zero point Power Steering System.

NEXT -- Continue to next step.

5. RECONFIRM DTC

(a) Check for DTCs.

Result:





NOTICE:
- If replacing the power steering link assembly, clear the rotation angle sensor calibration value, initialize the rotation angle sensor, and calibrate the torque sensor zero point Power Steering System.
- If replacing the power steering link assembly, perform VGRS actuator angle initialization Initialization and VGRS actuator angle neutral calibration Calibration after wheel alignment adjustment.

C -- END

B -- INITIALIZE ROTATION ANGLE SENSOR AND CALIBRATE TORQUE SENSOR ZERO POINT

A -- REPLACE POWER STEERING LINK ASSEMBLY
