P0110
2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0110,P0112,P0113: Intake Air Temperature Circuit Malfunction
DESCRIPTION
- The Intake Air Temperature (IAT) sensor, mounted on the Mass Air Flow (MAF) meter, monitors the IAT. The IAT sensor has a built-in thermistor with a resistance that varies according to the temperature of the intake air. When the IAT is low, the resistance of the thermistor increases. When the temperature is high, the resistance drops. These variations in resistance are transmitted to the ECM as voltage changes (see Fig. 1).
- The IAT sensor is powered by a 5 V supply from the THA terminal of the ECM, via resistor R.
- Resistor R and the IAT sensor are connected in series. When the resistance value of the IAT sensor changes, according to changes in the IAT, the voltage at terminal THA also varies. Based on this signal, the ECM increases the fuel injection volume when the engine is cold to improve driveability.
HINT
When any of DTCs P0110, P0112 and P0113 are set, the ECM enters fail-safe mode. During fail-safe mode, the IAT is estimated to be 20°C (68°F) by the ECM. Fail-safe mode continues until a pass condition is detected.
HINT
When any of these DTCs are set, check the IAT by entering the following menus on the Techstream: Powertrain / Engine and ECT / Data List / Intake Air.
MONITOR DESCRIPTION
The ECM monitors the sensor voltage and uses this value to calculate the IAT. When the sensor output voltage deviates from the normal operating range, the ECM interprets this as a malfunction in the IAT sensor and sets a DTC.
Example:
If the sensor output voltage is more than 4.91 V for 0.5 seconds or more, the ECM determines that there is an open in the IAT sensor circuit, and sets DTC P0113. Conversely, if the output voltage is less than 0.18 V for 0.5 seconds or more, the ECM determines that there is a short in the sensor circuit, and sets DTC P0112.
If the malfunction is not repaired successfully, a DTC is set 0.5 seconds after the engine is next started.
MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
TYPICAL MALFUNCTION THRESHOLDS
P0110:
P0112:
P0113:
COMPONENT OPERATING RANGE
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. READ OUTPUT DTC
(a) Connect the Techstream to the DTC3.
(b) Turn the power switch on (IG) and turn the Techstream on.
(c) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.
(d) Read the DTCs.

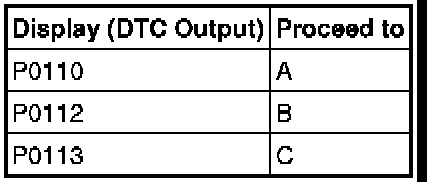

Result:
C -- READ VALUE USING TECHSTREAM (CHECK FOR OPEN IN WIRE HARNESS)
B -- READ VALUE USING TECHSTREAM (CHECK FOR SHORT IN WIRE HARNESS)
A -- Continue to next step.
2. READ VALUE USING TECHSTREAM (INTAKE AIR TEMPERATURE)
(a) Put the engine in inspection mode Inspection Mode Procedure.
(b) Connect the Techstream to the DLC3.
(c) Turn the Techstream on.
(d) Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.
(e) Read the value displayed on the Techstream.
Standard:
Same as actual Intake Air Temperature (IAT).
Result:
HINT
- If there is an open circuit, the Techstream indicates -40°C (-40°F).
- If there is a short circuit, the Techstream indicates 140°C (284°F) or higher.
C -- CHECK FOR INTERMITTENT PROBLEMS
B -- READ VALUE USING TECHSTREAM (CHECK FOR SHORT IN WIRE HARNESS)
A -- Continue to next step.
3. READ VALUE USING TECHSTREAM (CHECK FOR OPEN IN WIRE HARNESS)
(a) Disconnect the E42 Mass Air Flow (MAF) meter connector.
(b) Connect terminals THA and E2 of the MAF meter wire harness side connector.
(c) Connect the Techstream to the DLC3.
(d) Turn the power switch on (IG).
(e) Turn the Techstream on.
(f) Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.
(g) Read the value displayed on the Techstream.
Standard:
140°C (284°F) or higher
(h) Reconnect the MAF meter connector.
OK -- CONFIRM GOOD CONNECTION TO SENSOR. IF OK, REPLACE MASS AIR FLOW METER
NG -- Continue to next step.
4. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
(a) Disconnect the E42 MAF meter connector.
(b) Disconnect the E83 ECM connector.
(c) Measure the resistance.
Standard resistance:
(d) Reconnect the MAF meter connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- CONFIRM GOOD CONNECTION TO ECM. IF OK, REPLACE ECM Removal
5. READ VALUE USING TECHSTREAM (CHECK FOR SHORT IN WIRE HARNESS)
(a) Disconnect the E42 MAF meter connector.
(b) Connect the Techstream to the DLC3.
(c) Turn the power switch on (IG).
(d) Turn the Techstream on.
(e) Enter the following menus: Powertrain / Engine and ECT / Data List / Intake Air.
(f) Read the value displayed on the Techstream.
Standard:
-40°C (-40°F)
(g) Reconnect the MAF meter connector.
OK -- REPLACE MASS AIR FLOW METER
NG -- Continue to next step.
6. CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER - ECM)
(a) Disconnect the E42 MAF meter connector.
(b) Disconnect the E83 ECM connector.
(c) Measure the resistance.
Standard resistance:
(d) Reconnect the MAF meter connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- REPLACE ECM Removal
