2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0300-P0306: Random / Multiple Cylinder Misfire Detected

DTC P0300 - Random / Multiple Cylinder Misfire Detected

DTC P0301 - Cylinder 1 Misfire Detected

DTC P0302 - Cylinder 2 Misfire Detected

DTC P0303 - Cylinder 3 Misfire Detected

DTC P0304 - Cylinder 4 Misfire Detected

DTC P0305 - Cylinder 5 Misfire Detected

DTC P0306 - Cylinder 6 Misfire Detected

DESCRIPTION

When the engine misfires, high concentrations of hydrocarbons (HC) enter the exhaust gas. Extremely high HC concentration levels can cause an increase in exhaust emission levels. High concentrations of HC can also cause increases in the Three-Way Catalytic Converter (TWC) temperature, which may cause damage to the TWC. To prevent this increase in emissions and to limit the possibility of thermal damage, the ECM monitors the misfire rate. When the temperature of the TWC reaches the point of thermal degradation, the ECM blinks the MIL. To monitor misfires, the ECM uses both the VVT sensor and the Crankshaft Position (CKP) sensor. The VVT sensor is used to identify any misfiring cylinders and the CKP sensor is used to measure variations in the crankshaft rotation speed. Misfires are counted when the crankshaft rotation speed variations exceed predetermined thresholds.

If the misfire exceeds the threshold levels and may cause emission deterioration, the ECM illuminates the MIL and sets a DTC.





If DTCs that indicate misfires are set for different cylinders, but DTC P0300 is not set, it indicates that misfires have been detected in different cylinders at different times. DTC P0300 is only set when several misfiring cylinders are detected at the same time.

MONITOR DESCRIPTION





The ECM illuminates the MIL and sets a DTC when either one of the following conditions, which could cause emission deterioration, is detected (2 trip detection logic):

- Within the first 1000 crankshaft revolutions of the engine starting, an excessive misfiring rate (approximately 20 to 60 misfires per 1000 crankshaft revolutions) occurs once.

- After the first 1000 crankshaft revolutions, an excessive misfiring rate (approximately 20 to 60 misfires per 1000 crankshaft revolutions) occurs 4 times in sequential crankshaft revolutions.

The ECM flashes the MIL and sets a DTC when either one of the following conditions, which could cause the Three-Way Catalytic Converter (TWC) damage, is detected (2 trip detection logic):

- In every 200 crankshaft revolutions at a high engine rpm, the threshold misfiring percentage is recorded once.

- In every 200 crankshaft revolutions at a normal engine rpm, the threshold misfiring percentage is recorded 3 times.

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS

Misfire:





Monitor period of emission-related-misfire:





Monitor period of catalyst-damaged-misfire (MIL blinks):





TYPICAL MALFUNCTION THRESHOLDS

Monitor period of emission-related-misfire:





Monitor period of catalyst-damage-misfire (MIL blinks):





MONITOR RESULT

Refer to CHECKING MONITOR STATUS Mode 6 Data.

WIRING DIAGRAM

Refer to DTC P0200 P0200.

Refer to DTC P0351 P0351.

Refer to DTC P1276 P1276.

CONFIRMATION DRIVING PATTERN

1. Put the engine in inspection mode Inspection Mode Procedure.

2. Connect the Techstream to the DLC3.

3. Turn the Techstream on.

4. Record the DTC(s) and freeze frame data.

5. Using the Techstream, switch the ECM from normal mode to check mode Inspection Mode Procedure.

6. Read the misfire counts of each cylinder (Cylinder #1 to #6) with the engine in an idling condition. If any misfire count is displayed, skip the following confirmation driving pattern.

7. Drive the vehicle several times with the conditions, such as engine rpm and engine load, shown in Misfire RPM and Misfire Load in the Data List.

HINT
In order to store misfire DTCs, it is necessary to operate the vehicle for the period of time shown in the table below, using the Misfire RPM and Misfire Load in the Data List.





8. Check whether misfires have occurred by checking DTCs and freeze frame data.

HINT
Do not turn the power switch off until the stored DTC(s) and freeze frame data have been recorded. When the ECM returns to normal mode (default), the stored DTC(s), freeze frame data and other data will be erased.

9. Record the DTC(s), freeze frame data and misfire counts.

10. Turn the power switch off and wait for at least 5 seconds.

INSPECTION PROCEDURE

HINT
- If any DTCs other than misfire DTCs are output, troubleshoot those DTCs first.
- Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
- If the misfire does not recur when the vehicle is brought to the workshop, reproduce the conditions stored in the ECM as freeze frame data.
- If the misfire still cannot be reproduced even though the conditions stored in the ECM as freeze frame data have been reproduced, one of the following factors is considered to be a possible cause of the problem:
(1) There was insufficient fuel in the tank.
(2) Improper fuel is used.
(3) The spark plugs have been contaminated.
(4) The problem requires further diagnosis.
- After finishing repairs, check the misfire counts of the cylinders (Cylinder #1 to #6 Misfire Count).
- Be sure to confirm that no misfiring cylinder DTCs are set again by conducting the confirmation driving pattern after finishing repairs.
- For 6 and 8 cylinder engines, the ECM intentionally does not set the specific misfiring cylinder DTCs at high engine RPM. If misfires occur only in high engine RPM areas, only DTC P0300 is set.
In the event of DTC P0300 being present, perform the following operations:
(1) Put the engine in inspection mode Inspection Mode Procedure.
(2) Turn the power switch on (IG) and turn the Techstream on.
(3) Clear the DTC DTC Check / Clear.
(4) Conduct the confirmation driving pattern.
(5) Read the misfiring rates of each cylinder or DTC(s) using the Techstream.
(6) Repair the cylinder(s) that has a high misfiring rate or is indicated by the DTC.
(7) After finishing repairs, conduct the confirmation driving pattern again, in order to verify that DTC P0300 is not set.
- When one of Short FT #1, Long FT #1, Short FT #2 or Long FT #2 in the freeze frame data is outside the range of +-20%, the air-fuel ratio may be Rich (-20% or less) or Lean (+20% or more).
- When the Coolant Temp in the freeze frame data is less than 75°C (167°F), the misfire has occurred only while warming up the engine.
- An extremely imbalanced drive wheel which causes body vibration may cause misfire DTCs to be detected.

PROCEDURE

1. CHECK ANY OTHER DTC OUTPUT (IN ADDITION TO MISFIRE DTCS)

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes.

(e) Read the DTCs.

Result:





HINT
If any DTCs other than P0300, P0301, P0302, P0303, P0304, P0305 and P0306 are output, troubleshoot those DTCs first.

B -- GO TO DTC CHART
A -- Continue to next step.

2. CHECK VENTILATION HOSE (HOSE CONNECTIONS)

OK:

Ventilation hose is connected correctly and is not damaged.

NG -- REPAIR OR REPLACE VENTILATION HOSE
OK -- Continue to next step.

3. READ VALUE USING TECHSTREAM (MISFIRE RPM AND MISFIRE LOAD)

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List / Misfire RPM and Misfire Load.

(e) Read and note the Misfire RPM and Misfire Load (engine load) values.

HINT
The Misfire RPM and Misfire Load values indicate the vehicle conditions under which the misfire occurred.

NEXT -- Continue to next step.

4. CHECK MISFIRE COUNT OF PORT INJECTION (CYLINDER #1, #2, #3, #4, #5 AND #6 MISFIRE COUNT)

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Way / Port. (Procedure "A")

(f) Allow the engine to idle.

(g) Monitor all of the misfire count values that are displayed on the Techstream: Powertrain / Engine and ECT / Data List / Misfire / Cylinder #1 Misfire Count to Cylinder #6 Misfire Count.

If no misfire counts occur for any of the cylinders, perform the following procedure: (Procedure "B")

(1) Move the shift lever to D.

(2) Repeat procedure "A" to "B" above.

(3) Monitor all of the misfire count values that are displayed on the Techstream.

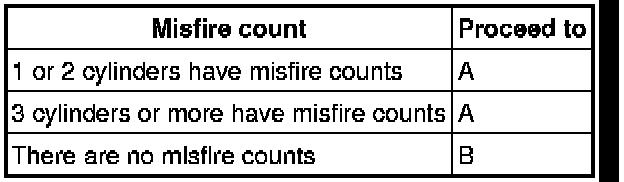

Result:





B -- CHECK MISFIRE COUNT OF DIRECT INJECTION (CYLINDER #1, #2, #3, #4, #5 AND #6 MISFIRE COUNT)
A -- Continue to next step.

5. CHECK MISFIRE COUNT OF DIRECT INJECTION (CYLINDER #1, #2, #3, #4, #5 AND #6 MISFIRE COUNT)

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Clear the DTCs DTC Check / Clear.

(e) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Way / Direct. (Procedure "A")

(f) Allow the engine to idle.

(g) Monitor all of the misfire count values that are displayed on the Techstream: Powertrain / Engine and ECT / Data List / Misfire / Cylinder #1 Misfire Count to Cylinder #6 Misfire Count.

If no misfire counts occur for any of the cylinders, perform the following procedure: (Procedure "B")

(1) Move the shift lever to D.

(2) Repeat procedure "A" to "B" above.

(3) Monitor all of the misfire count values that are displayed on the Techstream.

Result:





D -- CHECK FUEL PRESSURE (LOW PRESSURE SIDE)

C -- REPLACE FUEL INJECTOR FOR PORT INJECTION (MISFIRING CYLINDER)

B -- CHECK AIR INDUCTION SYSTEM
A -- Continue to next step.

6. CHECK SPARK PLUG





(a) Remove the ignition coil and the spark plug of the misfiring cylinder.

(b) Measure the spark plug electrode gap.

Maximum Electrode Gap for Used Spark Plug:

1.4 mm (0.0551 in.)

If the gap is grated than the maximum, replace the spark plug.

Electrode Gap for New Spark Plug:

1.0 to 1.1 mm (0.0394 to 0.0433 in.)

(c) Check the electrode for carbon deposits.

Recommended spark plug:





NOTICE:
If the electrode gap is larger than standard, replace the spark plug. Do not adjust the electrode gap.

(d) Reinstall the ignition coil and the spark plug.

NG -- REPLACE SPARK PLUG
OK -- Continue to next step.

7. CHECK FOR SPARK AND IGNITION

(a) Perform a spark test Testing and Inspection.

CAUTION:
During the test, disconnect all fuel injector assembly connectors.

NOTICE:
Do not crank the engine for more than 2 seconds.

OK:

Spark jumps a cross electrode gap.

NG -- CHANGE SPARK PLUG
OK -- Continue to next step.

8. CHECK CYLINDER COMPRESSION PRESSURE (MALFUNCTION CYLINDER)

(a) Measure the cylinder compression pressure of the misfiring cylinder.

OK -- REPLACE ECM Removal

NG -- REPAIR OR REPLACE ENGINE TO DETERMINE CAUSE OF LOW COMPRESSION

9. CHANGE SPARK PLUG

(a) Change the installed spark plug to a spark plug that functions normally.

(b) Perform a spark test.

CAUTION:
Always disconnect each injector connector.

NOTICE:
Do not crank the engine for more than 2 seconds.

(1) Install the spark plug to the ignition coil and connect the ignition coil connector.

(2) Disconnect the injector connector.

(3) Ground the spark plug.

(4) Check if spark occurs while the engine is being cranked.

OK:

Spark jumps across the electrode gap.

NG -- REPLACE IGNITION COIL ASSEMBLY THEN CONFIRM THAT THERE IS NO MISFIRE

OK -- REPLACE SPARK PLUG

10. CHECK AIR INDUCTION SYSTEM

(a) Check the air induction system for vacuum leakage.

OK:

No leakage from air induction system.

NG -- REPAIR OR REPLACE AIR INDUCTION SYSTEM
OK -- Continue to next step.

11. READ VALUE USING TECHSTREAM (COOLANT TEMP)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List / Coolant Temp.

(e) Read the Coolant Temp twice, when the engine is both cold and warmed up.

Standard:

With cold engine
Same as ambient air temperature.

With warm engine
Between 75°C and 95°C (167°F and 203°F).

NG -- REPLACE ENGINE COOLANT TEMPERATURE SENSOR
OK -- Continue to next step.

12. READ VALUE USING TECHSTREAM (MAF)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Powertrain / Engine and ECT / Data List / MAF and Coolant Temp.

(e) Allow the engine to idle until the Coolant Temp reaches 75°C (167°F) or more.

(f) Read the MAF with the engine in an idling condition and at an engine speed of 2500 rpm.

Standard:

MAF while engine idling
Between 3.3 gm/sec. and 5.3 gm/sec. (shift position: P; A/C: off).

MAF at an engine speed of 2500 rpm (Depress accelerator pedal fully)
Between 10 gm/sec. and 16 gm/sec. (shift position: P; A/C: off).

NG -- REPLACE MASS AIR FLOW METER
OK -- Continue to next step.

13. CHECK VALVE TIMING P0011

NG -- ADJUST VALVE TIMING

OK -- REPLACE ECM Removal

14. CHECK FUEL PRESSURE (LOW PRESSURE SIDE)

(a) Check the fuel pressure (low pressure side) Testing and Inspection.

OK -- REPLACE FUEL INJECTOR FOR PORT INJECTION
NG -- Continue to next step.

15. CHECK FUEL PUMP OPERATION

(a) Check the fuel pump operation Testing and Inspection.

OK -- CHECK AND REPLACE FUEL SYSTEM (PRESSURE REGULATOR, PIPE LINE AND FILTER)

NG -- REPLACE FUEL PUMP

16. CHECK MISFIRE COUNT OF DIRECT INJECTION (CYLINDER #1, #2, #3, #4, #5 AND #6 MISFIRE COUNT)

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Clear DTCs DTC Check / Clear.

(e) Enter the following menus: Powertrain / Engine and ECT / Active Test / Control the Injection Way / Direct. (Procedure "A")

(f) Allow the engine to idle.

(g) Monitor all of the misfire count values that are displayed on the Techstream: Powertrain / Engine and ECT / Data List / Misfire / Cylinder #1 Misfire Count to Cylinder #6 Misfire Count.

If no misfire counts occur for any of the cylinders, perform the following procedure: (Procedure "B")

(1) Move the shift lever to D.

(2) Repeat procedure "A" to "B" above.

(3) Monitor all of the misfire count values that are displayed on the Techstream.

Result:





B -- CHECK MISFIRE COUNT

A -- REPLACE FUEL INJECTOR FOR DIRECT INJECTION (MISFIRING CYLINDER)

17. CHECK MISFIRE COUNT

(a) Put the engine in inspection mode Inspection Mode Procedure.

(b) Connect the Techstream to the DLC3.

(c) Turn the Techstream on.

(d) Clear DTCs DTC Check / Clear.

(e) Enter the following menus: Powertrain / Engine and ECT / Data List / Misfire RPM, Misfire Load, Cylinder #1 to #6 Misfire Count and Injection Way.

(f) Drive the vehicle with Misfire RPM and Misfire Load.

(g) Monitor all of the misfire count values or DTCs and Injection Way displayed on the Techstream.

Result:





D -- REPLACE FUEL PRESSURE FOR DIRECT INJECTION (MALFUNCTION CYLINDER INJECTOR)

C -- CHECK AIR INDUCTION SYSTEM

B -- CHECK SPARK PLUG

A -- CHECK FOR INTERMITTENT PROBLEMS
