P0345

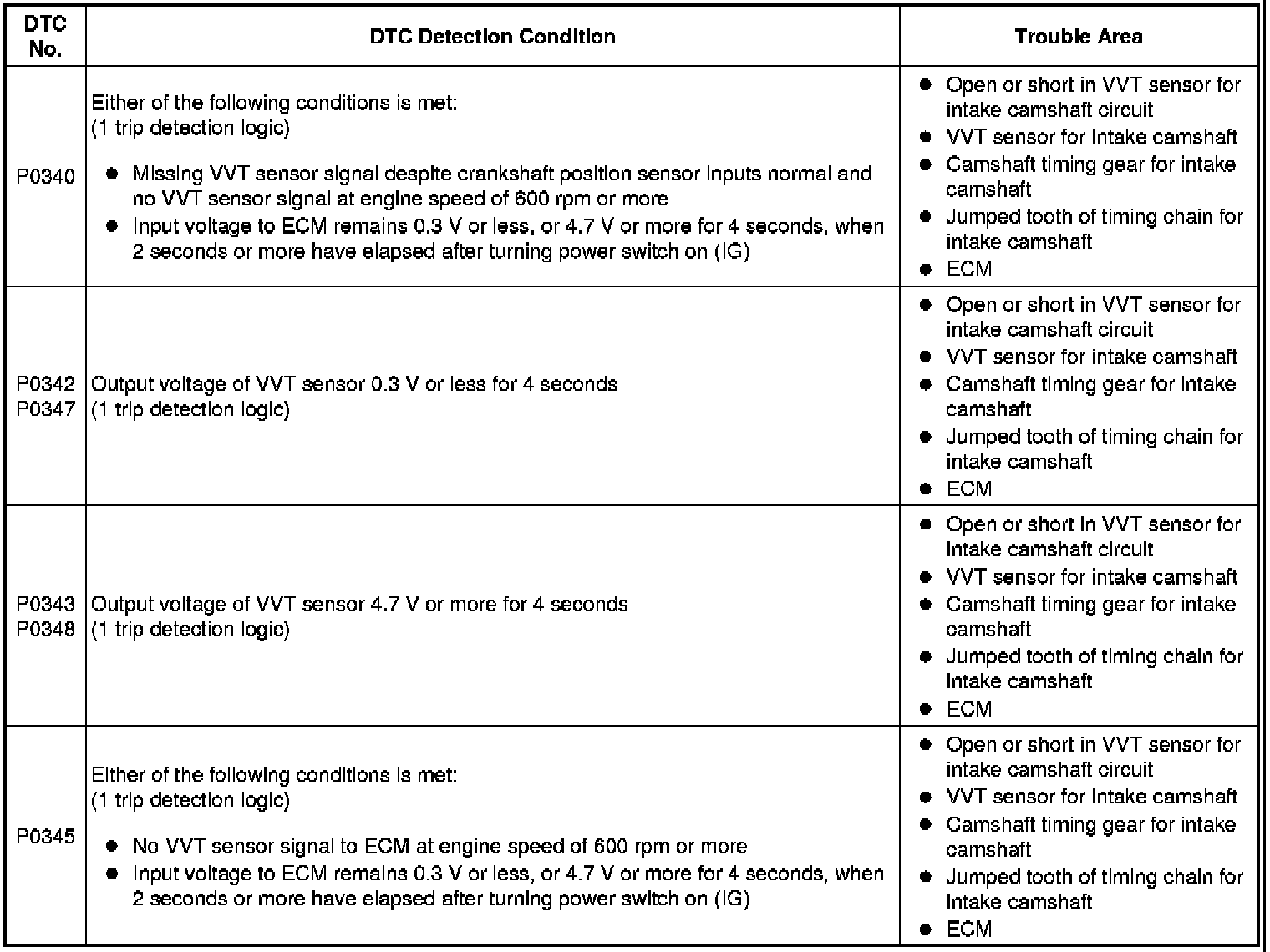

2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P0340,P0342,P0343,P0345,P0347,P0348: Camshaft Position Sensor Circuit Malfunction
DESCRIPTION
The intake camshaft's Variable Valve Timing (VVT) sensor (VV1, 2 signal) consists of a magnet and MRE (Magnet Resistance Element).
The VVT camshaft drive gear has a sensor plate with 3 teeth on its outer circumference. When the gear rotates, changes occur in the air gaps between the sensor plate and MRE, which affects the magnetic field. As a result, the resistance of the MRE material fluctuates. The VVT sensor converts the gear rotation data to pulse signals, uses the pulse signals to determine the camshaft angle, and sends it to the ECM.
The crankshaft angle sensor plate has 34 teeth. The pickup coil generates 34 signals for each engine revolution. Based on the combination of the VVT signals and NE signal, the ECM detects the crankshaft angle. Then the ECM uses this data to control fuel injection time and injection timing. Also, based on the NE signal, the ECM detects the engine speed.

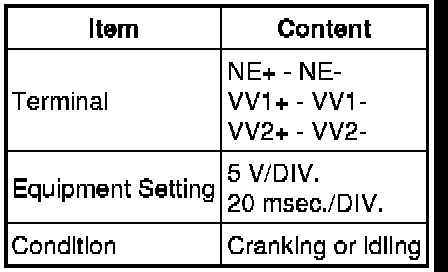

- Reference: Inspection using an oscilloscope
HINT

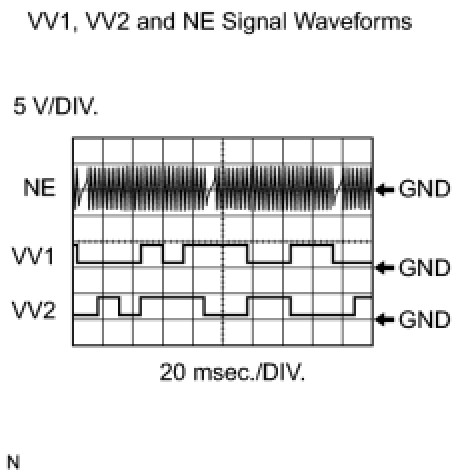

- The correct waveform is as shown.
- VV1+ and VV2+ stand for the VVT sensor signal, and NE+ stands for the CKP sensor signal.
MONITOR DESCRIPTION
If no signal is transmitted by the VVT sensor despite the engine revolving, or the rotations of the camshaft and the crankshaft are not synchronized, the ECM interprets this as a malfunction of the sensor.

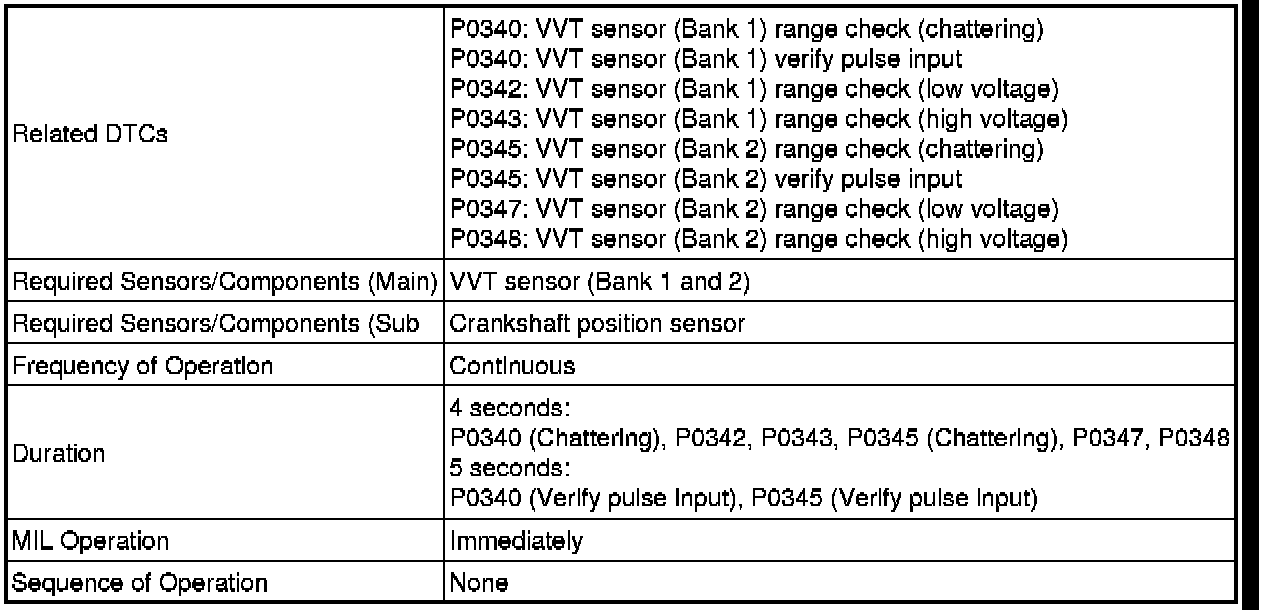

MONITOR STRATEGY
TYPICAL ENABLING CONDITIONS
All:

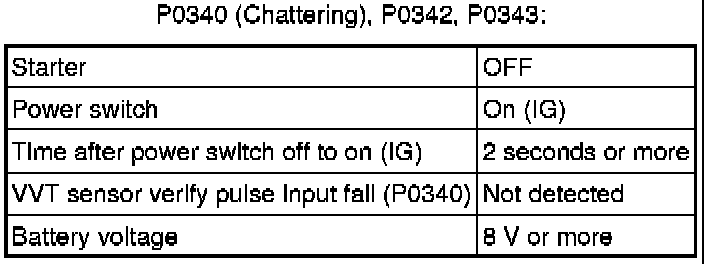

P0340 (Chattering), P0342, P0343:

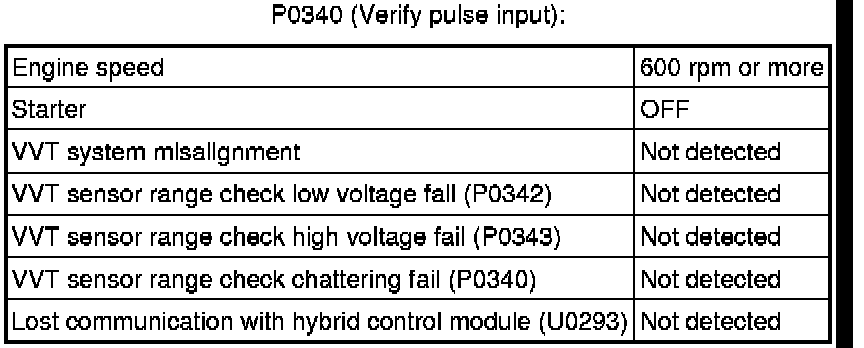

P0340 (Verify pulse input):

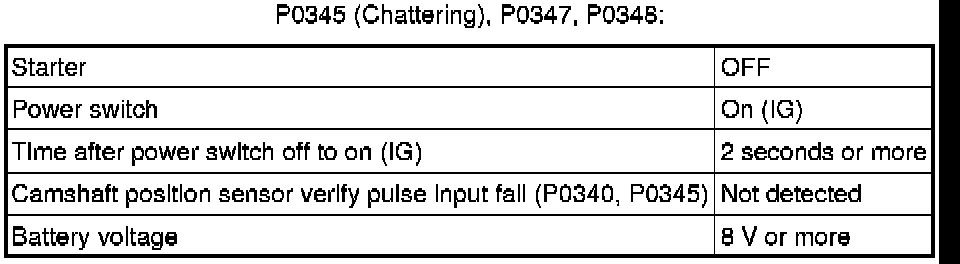

P0345 (Chattering), P0347, P0348:

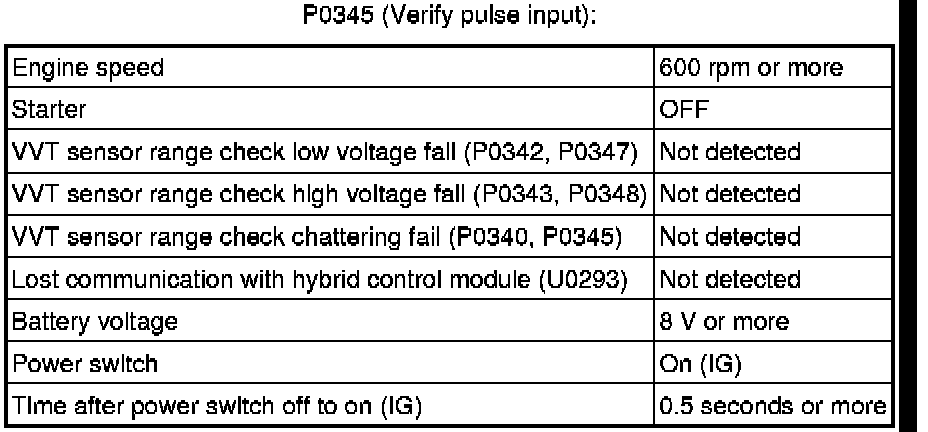

P0345 (Verify pulse input):
TYPICAL MALFUNCTION THRESHOLDS

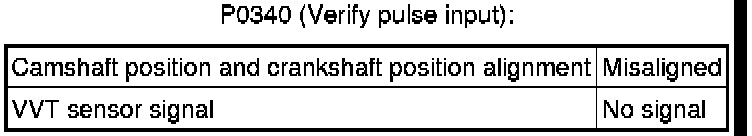

P0340 (Verify pulse input):
P0340 (Chattering):
P0342 (Low voltage):
P0343 (High voltage):
P0345 (Verify pulse input):
P0345 (Chattering):
P0347 (Low voltage):
P0348 (High voltage):
COMPONENT OPERATING RANGE
WIRING DIAGRAM
Refer to DTC P0335 P0335.
INSPECTION PROCEDURE
HINT
Read freeze frame data using the Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air-fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction Freeze Frame Data.
PROCEDURE
1. CHECK HARNESS AND CONNECTOR (SENSOR POWER SOURCE)
(a) Disconnect the E50 or E60 VVT sensor connector.
(b) Measure the voltage between the terminal of the VVT sensor connector and body ground.

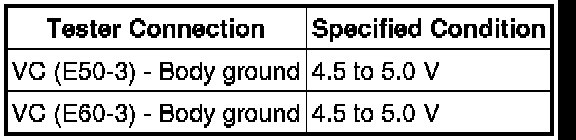

Standard voltage:
(c) Reconnect the VVT sensor connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (VVT SENSOR FOR INTAKE CAMSHAFT - ECM)
(a) Disconnect the E50 or E60 VVT sensor connector.
(b) Disconnect the E83 ECM connector.
(c) Measure the resistance.

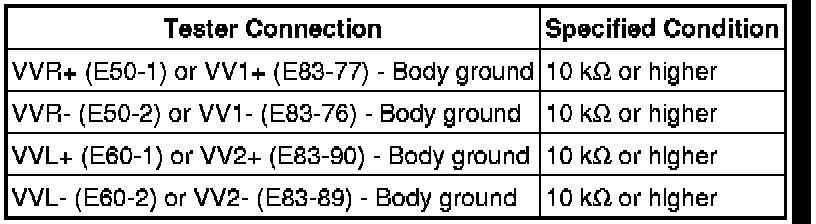

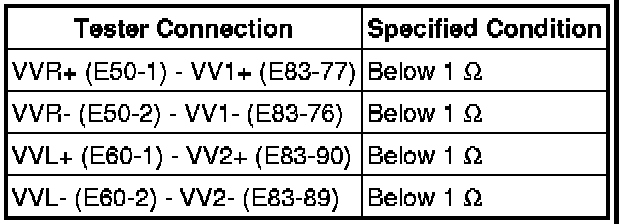

Standard resistance (Check for open):
Standard resistance (Check for short):
(d) Reconnect the VVT sensor connector.
(e) Reconnect the ECM connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. CHECK SENSOR INSTALLATION (VVT SENSOR FOR INTAKE CAMSHAFT)
(a) Check the CKP sensor installation.

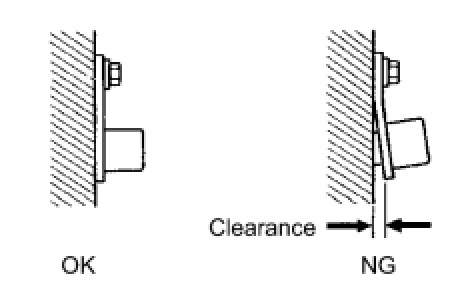

OK:
Sensor is installed correctly.
NG -- SECURELY REINSTALL SENSOR
OK -- Continue to next step.
4. CHECK CAMSHAFT TIMING GEAR ASSEMBLY (TEETH OF PLATE)
(a) Check the teeth of the sensor plate.
OK:
Sensor plate teeth do not have any cracks or deformation.
NG -- REPLACE CAMSHAFT TIMING GEAR ASSEMBLY
OK -- Continue to next step.
5. REPLACE VVT SENSOR
NEXT -- Continue to next step.
6. CHECK WHETHER DTC OUTPUT RECURS
(a) Clear the DTCs DTC Check / Clear.
(b) Put the engine in inspection mode Inspection Mode Procedure.
(c) Connect the Techstream to the DLC3.
(d) Turn the Techstream on.
(e) Enter the following menus: Powertrain / Engine and ECT / Trouble Codes / Pending.
(f) Read the DTCs.

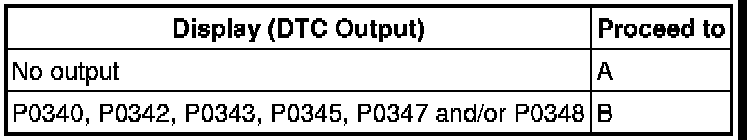

Result:
HINT
If the engine does not start, replace the ECM.
B -- REPLACE ECM Removal
A -- END
