P0A78-282 - Drive Motor "A" Inverter Performance

L110 HYBRID VEHICLE CONTROL: HYBRID CONTROL SYSTEM: P0A78-282: Drive Motor "A" Inverter Performance
P0A78-282 - Drive Motor "A" Inverter Performance

DESCRIPTION

For a description of the inverter, P0A78.





MONITOR DESCRIPTION

If the motor inverter detects a circuit malfunction, it transmits a motor inverter overvoltage signal to the MG ECU. Upon receiving this signal, the hybrid vehicle control ECU will illuminate the MIL and set a DTC.

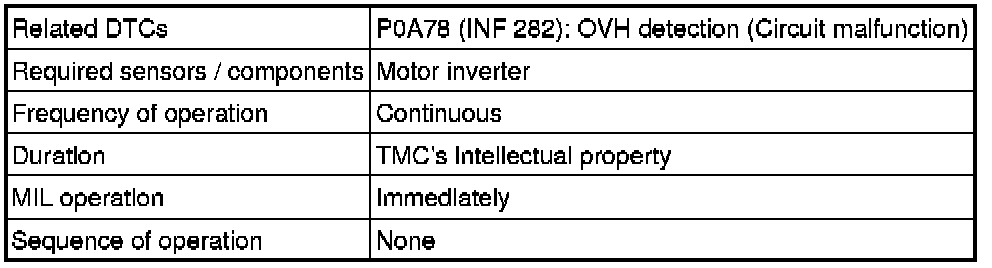

MONITOR STRATEGY





TYPICAL ENABLING CONDITIONS





TYPICAL MALFUNCTION THRESHOLDS





COMPONENT OPERATING RANGE





INSPECTION PROCEDURE

CAUTION:
- Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
- After disconnecting the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting, check the voltage at the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
HINT
Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

PROCEDURE

1. CHECK CONNECTOR CONNECTION CONDITION (INVERTER WITH CONVERTER ASSEMBLY CONNECTOR)

(a) Check the connection of the low voltage connector of the inverter with converter assembly.





Result:

The connector is connected securely and there are no contact problems.

NG -- CONNECT SECURELY

OK -- REPLACE INVERTER WITH CONVERTER ASSEMBLY
