2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P043E,P043F,P2401,P2402,P2419: Evaporative Emission System Reference Orifice Clog Up

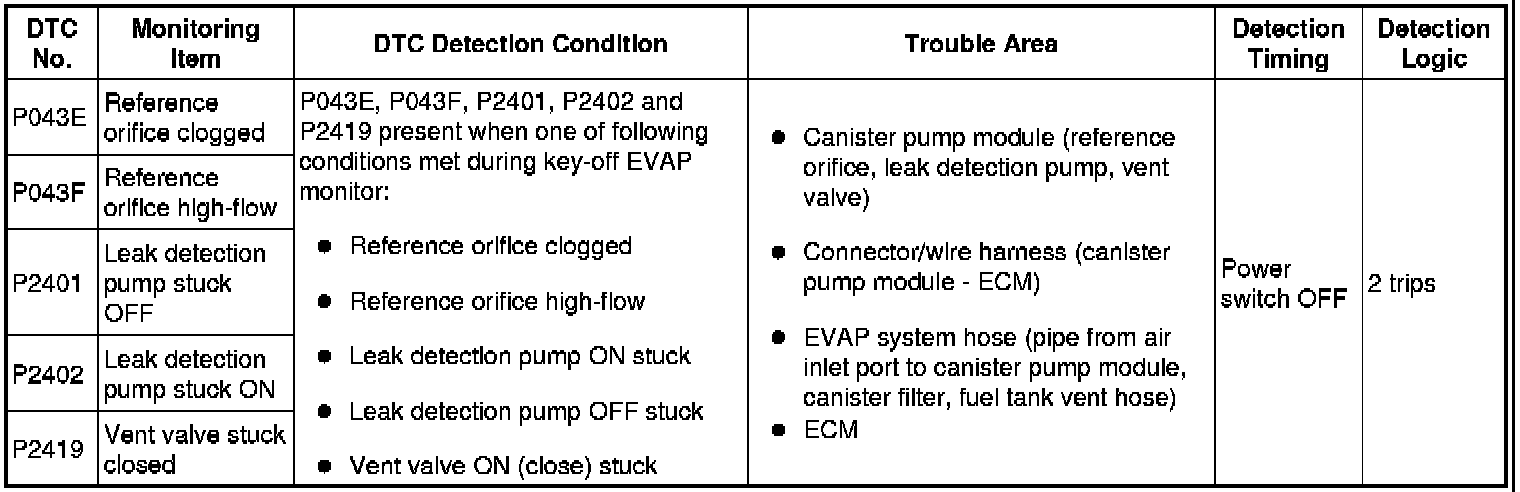

DTC SUMMARY





DESCRIPTION

Refer to the EVAP System EVAP System.

INSPECTION PROCEDURE

Refer to the EVAP System EVAP System.

MONITOR DESCRIPTION

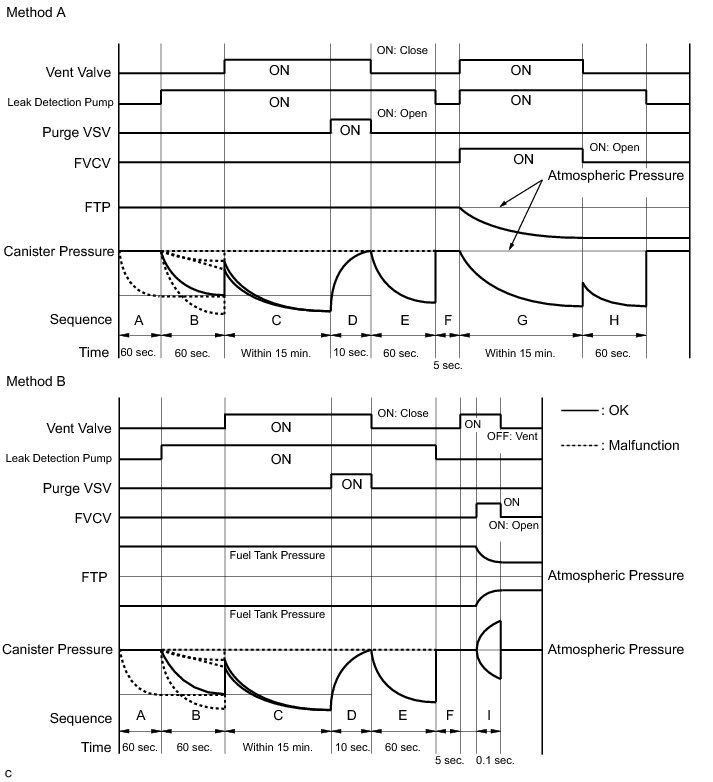

In Sequence B and E, the leak detection pump creates negative pressure (vacuum) through the reference orifice. The EVAP system pressure is then measured by the ECM, using the canister pressure sensor, to determine the reference pressure. If the pressure is one of the following conditions, the ECM illuminates the MIL and sets the DTC (2 trip detection logic).

- Canister pressure is lower than the malfunction criterion (ex. 724 mmHg).

- Canister pressure is higher than the malfunction criterion (ex. 752 mmHg).

- Canister pressure is not saturated within 60 seconds.

- Canister pressure difference of sequence B and sequence E is large.

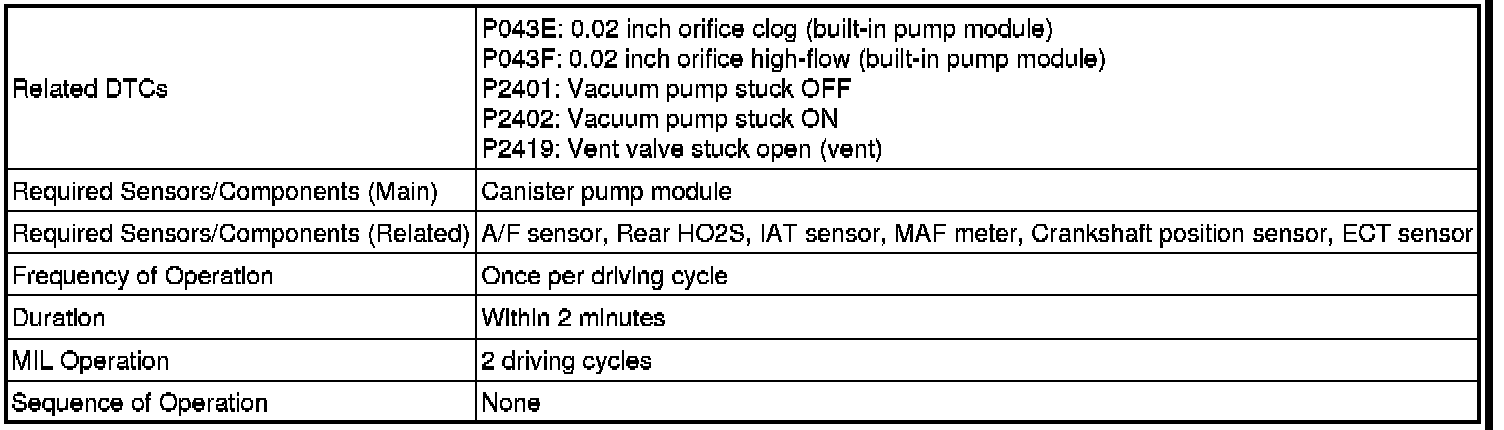

MONITOR STRATEGY

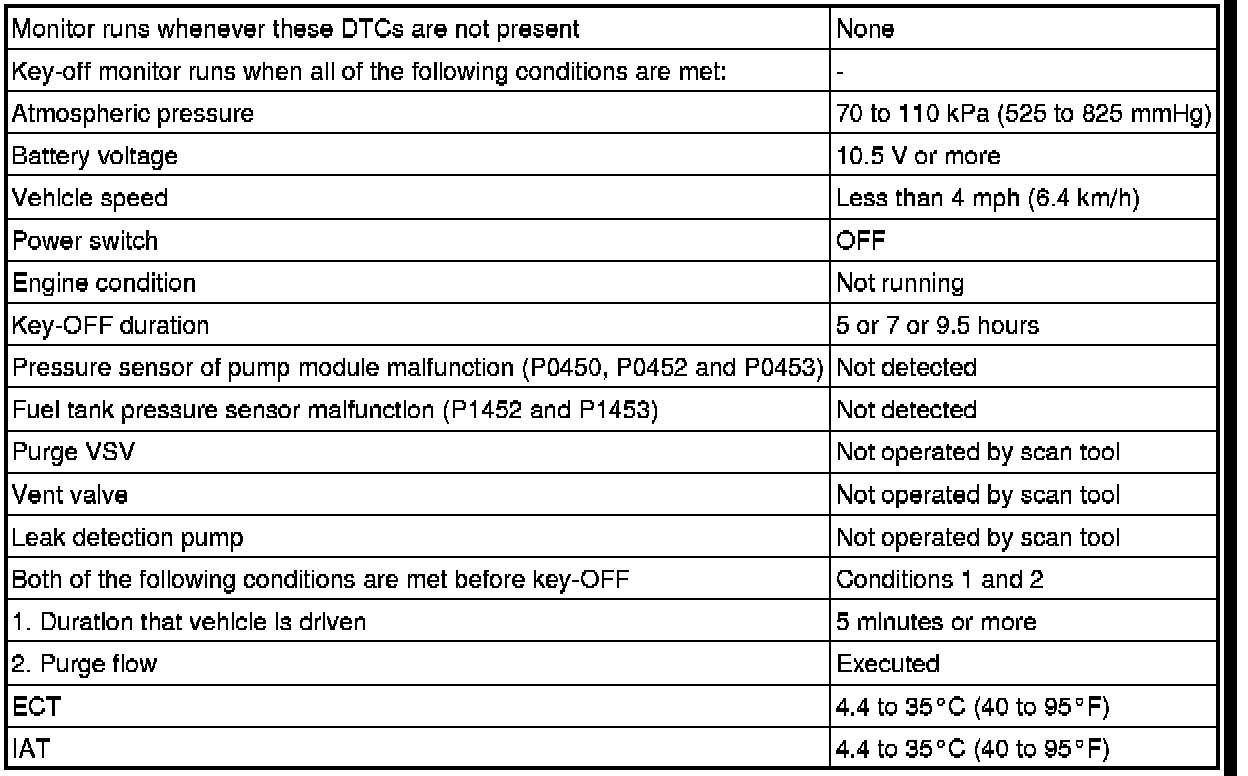

TYPICAL ENABLING CONDITIONS





Key-off monitor sequence 1 to 15

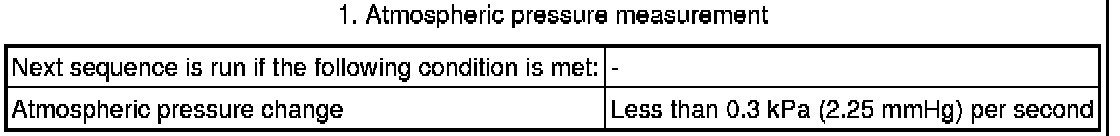

1. Atmospheric pressure measurement

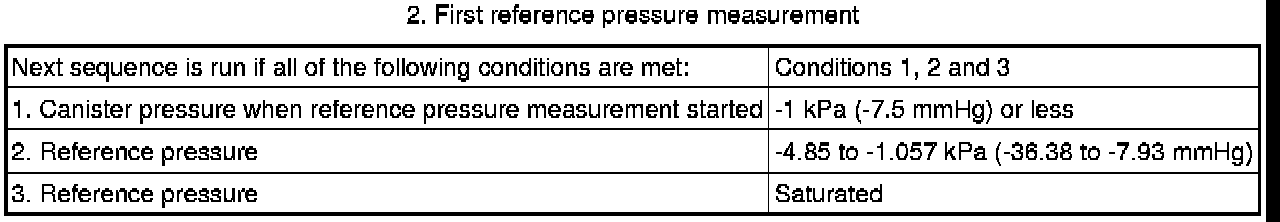

2. First reference pressure measurement

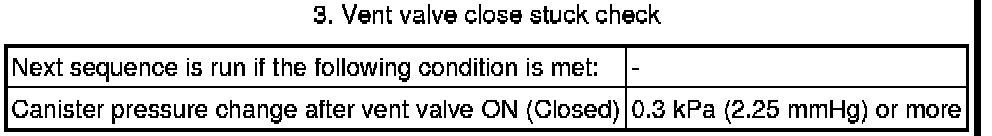

3. Vent valve close stuck check

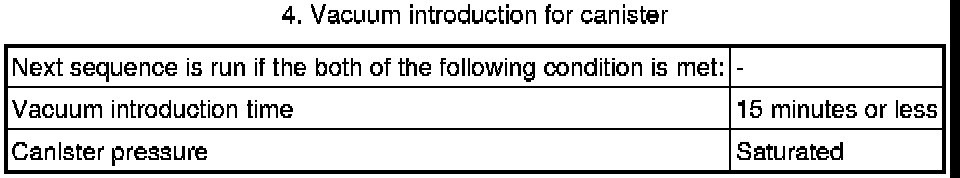

4. Vacuum introduction for canister

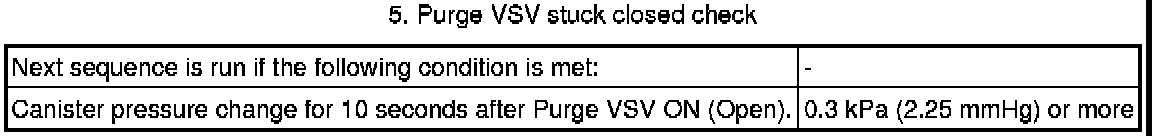

5. Purge VSV stuck closed check

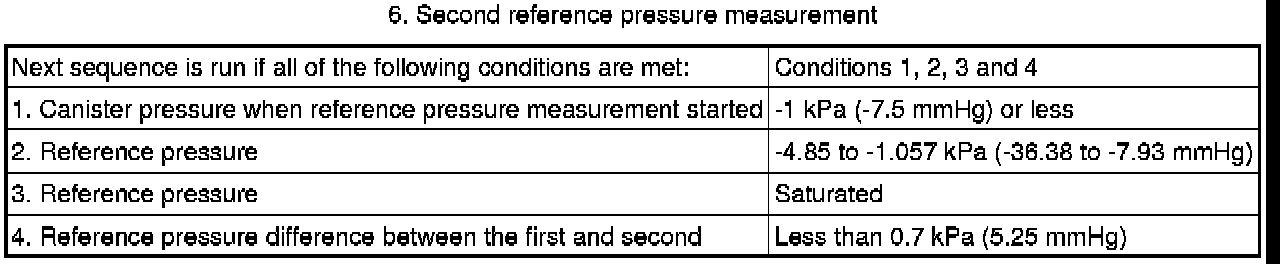

6. Second reference pressure measurement





7. Canister leak check

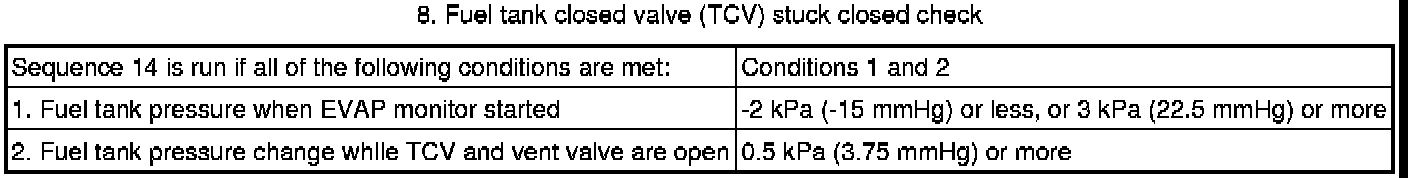

8. Fuel tank closed valve (TCV) stuck closed check

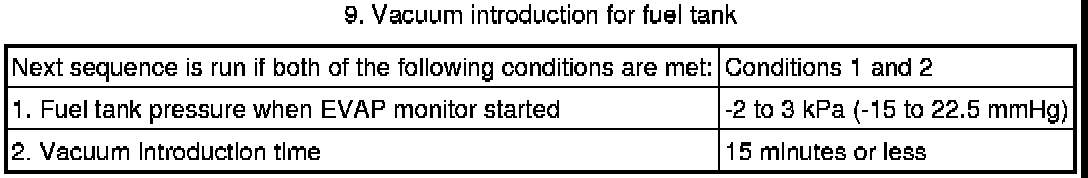

9. Vacuum introduction for fuel tank

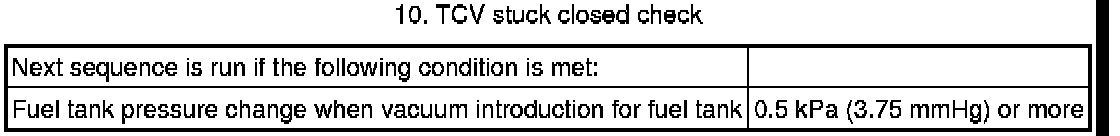

10. TCV stuck closed check

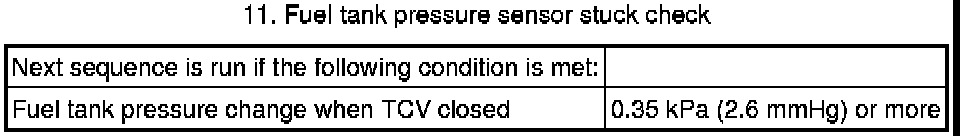

11. Fuel tank pressure sensor stuck check

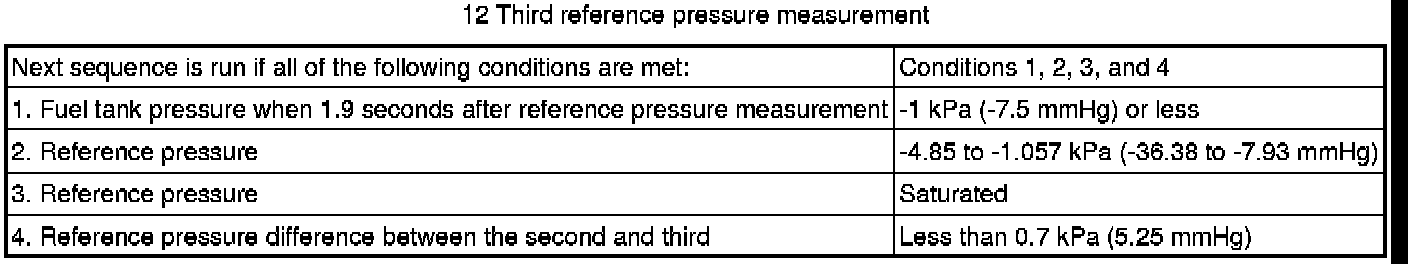

12 Third reference pressure measurement

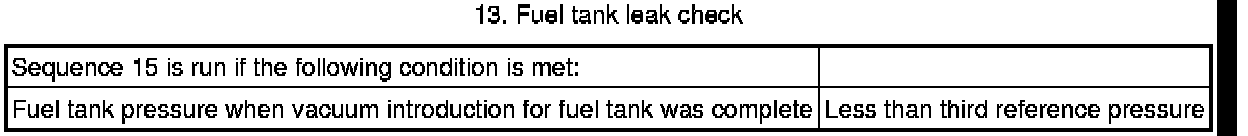

13. Fuel tank leak check





14. Fuel tank pressure sensor stuck check

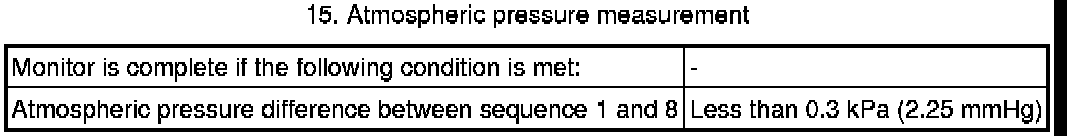

15. Atmospheric pressure measurement

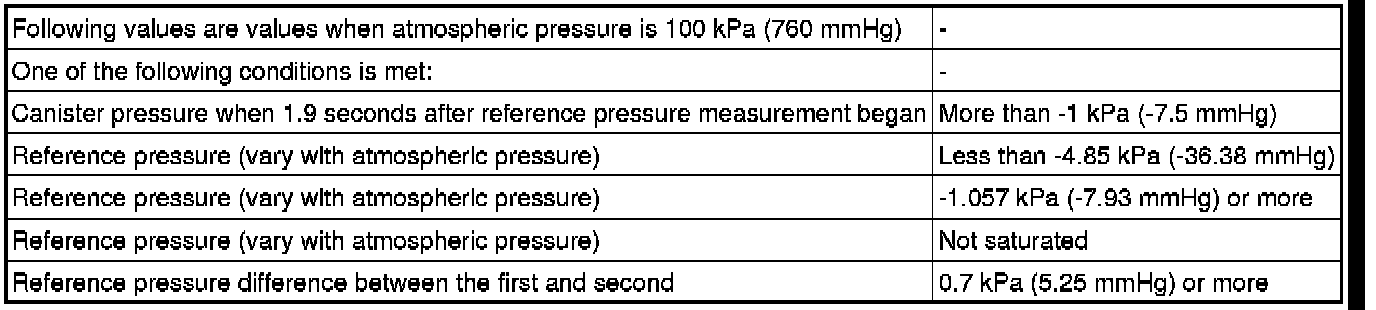

TYPICAL MALFUNCTION THRESHOLDS





MONITOR RESULT

Refer to CHECKING MONITOR STATUS Mode 6 Data.
