2GR-FSE ENGINE CONTROL SYSTEM: SFI SYSTEM: P2420: Evaporative Emission System Switching Valve Control Circuit High
P2420 - Evaporative Emission System Switching Valve Control Circuit High

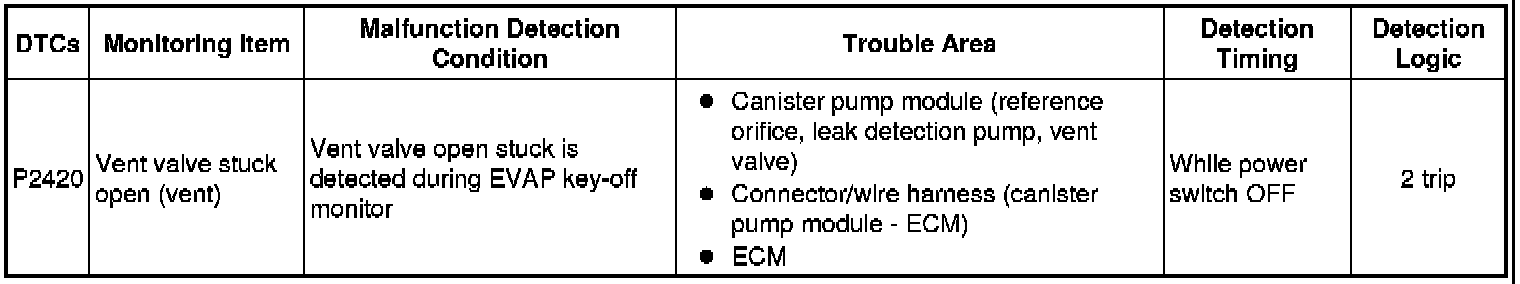

DTC SUMMARY





DESCRIPTION

The description can be found in the EVAP (Evaporative Emission) System EVAP System.

INSPECTION PROCEDURE

Refer to the EVAP System EVAP System.

MONITOR DESCRIPTION

Vent valve stuck open (vent)

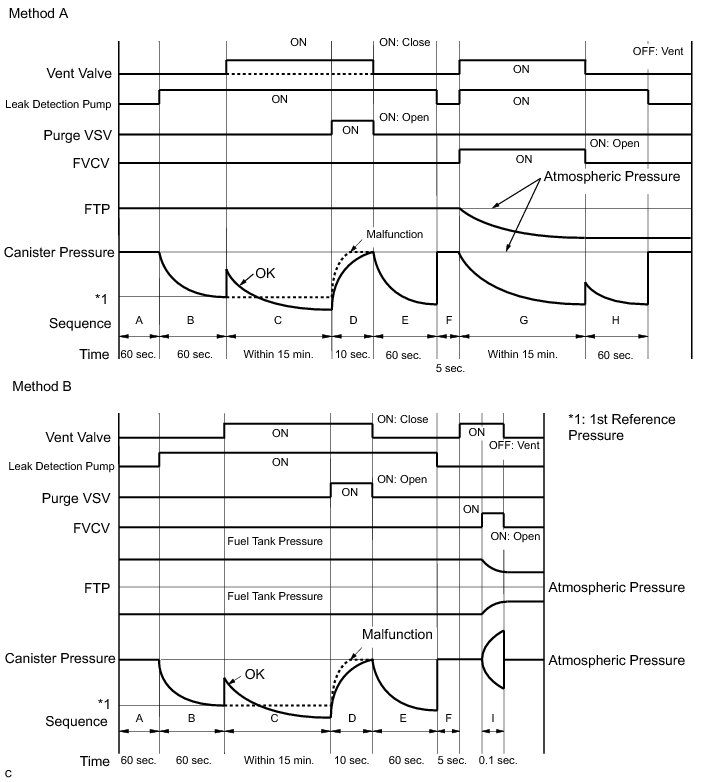

In operation C, the vent valve turns on (closes) and the EVAP system pressure is then measured by the ECM, using the canister pressure sensor, to conduct an EVAP leak check. If the pressure does not increase when the vent valve is open, the ECM interprets this as the vent valve being stuck open. The ECM illuminates the MIL and sets the DTC.

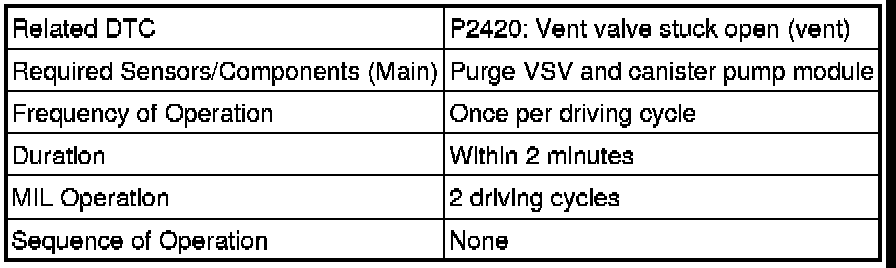

MONITOR STRATEGY

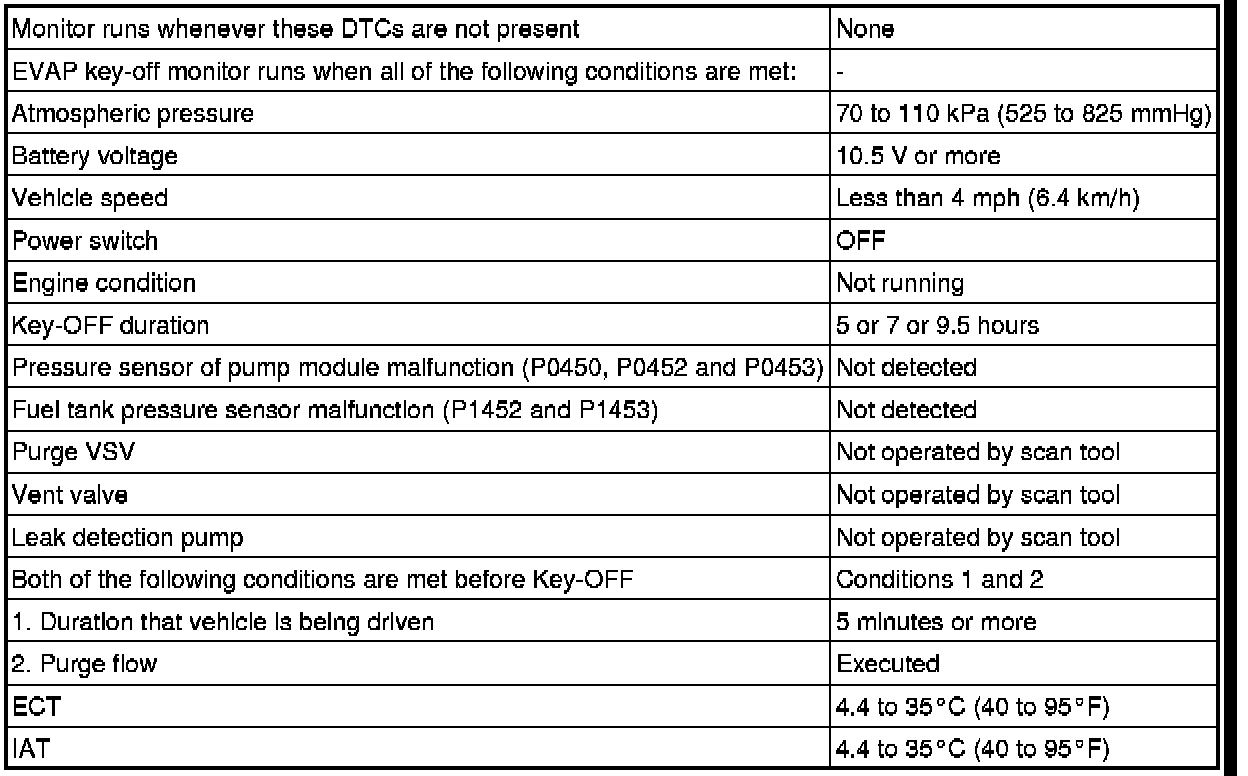

TYPICAL ENABLING CONDITIONS





Key-off monitor sequence 1 to 15

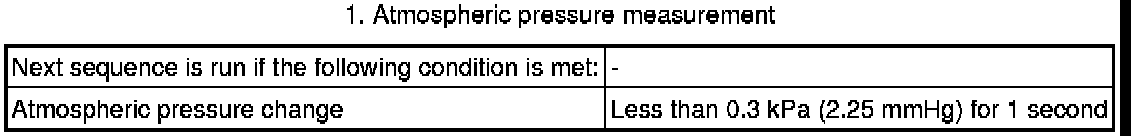

1. Atmospheric pressure measurement

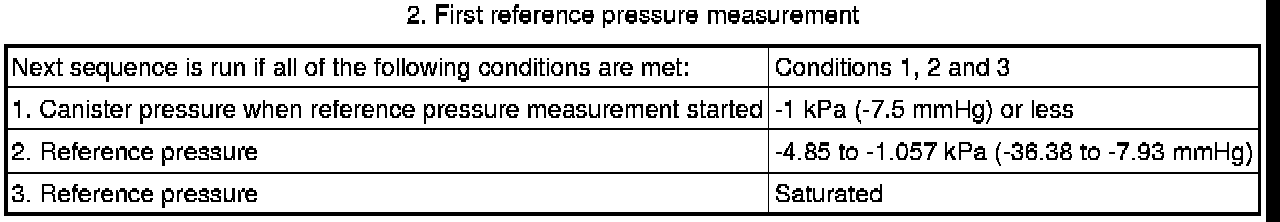

2. First reference pressure measurement

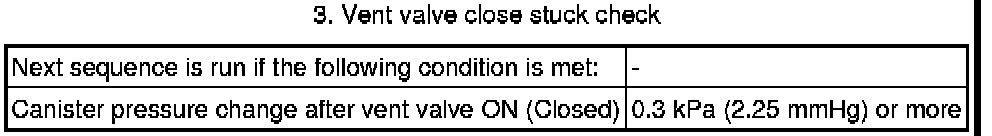

3. Vent valve close stuck check

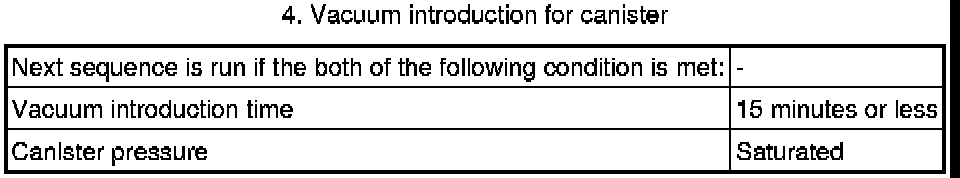

4. Vacuum introduction for canister

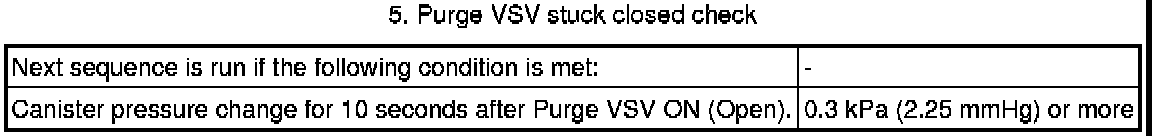

5. Purge VSV stuck closed check

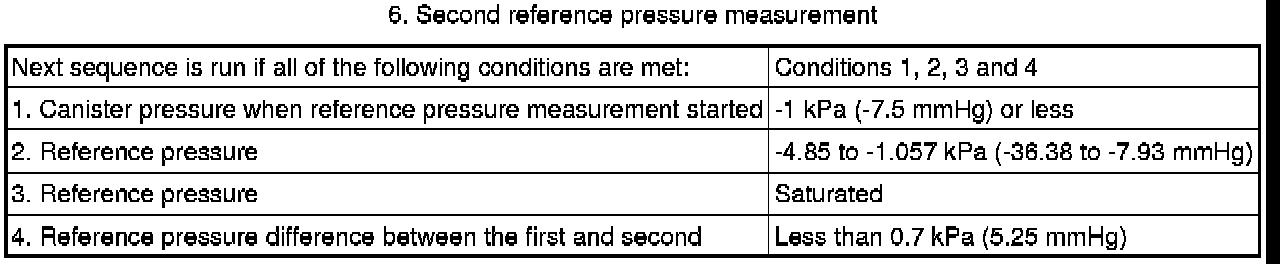

6. Second reference pressure measurement

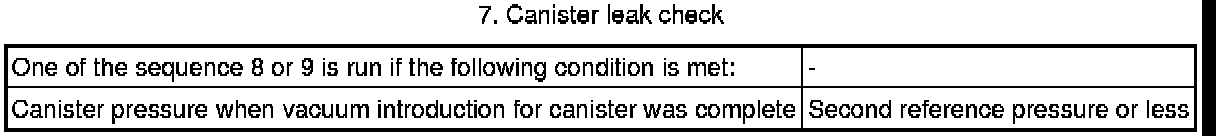

7. Canister leak check

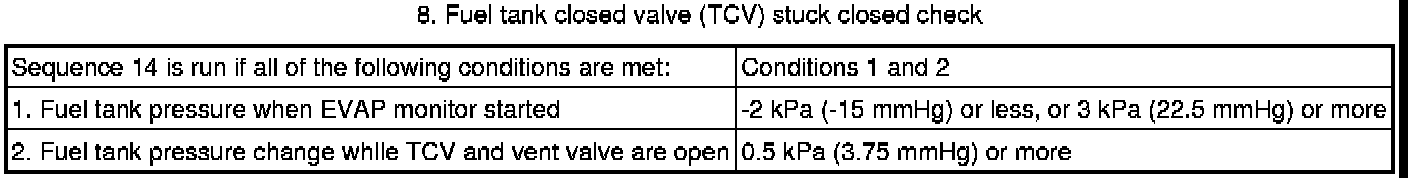

8. Fuel tank closed valve (TCV) stuck closed check

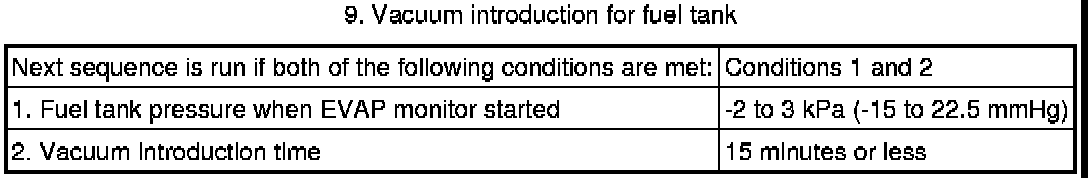

9. Vacuum introduction for fuel tank

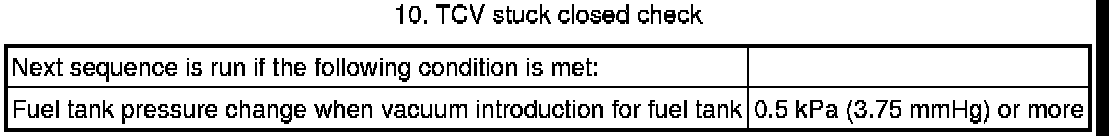

10. TCV stuck closed check

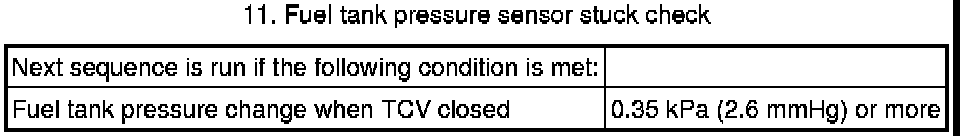

11. Fuel tank pressure sensor stuck check

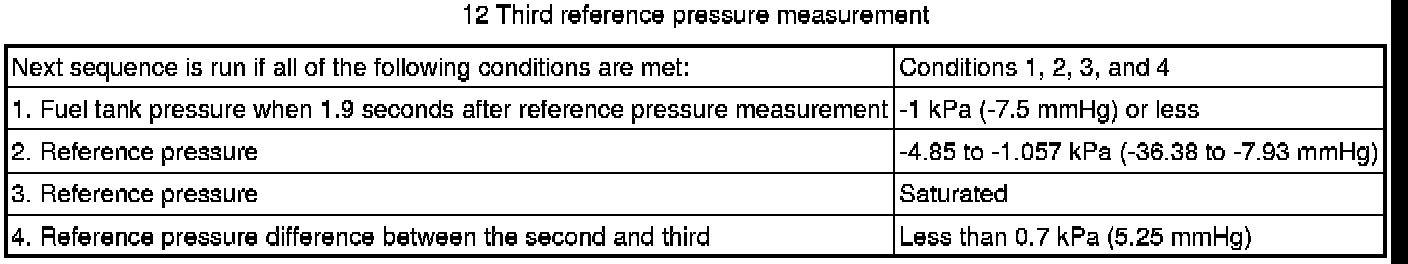

12 Third reference pressure measurement

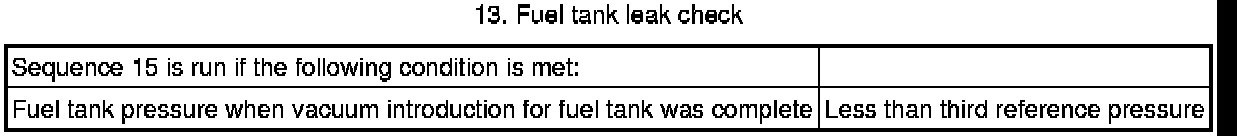

13. Fuel tank leak check

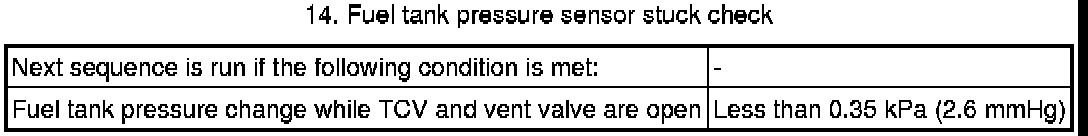

14. Fuel tank pressure sensor stuck check

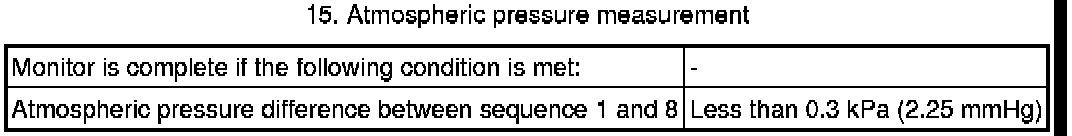

15. Atmospheric pressure measurement





TYPICAL MALFUNCTION THRESHOLDS





MONITOR RESULT

Refer to CHECKING MONITOR STATUS Mode 6 Data.
