Navigation System (for DVD)

NAVIGATION: NAVIGATION SYSTEM (for DVD): TERMINALS OF ECU

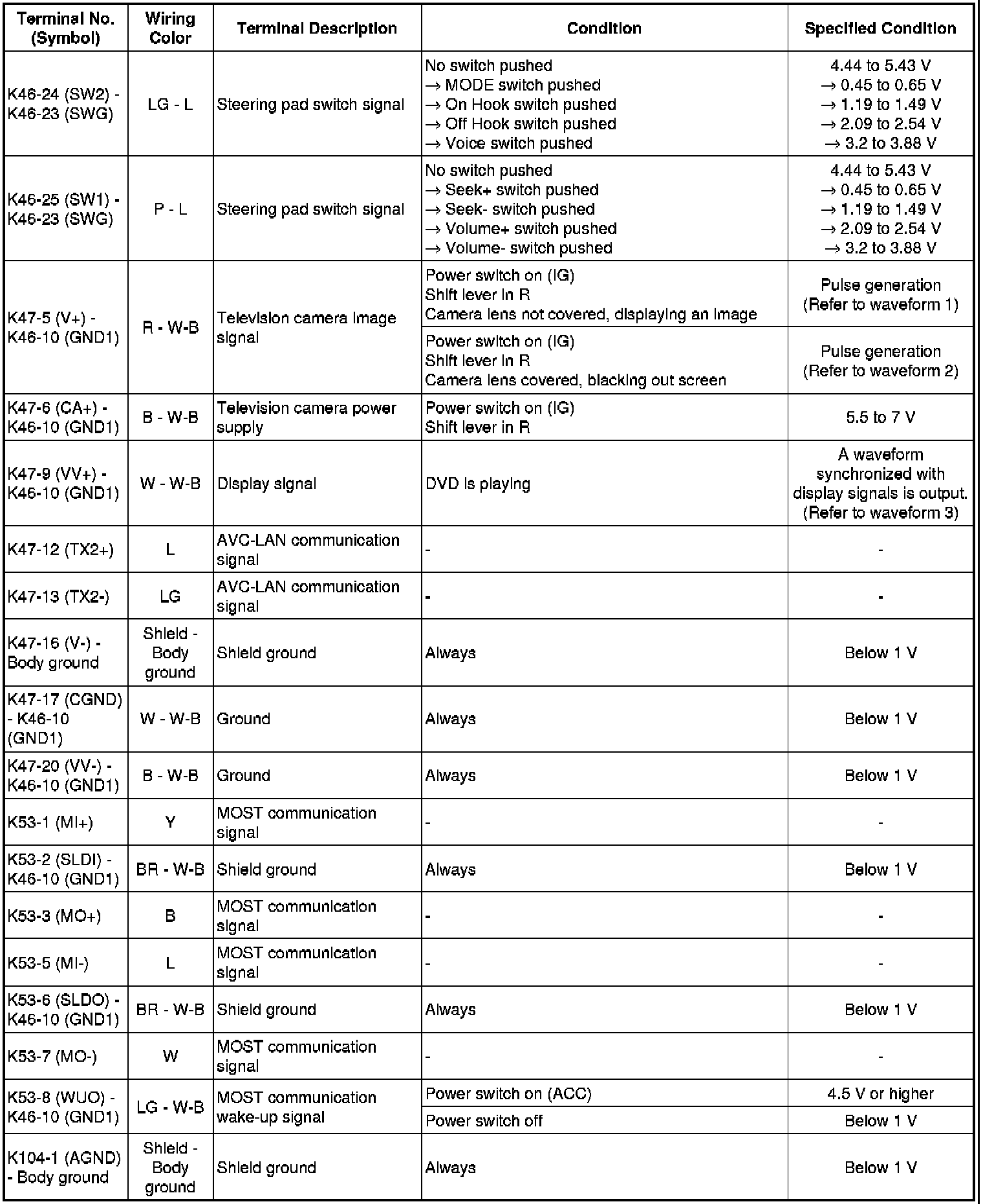

1. DISPLAY AND NAVIGATION MODULE DISPLAY

















(a) Reference (Oscilloscope waveform):





(1) Waveform 1 (camera lens not covered, displaying an image)





HINT
The video waveform changes according to the image from the television camera assembly.

(2) Waveform 2 (camera lens is covered, blacking out the screen)





HINT
The video waveform changes according to the image that the television camera assembly projects.

(3) Waveform 3









HINT
The video waveform changes according to the image input from the radio receiver assembly to the display and navigation module display, but the synchronization signal does not change.





2. NAVIGATION MODULE BOARD









3. NETWORK GATEWAY ECU









4. RADIO RECEIVER ASSEMBLY Pinout Values and Diagnostic Parameters

5. STEREO COMPONENT AMPLIFIER ASSEMBLY Pinout Values and Diagnostic Parameters

6. MULTI-MEDIA INTERFACE ECU Pinout Values and Diagnostic Parameters
