ABS Warning Light Does Not Come On

BRAKE CONTROL: ELECTRONICALLY CONTROLLED BRAKE SYSTEM: ABS Warning Light does not Come ON
- ABS Warning Light does not Come ON

WIRING DIAGRAM

Refer to ABS Warning Light Remains ON ABS Warning Light Remains On.

INSPECTION PROCEDURE

NOTICE:
When replacing the skid control ECU, perform initialization of linear solenoid valve and calibration Initialization.

PROCEDURE

1. INSPECT CAN COMMUNICATION SYSTEM

(a) Check if the CAN communication system DTC is output Problem Symptoms Table.

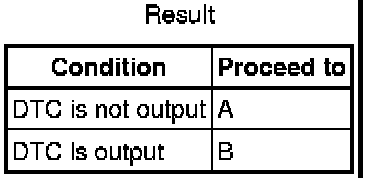

Result





B -- REPAIR CAN COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

2. INSPECT MULTIPLEX COMMUNICATION SYSTEM

(a) Check if the multiplex communication system DTC is output Diagnosis System.

Result





B -- REPAIR MULTIPLEX COMMUNICATION SYSTEM How to Proceed With Troubleshooting
A -- Continue to next step.

3. INSPECT ABS WARNING LIGHT

(a) Disconnect the skid control ECU connector.

(b) Turn the power switch ON (IG).

(c) Check that the ABS warning light comes on.

OK:

ABS warning light comes on.

HINT
If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE", refer back to the table and proceed to the next step before replacing the part Problem Symptoms Table.

NG -- INSPECT COMBINATION METER ASSEMBLY

OK -- REPLACE SKID CONTROL ECU Removal

4. INSPECT COMBINATION METER ASSEMBLY

(a) Check the combination meter Problem Symptoms Table.

HINT
If troubleshooting has been carried out according to the "PROBLEM SYMPTOMS TABLE", refer back to the table and proceed to the next step Problem Symptoms Table.

NG -- REPLACE COMBINATION METER ASSEMBLY Removal

OK -- END
