DESCRIPTION

This circuit provides power to the millimeter wave radar sensor. The millimeter wave radar sensor emits radio waves towards an object in front and measures the distance and direction of the object by receiving the beam reflections. Based on the reflections, the sensor calculates the difference in speed between the vehicle and the object in front. This data is transmitted to the distance control ECU.

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

1. CHECK DISTANCE CONTROL ECU (IGB VOLTAGE SIGNAL)

(a) Disconnect the millimeter wave radar sensor connector.

(b) Measure the voltage according to the value(s) in the table below.

Standard voltage:

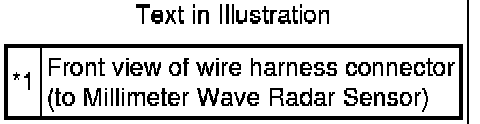

Text in Illustration

(c) Reconnect the millimeter wave radar sensor connector.

NG -- CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR - DISTANCE CONTROL ECU)
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR - HYBRID VEHICLE CONTROL ECU)

(a) Disconnect the millimeter wave radar sensor connector.

(b) Disconnect the hybrid vehicle control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

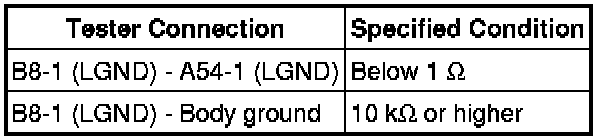

Standard resistance:

(d) Reconnect the millimeter wave radar sensor connector.

(e) Reconnect the hybrid vehicle control ECU connector.

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR (MILLIMETER WAVE RADAR SENSOR - HYBRID VEHICLE CONTROL ECU)

OK -- PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Dynamic Radar Cruise Control System

3. CHECK HARNESS AND CONNECTOR (MILLIMETER WAVE RADAR SENSOR - DISTANCE CONTROL ECU)

(a) Disconnect the millimeter wave radar sensor connector.

(b) Disconnect the hybrid vehicle control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

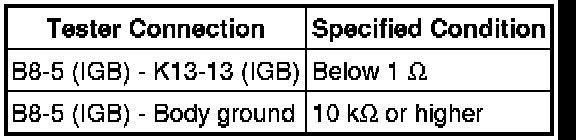

Standard resistance:
